The Replacement Unit is: PR2200RT2U

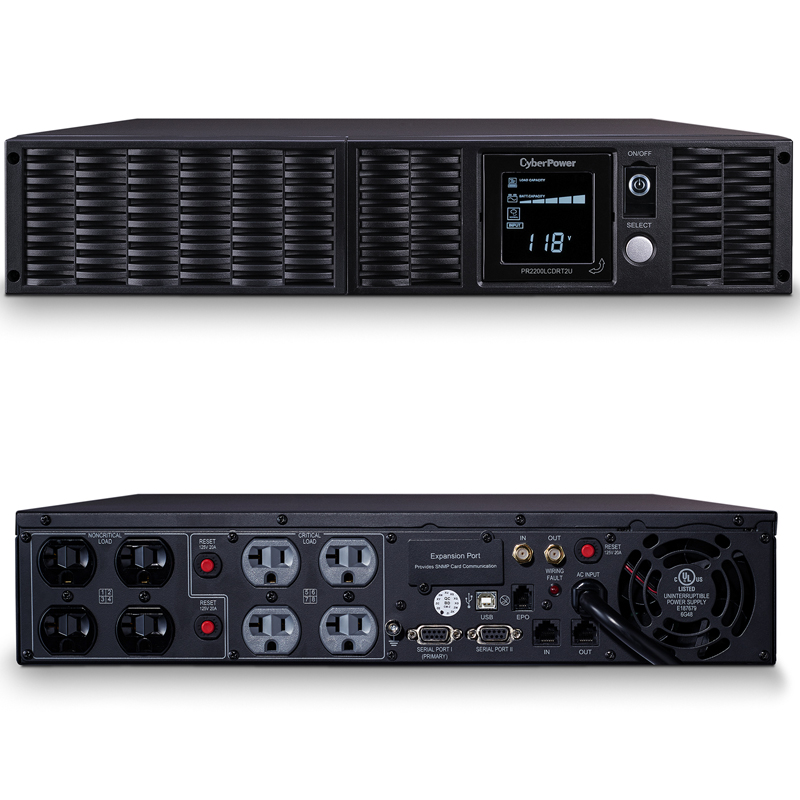

The CyberPower Smart App Sinewave PR2200LCDRT2U uninterruptible power supply (UPS) with LCD panel and sine wave output is Active PFC compatible for safeguarding mission-critical servers, telecom equipment, and VoIP and internetworking hardware that require seamless pure sine wave power.
This UPS unit incorporates microprocessor -based digital control and includes PowerPanel Business Edition Software providing the user unsurpassed flexibility and control.
A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $400,000 Connected Equipment Guarantee.
Typical Applications
- Servers
- Workstations
- Network Devices
- Telecom Equipment
Features
- 2150VA / 1980W
- Line Interactive Topology
- Full AVR Buck/Boost
- GreenPower UPS
- 2U Rack Mount / Tower Convertible
- Multifunction Rotatable LCD
- SNMP/HTTP Remote Management
- 8 Outlets / USB, Serial, and EPO Ports
- EMI/RFI Filters
- PowerPanel Business Software
- 3-Year Warranty
| Battery |
| Battery Quantity |
4 |
| Battery Size |
12V/9Ah |
| Battery Type |
Sealed Lead-Acid |
| Hot-Swappable |
Yes |
| Replacement Battery Cartridge |
RB1290X4F |
| Replacement Battery Cartridge Quantity |
1 |
| Runtime At Full Load |
3 Minutes |
| Runtime At Half Load |
9 Minutes |
| Typical Recharge Time |
Less than 6 hours (90% charged) |
| User Replaceable |
Yes |
| Certifications |
| Environmental |
RoHS Compliant |
| Safety |
UL1778.cUL 107.1.FCC DOC Class B |
| Environmental |
| Maximum Operating Elevation |
10,000 ft (3,000 m) |
| Maximum Storage Elevation |
50,000 ft (15,000 m) |
| Operating Humidity |
0 |
| Operating Temperature |
32 |
| Storage Temperature |
5 |
| General |
| Energy Saving |
GreenPower UPS Bypass |
| UPS Topology |
Line Interactive |
| Input |
| Cord Length |
10 ft |
| Frequency Range |
47 |
| Plug Style |
Right Angle, 0.Deg Offset |
| Plug Type |
NEMA 5-20P |
| Voltage |
80 |
| Management & Communications |
| AS400 Management |
None |
| Audible Alarms |
On Battery.Low Battery.Overload |
| Emergency Power Off (EPO) Port |
Yes |
| HID Compliant USB Port |
Yes |
| Led Indicators |
Power On.Wiring Fault |
| Multifunction LCD Panel |
Displays |
| Serial Port |
Yes (2x) |
| SNMP / HTTP Remote Monitoring |
Yes, with optional RMCARD205 |
| Software |
PowerPanel Business Edition |
| Output |
| Automatic Voltage Regulation |
Boost 1 +30%, Boost 2 +14% / Buck -12% |
| On Battery Frequency |
50/60 Hz |
| On Battery Voltage |
120 VAC |
| On Battery Waveform |
Sine Wave |
| Outlet Type |
NEMA 5-20R |
| Overload Protection |
Internal Circuitry Limiting.Circuit Breaker |
| Transfer Time |
4 ms |
| VA |
2,150 VA |
| Watts |
1,980 W |
| Physical |
| Form Factor |
Rack/Tower |
| Rack Size |
2U |
| Weight (lbs) |
58.0 lbs |
| Surge Protection & Filtering |
| Coaxial Protection RG6 |
1-In, 1-Out |
| EMI/RFI Filtration |
Yes |
| Phone RJ11 / Ethernet RJ45 |
1-In, 1-Out (Combo) |
| Surge Suppression |
2,060 J |
| Warranty |
| CEG Amount |
400000 |
| Connected Equipment Guarantee |
Lifetime |
| Product Warranty |
3 Years Limited |
