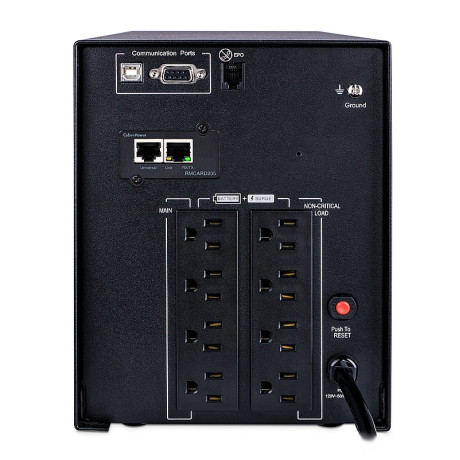

The CyberPower PR1500LCDN is a high-performance 1500VA / 1050 W line-interactive UPS engineered to safeguard workstations, networking devices, and home entertainment systems from power disruptions. This unit features a compact tower design with eight NEMA 5-15R outlets, ensuring reliable connectivity for essential electronics. Equipped with Automatic Voltage Regulation (AVR), it stabilizes incoming AC signals to provide consistent power without depleting the battery. The PR1500LCDN includes a robust 12-foot NEMA 5-15P input power cord and offers surge protection of 1030 joules, making it an essential component for maintaining power quality and equipment safety.
The intuitive multifunction LCD panel displays real-time system vitals and alerts, providing users with at-a-glance status updates. For comprehensive management, the PR1500LCDN supports connectivity via USB, serial, and SNMP interfaces, allowing seamless integration into network environments. This UPS is compatible with PowerPanel Business Edition software, offering detailed monitoring and configuration options. Backed by a 3-year limited warranty and a $375,000 Connected Equipment Guarantee, the PR1500LCDN ensures long-term reliability and protection for your critical systems, while its ENERGY STAR certification underscores its energy-efficient operation.
| Battery Features |
| Battery Quantity |
2 |
| Battery Size |
12V / 17 Ah |
| Battery Type |
Sealed Lead-Acid Battery |
| Hot Swappable |
Yes |
| Recharge Time |
3 hours Quick Charge Mode 8 hours Eco Mode |
| Compliance & Warranty |
| CEG Amount |
$375000 |
| RoHS Compliant |
RoHS Compliant |
| Safety |
UL1778 cUL 107.3 FCC DOC Class A |
| Warranty |
3 Year Limited Warranty |
| Electrical Protection Features |
| EMI/RFI Filtration |
Yes |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Surge Protection |
Yes, 1030 J |
| Input Characteristics |
| Frequency Range |
47 Hz 63 Hz |
| Plug Type |
NEMA 5-15P |
| Voltage Range |
78 VAC 149 VAC |
| Interfaces & Monitoring |
| Emergency Power Off (EPO) Port |
Yes |
| HID Compliant USB Port |
Yes |
| LCD Display |
Multifunction LCD |
| Management Software |
PowerPanel Business |
| Serial Port |
1 Serial |
| Outlet Details |
| Outlet Type |
8 NEMA 5-15R |
| Total Number of Outlets |
8 |
| Output Characteristics |
| Battery Frequency |
50/60 Hz 0.1Hz |
| Battery Voltage |
120 VAC 5% |
| Battery Waveform |
Sine Wave |
| Capacity (VA) |
1500VA |
| Capacity (Watts) |
1500 W |
| Physical Properties |
| Actual Dimensions (in) |
6.7 x 8.7 x 17 (in) |
| Actual Weight (lb) |
54 |
| Color |
Black |
| Cord Length |
6 ft (1.8 m) |
| Shipping Dimensions (in) |
12.5 x 14.25 x 22.75 (in) |
| Shipping Weight (lb) |
22.75 |
| Runtime and Battery Maintenance |
| Battery Replaceability |
Yes |
| Full-Load Runtime |
4.7 min |
| Half-Load Runtime |
15.1 min |
| Unit Configuration |
| Energy Efficiency Mode |
GreenPower UPS Bypass Technology |
| Form Factor |
Mini-Tower |
| Model ID |
PR1500LCDN |
| Topology Type |
Line Interactive |
