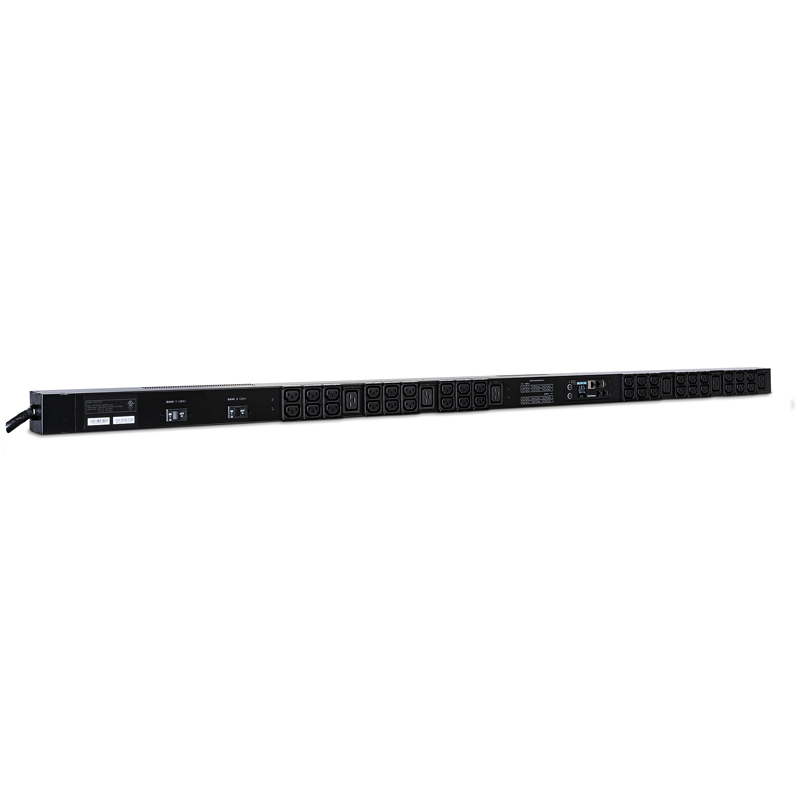

The CyberPower PDU31106, a 42-outlet (front), 0U rackmount monitored power distribution unit (PDU), provides 200-240V 30A output. PDU31106 distributes power to 36 IEC-320 C13 and 6 IEC-320 C19 receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. Monitor power status over the network using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD screen. The PDU31106 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions.
| Certifications |
| Environmental |
RoHS Compliant |
| Safety |
UL 60950-1, FCC Class A |
| Environmental |
| Maximum Operating Elevation |
11,480 ft (3,500 m) |
| Operating Relative Humidity |
0% - 95% Non-condensing |
| Operating Temperature |
32 |
| Input |
| Cord Length |
10 ft |
| Frequency |
50/60 Hz |
| Maximum Current |
30A (derated to 24A) |
| On/Off Switch |
N/A |
| Plug Type |
NEMA L6-30P |
| Voltage |
200 - 240 V |
| Management & Communications |
| Environmental Sensor |
Optional, via RJ45 |
| Modular Expandability (Cascading) |
Yes, via RJ45 |
| Multifunction LCD Screen |
Voltage, Frequency, Load, Current, HW/FW Version, Network information |
| Network Connection |
RJ45 (Ethernet), RJ45 (COM Port) |
| Outlet Switching |
Yes |
| SNMP / HTTP Remote Monitoring |
IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS,Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs,SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD |
| Updateable Firmware |
Yes, via USB or Ethernet |
| Output |
| LED Indicators |
Tx/Rx, LINK, Normal/Warning/Critical Status |
| Meter Readout |
Power Control Display |
| Nominal Output Voltage |
200-240 V |
| Outlet Banks |
2 |
| Outlet Type |
IEC-320 C13 (36) + IEC-320 C19 (6) |
| Outlets - Front |
42 |
| Outlets - Total |
42 |
| Overload Protection (Each Bank) |
2x 20A DP |
| Physical |
| Adjustable Mounting Brackets |
1 set |
| Cord Retention Tray/Cord Organizers |
Yes |
| External Site Ground Pin |
Yes |
| Form Factors Supported |
Vertical Rackmount, Wallmount |
| Rack Size |
0U |
| Standard Form Factor |
0U Rackmount |
| Weight (lbs) |
12.35 |
| Warranty |
| Product Warranty |
3 Years |
