CyberPower PDU30BT8F8R 16-Outlets 1U Rackmount Basic Power Distribution Units

CyberPower PDU30BT8F8R 16-Outlets 1U Rackmount

Use coupon techie for a 5% discount
Download PDF datasheet for detailed product information

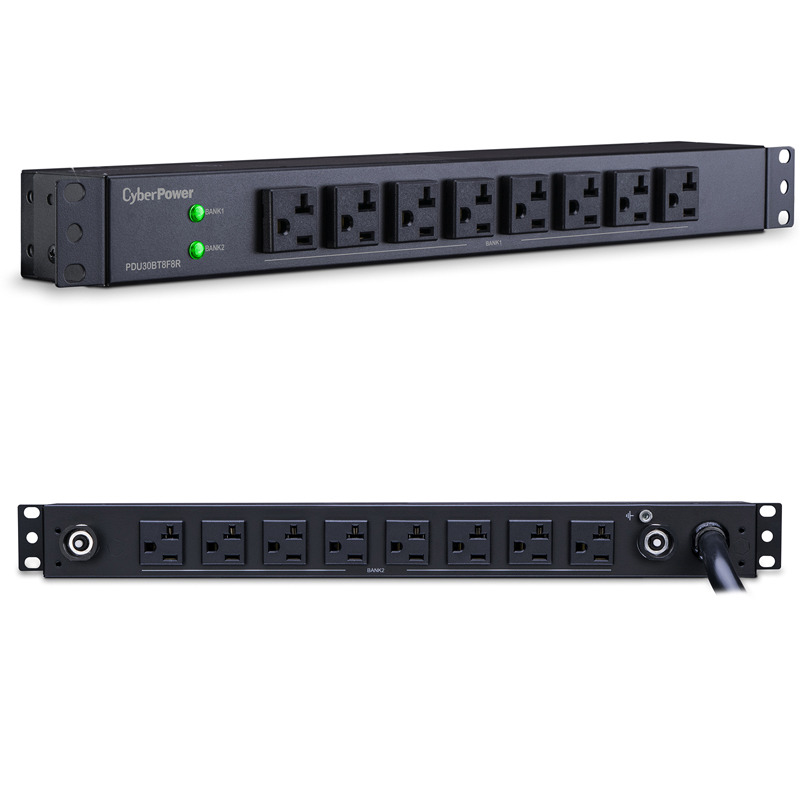

The CyberPower 16-outlet (8 Front/8 Rear) rack mount basic power distribution unit (PDU30BT8F8R) provides 120V 30A output. It distributes power to 16 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug, with unfiltered electrical pass-through.

Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 12-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified.

A Lifetime Warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.

Typical Applications
  • Servers
  • Network Devices
  • Telecom Equipment


  • Basic PDU
  • Switch-Free Design
  • Industrial-Grade Metal Housing
  • Lifetime Warranty
Download PDF datasheet for detailed product information
Environmental RoHS Compliant
Maximum Operating Elevation 10,000 ft (3,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
Operating Humidity 0
Operating Temperature 32
Storage Temperature 5
Cord Length 12 ft
Frequency 50/60 Hz
Maximum Current 30A (derated to 24A)
Plug Style Straight, Twist Lock
Plug Type NEMA L5-30P
Voltage 100
Nominal Output Voltage 100
Outlet Type NEMA 5-20R
Overload Protection 20A x 2
Adjustable Mounting Brackets 2 sets (L-short, L-long)
Cord Retention Tray/Cord Organizers Yes
External Site Ground Pin Yes
Form Factors Supported 1U rackmount.0U vertical rackmount undercounter installation supported
Rack Size 1U
Style Rackmount. Vertical Rackmount. Under-Counter
Weight (lbs) 6.0 lbs
Product Warranty Limited lifetime
