CyberPower PDU20MT8FNET 8-Outlets 1U Rackmount Monitored

CyberPower PDU20MT8FNET 8-Outlets 1U Rackmount

Use coupon techie for a 5% discount
Availability:In Stock

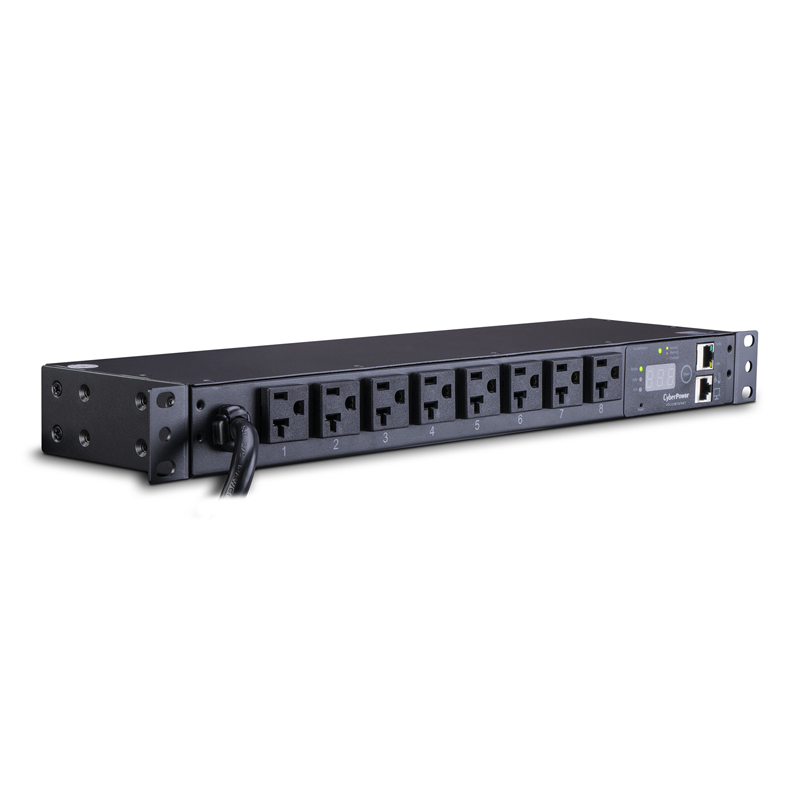

The CyberPower (PDU20MT8FNET) 8-outlet 1U rack mount monitored power distribution unit (PDU) provides 120V 20A output. It distributes power to 8 NEMA 5-20R receptacles from a single twist lock NEMA L5-20P plug, with unfiltered electrical pass-through. Power status can be monitored over the network, using CyberPower Management Console and the RJ45 Ethernet port for network connection, or locally using the LCD.

The front LCD panel provides local monitoring of the PDU. Load management is accomplished by using the display to measure the electrical current used by connected equipment in amps. The LCD can also display input voltages to assist in diagnosing potential issues with input power. Power being consumed in watts can also be displayed, as well as, the IP address of the network interface for ease of installation.

A Three-Year Warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.

Typical Applications

  • Servers
  • Network Devices
  • Telecom Equipment


  • Monitored PDU
  • SNMP Network Interface
  • User Upgradeable Firmware
  • Industrial-Grade Metal Housing
  • Three-Year Warranty
Environmental RoHS Compliant
Safety UL60950_1 certified by ETL.CSA C22.2.FCC Class A
Maximum Operating Elevation 14,760 ft (4,500 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
Operating Humidity 0 - 95% (non-condensing)
Operating Temperature 32 - 113
Storage Temperature 5 - 113
Cord Length 12 ft
Frequency 50/60 Hz
Maximum Current 20A (derated to 16A)
On/Off Switch N/A
Plug Style Straight, Twist Lock
Plug Type NEMA L5-20P
Voltage 100 - 120 V
Connectivity RJ45,DB9/RS232
LED Indicators Load,Tx/Rx,LINK
Management & Communications PDU20MT8FNET
Meter Readout KW,Voltage,Amperage,IP Address
Nominal Output Voltage 100 - 120 V
Outlet Banks 1
Outlet Type NEMA 5-20R
Outlets - Front 8
Outlets - Total 8
Overload Protection 20A (derated 16A)
Adjustable Mounting Brackets 2 sets (L-short, L-long)
Cord Retention Tray/Cord Organizers Yes
External Site Ground Pin Yes
Form Factors Supported 1U rackmount. 0U vertical rackmount undercounter installation supported
Rack Size 1U
Style Rackmount,Vertical Rackmount Under-Counter
Weight (lbs) 5.73 lbs
Product Warranty 3 Years
