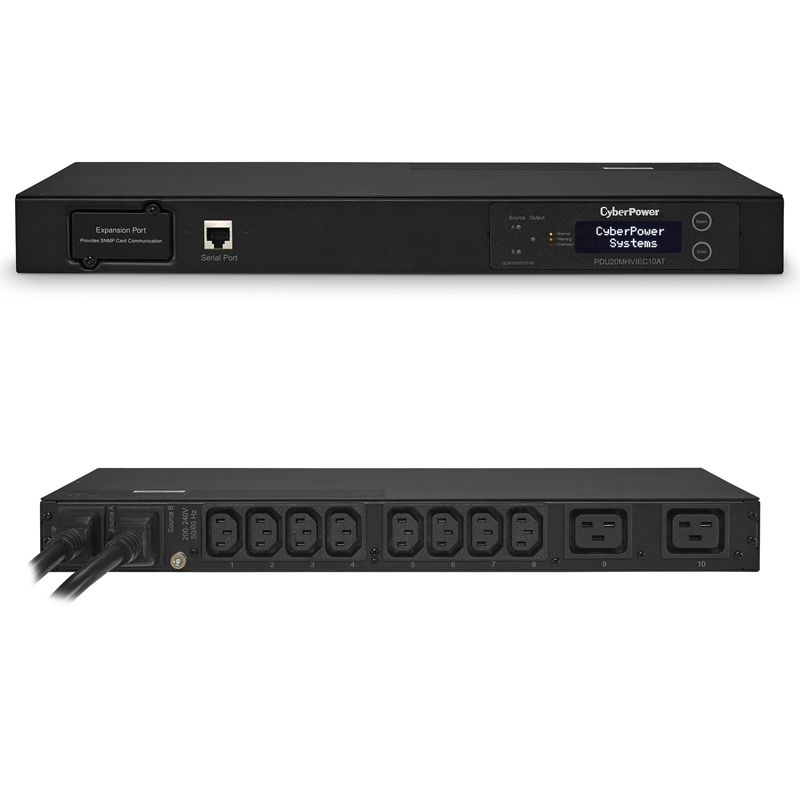

CyberPower PDU20MHVIEC10AT 10-Outlets 1U Rackmount Metered ATS

CyberPower PDU20MHVIEC10AT 10-Outlets 1U Rackmount

$359.95
Use coupon techie for a 5% discount
Manufacturer:CyberPower
Model:PDU20MHVIEC10AT
Condition:New
Availability:In Stock

The CyberPower PDU20MHVIEC10AT, a 10-outlet (rear) metered auto transfer switch (ATS) power distribution unit (PDU), provides 200-240V 20A output. The PDU distributes unfiltered electrical pass-through to 10 IEC-320 (8) C13 / (2) C19 receptacles from redundant IEC-320 C20 plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other demanding electrical applications, the PDU20MHVIEC10AT has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted horizontally. The PDU20MHVIEC10AT is UL and CSA certified by ETL. A three-year limited warranty covers the PDU for three years and connected equipment for as long as you own the product.

Certifications
Environmental RoHS Compliant
Safety UL60950_1 certified by ETL.CSA C22.2.FCC Class A
Communication
Connectivity Serial (RJ45)
SNMP / HTTP Remote Monitoring Optional RMCARD205
Environmental
Maximum Operating Elevation 13,100 ft (4,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
Operating Humidity 0
Operating Temperature 32
Storage Temperature 5
Thermal Dissipation 14 BTU/hr
Input
Cord Length 10 ft
Frequency 50/60 Hz
Maximum Current 20A (derated to 16A)
Nominal Input Voltage 200
Plug Style Straight
Plug Type 2
Output
LCD Readout KW.Voltage.Amperage.Network Information.HW/FW Version
LED Indicators Input.Output Load
Nominal Output Voltage 200
Outlet Banks 1
Outlet Type IEC-320 (8) C13 / (2) C19
Physical
Adjustable Mounting Brackets 1 set (L-long)
Cord Retention Tray/Cord Organizers Yes
External Site Ground Pin Yes
Form Factors Supported 1U rackmount
Rack Size 1U
Style Rackmount
Weight (lbs) 7.50 lbs
Warranty
Product Warranty 3 Years
