CyberPower PDU20BVHVT24F 24-Outlets 1U Rackmount Basic Power Distribution Units

CyberPower PDU20BVHVT24F 24-Outlets 1U Rackmount

$229.49
Use coupon techie for a 5% discount
Manufacturer:CyberPower
Model:PDU20BVHVT24F
Condition:New
Availability:In Stock

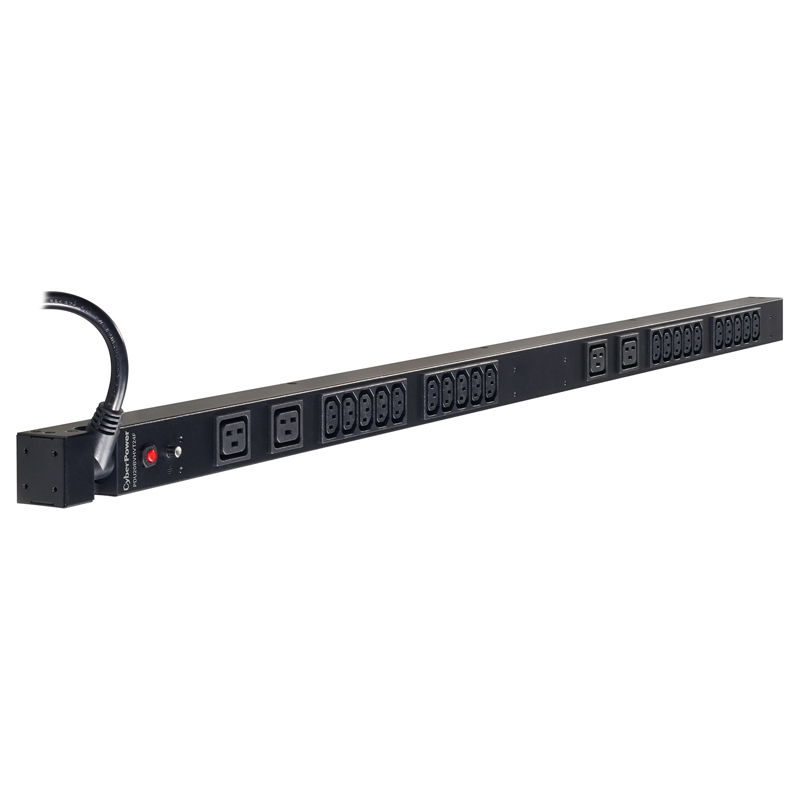

The CyberPower 24-outlet (24 Front) 0U vertical rack mount basic power distribution unit (PDU20BVHVT24F) provides 200/230V 20A output. It distributes power to 24 IEC-320 (4-C19 and 20-C13) receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through.

Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified.

A Lifetime Warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.

Typical Applications

  • Servers
  • Network Devices
  • Telecom Equipment

FEATURES

  • Basic PDU
  • Switch-Free Design
  • Industrial-Grade Metal Housing
  • Lifetime Warranty
Download PDF datasheet for detailed product information
Certifications
Environmental RoHS Compliant
Safety UL60950_1 certified by ETL.CSA C22.2
Environmental
Maximum Operating Elevation 10,000 ft (3,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
Operating Humidity 0
Operating Temperature 32
Storage Temperature 5
Input
Cord Length 10 ft
Frequency 50/60 Hz
Maximum Current 20A (derated to 16A)
Plug Style Straight, Twist Lock
Plug Type NEMA L6-20P
Voltage 200
Output
Nominal Output Voltage 200
Outlet Type IEC-320 C19 (4)/C13 (20)
Overload Protection 16A
Physical
Adjustable Mounting Brackets 3 sets (L-short, L-long, flat)
Cord Retention Tray/Cord Organizers Yes
External Site Ground Pin Yes
Form Factors Supported Vertical or horizontal mounting supported in wallmount applications racks and a variety of other surface types
Rack Size 0U
Style Rackmount Under-Counter
Weight (lbs) 7.3 lbs
Warranty
Product Warranty Limited lifetime
