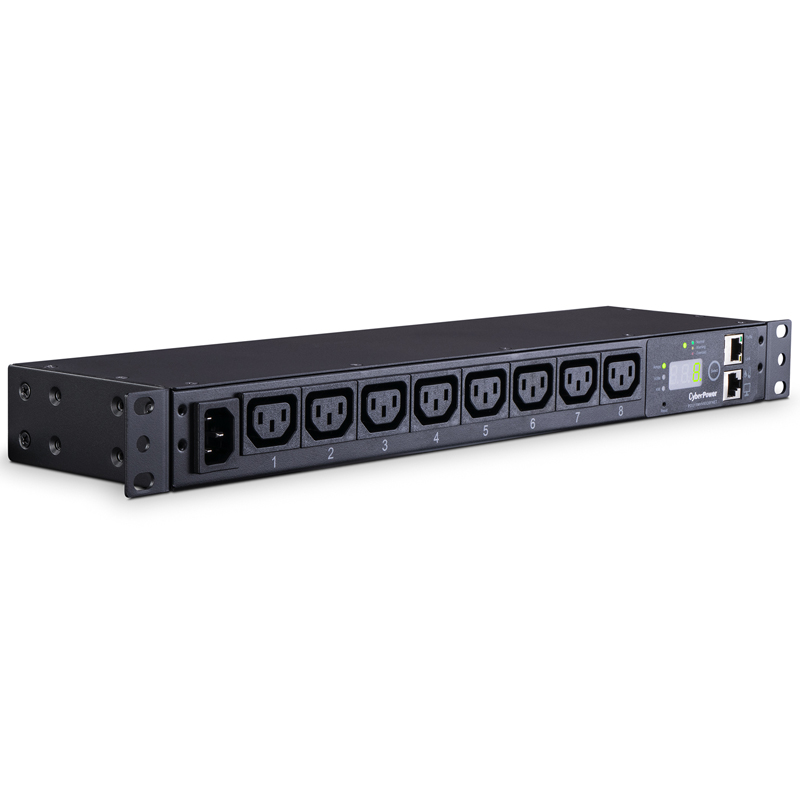

The CyberPower PDU15MHVIEC8FNET, an 8-outlet (front), 1U rackmount monitored power distribution unit (PDU), provides 200-240V 15A output. It distributes power to 8 IEC-320 C13 receptacles from a single IEC-320 C14 plug with unfiltered electrical pass-through. Power status can be monitored over the network, using the CyberPower Management Console and the RJ45 Ethernet port for network connection, or locally by using the LCD. The PDU15MHVIEC8FNET comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
| Certifications |
| Environmental |
RoHS Compliant |
| Safety |
UL60950_1 certified by ETL.CSA C22.2.FCC Class A |
| Environmental |
| Maximum Operating Elevation |
14,760 ft (4,500 m) |
| Maximum Storage Elevation |
50,000 ft (15,000 m) |
| Operating Humidity |
0 - 95% (non-condensing) |
| Operating Temperature |
32 - 113 |
| Storage Temperature |
5 - 113 |
| Input |
| Cord Length |
10 ft |
| Frequency |
50/60 Hz |
| Maximum Current |
15A (derated to 12A) |
| On/Off Switch |
N/A |
| Plug Style |
Straight (Socket) |
| Plug Type |
IEC-320 C14 |
| Voltage |
200 - 240 V |
| Management & Communications |
| Adjustable Mounting Brackets |
2 sets (L-short, L-long) |
| Connectivity |
RJ45.DB9/RS232 |
| Cord Retention Tray/Cord Organizers |
Yes |
| External Site Ground Pin |
Yes |
| Form Factors Supported |
1U rackmount.0U vertical rackmount undercounter installation supported |
| Physical |
PDU15MHVIEC8FNET |
| Rack Size |
1U |
| SNMP / HTTP Remote Monitoring |
TCP/IP.UDP.DHCP.SNMP.HTTP |
| Style |
Rackmount,Vertical Rackmount Under-Counter |
| Weight (lbs) |
3.53 lbs |
| Output |
| LED Indicators |
Load.Tx/Rx.LINK |
| Meter Readout |
KW.Voltage.Amperage.IP Address |
| Nominal Output Voltage |
200 - 240 V |
| Outlet Banks |
1 |
| Outlet Type |
IEC-320 C13 |
| Outlets - Front |
8 |
| Outlets - Total |
8 |
| Overload Protection |
15A (derated 12A-UL/10A-CE) |
| Warranty |
| Product Warranty |
3 Years |
