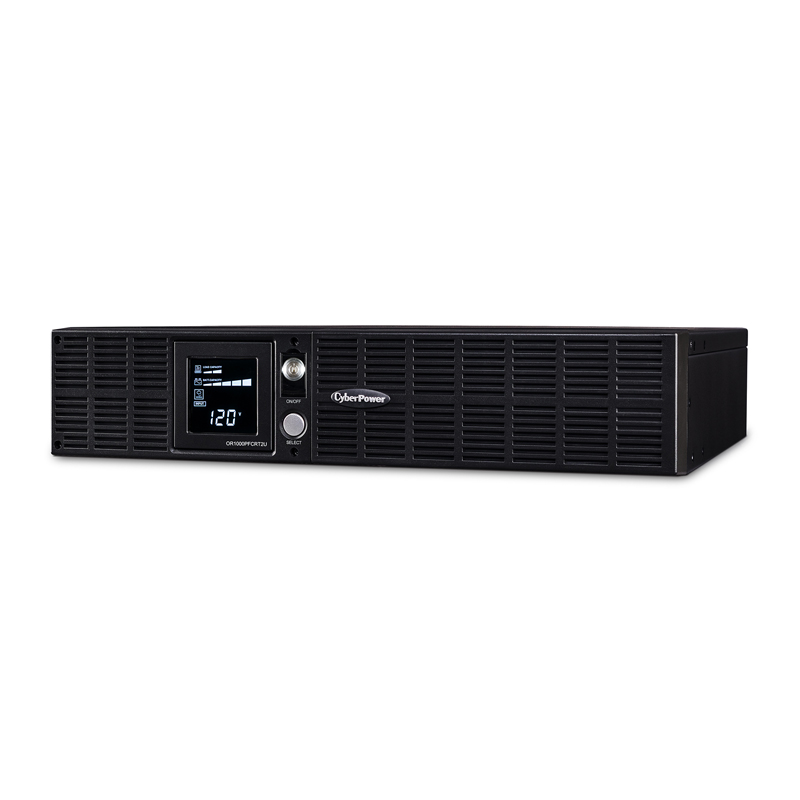

CyberPower OR1000PFCRT2U PFC Sinewave Series UPS System PFC Sinewave Series

CyberPower OR1000PFCRT2U PFC Sinewave Series UPS System

Use coupon techie for a 5% discount
Availability:In Stock

Available Options

The CyberPower OR1000PFCRT2U PFC Sinewave UPS System with sine wave output and multifunction LCD safeguards networking hardware, networked-based devices, small office servers, workstations and telecom equipment that use conventional and Active Power Factor Correction (PFC) power supplies.

The OR1000PFCRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $300,000 Connected Equipment Guarantee.


  • Servers
  • Workstations
  • Network Devices
  • Telecom Equipment


  • 1000VA / 700W
  • Line Interactive Topology
  • Active PFC Compatible
  • AVR & GreenPower UPS
  • Full-time Surge Protection and Battery Backup
  • 2U Rack Mount/Tower Convertible
  • 8 Outlets / USB, Serial, and EPO Ports
  • PowerPanel Business Edition
  • 3-Year Warranty
Battery Quantity 2
Battery Size 12V/9Ah
Battery Type Sealed Lead-Acid
Battery Voltage 24V
Hot-Swappable Yes
Replacement Battery Cartridge RB1290X2C
Replacement Battery Cartridge Quantity 1
Runtime At Full Load 6.6 minutes
Runtime At Half Load 17.9 minutes
Typical Recharge Time 10 hours
User Replaceable Yes
Environmental RoHS Compliant
Safety UL 5th.cUL.FCC Class A
Audible Noise @ 1.5m 48.5 dBA
Maximum Operating Elevation 0
Maximum Storage Elevation 0
On Battery Thermal Dissipation 447.6 BTU/hr
On Line Thermal Dissipation 70.3 BTU/hr
Operating Humidity 0
Operating Temperature 32
Storage Humidity 0
Storage Temperature 5
Energy Saving GreenPower UPS Bypass
UPS Topology Line Interactive
Adjustable Voltage Range 86
Cord Length 10 ft
Frequency Range 60 Hz
Input Voltage Range 88
Plug Style Right Angle, 45.Deg Offset Right
Plug Type NEMA 5-15P
Voltage 120 VAC
Management & Communications
Audible Alarms On Battery.Low Battery.Overload
Cables Included USB Cable
Emergency Power Off (EPO) Port Yes
HID Compliant USB Port Yes
Led Indicators Power On.Wiring Fault
Multifunction LCD Panel Yes
Remote Management Card None
Serial Port Yes
Software PowerPanel Business Edition
Automatic Voltage Regulation (AVR) Yes, +14%
On Battery Frequency 60 Hz
On Battery Voltage 120 VAC
On Battery Waveform Sine Wave
Outlet Type NEMA 5-15R
Output Power Factor 0.7
Overload Protection Internal Circuitry Limiting
Transfer Time 4 ms
VA 1,000 VA
Watts 700 W
Form Factor Rack/Tower
Rack Size 2U
Weight (lbs) 37.4 lbs
Surge Protection & Filtering
EMI/RFI Filtration Yes
Phone RJ11 / Ethernet RJ45 1-In, 1-Out (10/100)
Surge Suppression 1,470 J
CEG Amount 300000
Connected Equipment Guarantee Lifetime
Product Warranty 3 Years Limited
