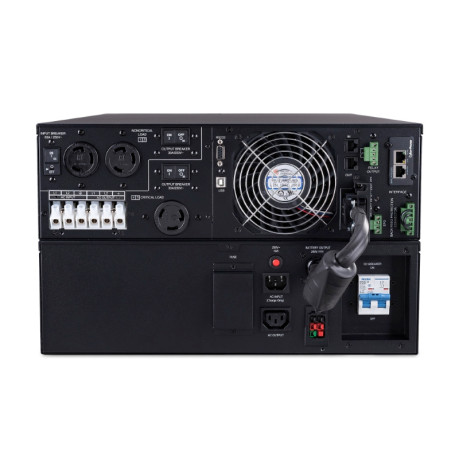

The CyberPower OL8KRT is a high-performance 8000 VA / 7200 W online double-conversion UPS designed to provide seamless, reliable power for critical IT environments and data centers. This versatile unit supports a 6U rack-mountable form factor, equipped with twelve NEMA L6-30R outlets and a robust NEMA L6-30P input plug. It offers superior protection with a surge rating of 2350 joules and includes comprehensive safeguarding for communication lines through RJ11/RJ45 ports. The hot-swappable, maintenance-free, sealed lead-acid battery system ensures a reliable runtime of approximately 5 minutes at full load and 15 minutes at half load, with a recharge period of four hours to reach 90% capacity.
Featuring a user-friendly LCD interface, the CyberPower OL8KRT offers easy access to critical system information, while its multiple management optionsincluding USB, serial, SNMP, and EPOprovide versatile control over power management. The UPS boasts an impressive ECO Mode efficiency that exceeds 97%, complemented by ENERGY STAR certification for optimized energy use. It comes with PowerPanel Business Edition software for enhanced monitoring capabilities, ensuring seamless integration into existing IT frameworks. Backed by a 3-year limited warranty, including battery coverage, and a generous $500,000 Connected Equipment Guarantee, the OL8KRT promises exceptional protection and peace of mind for business-critical operations.
| Battery Features |
| Battery Quantity |
20 |
| Battery Size |
12V / 9 Ah |
| Battery Type |
Sealed Lead-Acid Battery |
| Hot Swappable |
Yes |
| Recharge Time |
5 Hours (0% to 90% charged) |
| Compliance & Warranty |
| CEG Amount |
$300000 |
| RoHS Compliant |
RoHS Compliant |
| Safety |
UL1778 5th Ed. CSA C22.2 No.107.3-05 FCC Part 15 Class A |
| Warranty |
3 Year Limited Warranty |
| Electrical Protection Features |
| EMI/RFI Filtration |
Yes |
| Short Circuit Protection |
Yes, UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection |
| Surge Protection |
Yes, 2430 J |
| Input Characteristics |
| Cold Start Capable |
Yes |
| Frequency Range |
40 Hz 70 Hz |
| Plug Type |
Hardwire |
| Power Factor |
0.99 |
| Voltage Range |
120 VAC 139 VAC for 025% Load 140 VAC 159 VAC for 0-50% Load 160 VAC 179 VAC for 075% Load 180 VAC 280 VAC for 0100% Load |
| Interfaces & Monitoring |
| Emergency Power Off (EPO) Port |
Yes |
| Expansion Slot |
Yes RMCARD205 pre-installed |
| HID Compliant USB Port |
Yes |
| LCD Display |
Multifunction LCD |
| Management Software |
PowerPanel Business |
| Removable LCD Panel |
Yes Requires DB26 cable (not included) |
| Rotatable LCD Panel |
Yes |
| Serial Port |
1 Serial |
| Outlet Details |
| Built-in Bypass Mode |
Internal Bypass (Automatic and Manual) |
| Crest Factor |
3:1 |
| ECO Mode Voltage Regulation |
10%, 15% (configurable) |
| Outlet Type |
3 NEMA L6-30R 1 Hardwire Terminal Block |
| Total Number of Outlets |
4 |
| Output Characteristics |
| Battery Voltage |
200/208/220/230/240 VAC 2% (configurable) |
| Battery Waveform |
Sine Wave |
| Capacity (VA) |
8000 VA |
| Capacity (Watts) |
8000 W |
| Physical Properties |
| Actual Dimensions (in) |
17 x 10.5 x 26 (in) |
| Actual Weight (lb) |
226.6 |
| Color |
Black |
| Rack Mounting Hardware Included |
Yes |
| Rack Unit Size |
6U |
| Shipping Dimensions (in) |
23.62 x 25.12 x 34.53 (in) |
| Shipping Weight (lb) |
279.4 |
| Runtime and Battery Maintenance |
| Battery Replaceability |
Yes |
| Full-Load Runtime |
4.7 min |
| Half-Load Runtime |
12 min |
| Smart Battery Management (SBM) Mode |
Yes |
| Unit Configuration |
| Energy Efficiency Mode |
ECO Mode Efficiency >96% |
| Form Factor |
Rack / Tower |
| Model ID |
OL8KRT |
| Rack Unit Size |
6U |
| Topology Type |
Online Double Conversion |
