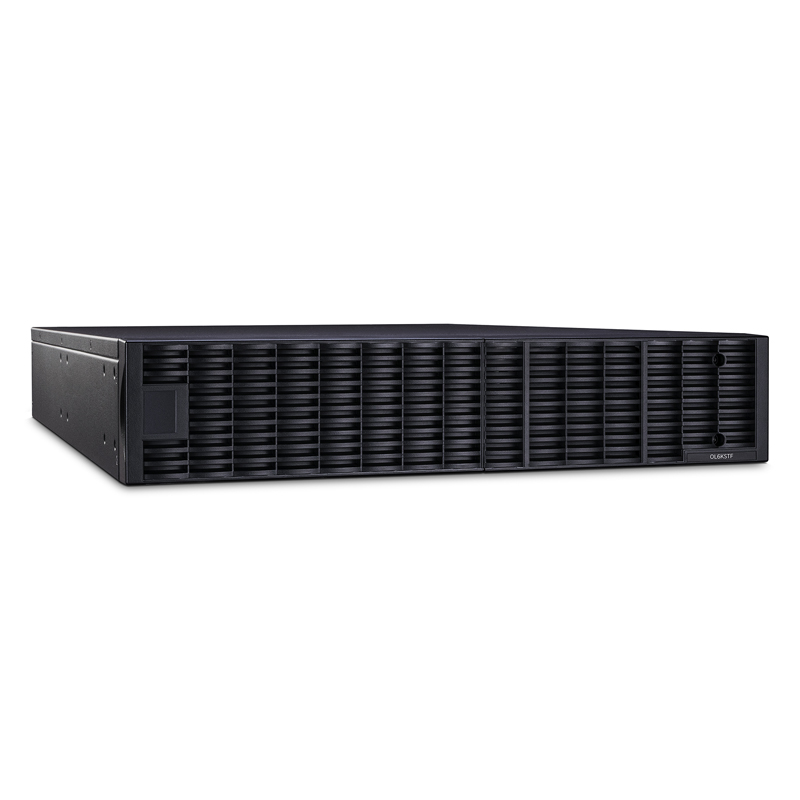

The CyberPower Smart App Online OL6KSTF rack/tower step-down isolation transformer converts 200 V to 240 V input voltage originating from utility power, a UPS, or a generator to 120 V output.

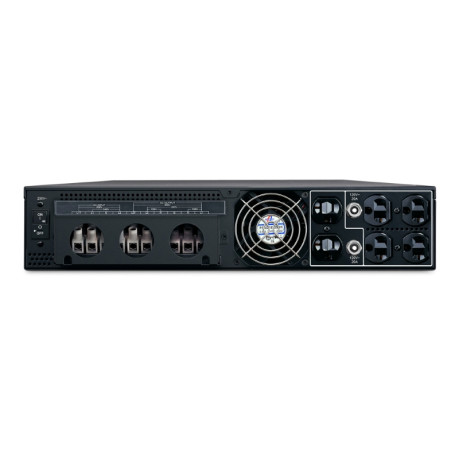

The OL6KSTF has a capacity of 6,000 VA / 6,000 Watts. It features six (6) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. A hardwire output terminal block provides a means to connect to an electrical subpanel.
The included 6-foot cord (NEMA L6-30P plug to ROJ) connects the OL6KSTF to input power. Over temperature protection safeguards your OL6KSTF from damage if the internal heat exceeds safe operating parameters.
A Three-Year Warranty ensures that this extended battery module has passed our highest quality standards in design, assembly, material or workmanship.
TYPICAL APPLICATIONS
- Core Network Equipment
- Hyperconverged Infrastructure (HCI)
- Server Rooms
- Server Virtualization Infrastructures (VMware, Hyper-V, Citrix)
- Storage Devices
- VoIP Installations
FEATURES
- 6000 VA/6000 W
- 120 V, 208 V, 50/60 Hz Output
- Over Temperature Protection
- Rack/Tower Form Factor
- 3-Year Limited Warranty
Download PDF datasheet for detailed product information
| Certifications |
| Environmental |
RoHS Compliant |
| Safety |
UL 1778 5th Ed.CSA C22.2 NO.107.3-05 |
| Compatibility |
| UPS Models |
OL6KSTF,OL3000RTXL2UHV,OL3000RTXL2UHV,OL5KRTHD,OL6000RT3UPDU,OL6KRT,OL6KRT3UHW,OL6KRTHD,OL6KRTHW,OL6KRTMB,OL8000RT3U,OL8000RT3UPDU,OL8KRT3UHW,OL8KRTHW,OL8KRTMB,OL10000RT3U,OL10000RT3UPDU,OL10KRT3HW,OL10KRTHW,OL10KRTMB |
| Environmental |
| Audible Noise At 1M From Surface Of Unit |
58 dBA |
| Operating Elevation |
0 ft to 10,000 ft (0 m to 3,000 m) |
| Operating Humidity |
0% to 90% (non-condensing) |
| Operating Temperature |
32 |
| Storage Elevation |
0 ft to 50,000 ft (0 to 15,000 m) |
| Storage Relative Humidity |
0% to 95% (non-condensing) |
| Storage Temperature |
-4 |
| Thermal Dissipation (100% Load) |
1379 BTU/h |
| General |
| Over Temperature Protection |
Yes |
| Type |
Step-Down Transformer |
| Input |
| Cord Length (ft) |
6 |
| Current Rating |
30 A |
| Frequency |
50/60 Hz |
| Nominal Voltage |
120 V, 208 V |
| Plug Type |
Hardwire (NEMA L6-30P power cord included) |
| Output |
| Outlet Type |
(6) NEMA 5-20R, (1) Hardwire Terminal Block |
| Overload Protection |
Circuit Breaker Protected |
| VA |
6,000 (6 kVA) |
| Watts |
6,000 (6 kW) |
| Physical |
| Enclosure Construction |
Steel |
| Form Factor |
Rack / Tower Convertible |
| Rack Mounting Hardware |
Included |
| Physical Dimensions |
| Dimensions (WxHxD, In) |
23.6 x 13 x 35.4 |
| Dimensions (WxHxD, Mm) |
600 x 330 x 900 |
| Rack Units |
2U |
| Weight (kg) |
58 |
| Weight (lb) |
128.19 |
| Warranty |
| Extended 2-Years Warranty |
Optional WEXT5YR-ACC2C |
| Product Warranty |
3 Years Limited |
