The CyberPower OL2200RTXL2U is a high-performance 2200 VA / 1980 W online double-conversion UPS designed to provide continuous, clean power to critical systems. Perfect for safeguarding servers, networking equipment, and other sensitive electronics, this versatile unit features a 2U rack/tower convertible form factor with eight NEMA 5-20R outlets and an 8-foot NEMA L5-20P input cord. It offers superior surge protection with a 1780-joule rating, including integrated RJ11/RJ45 ports for communication line security. The unit's hot-swappable, sealed lead-acid battery system delivers approximately 3 minutes of runtime at full load and 10 minutes at half load, with a quick four-hour recharge time to 90% capacity.
Equipped with a flexible, extendable, and rotatable LCD panel, the OL2200RTXL2U allows for easy status monitoring and configuration. It supports multiple management interfaces such as USB, serial, SNMP, relay, and EPO, ensuring comprehensive control over power management. The device operates with an ECO Mode efficiency over 95% and holds an ENERGY STAR certification, highlighting its energy-saving capabilities. PowerPanel Business Edition software is included for sophisticated monitoring solutions. Additionally, the unit is backed by a 3-year limited warranty (covering batteries) and a generous $400,000 Connected Equipment Guarantee, offering peace of mind and assured protection for essential applications.
| Battery Features |
| Battery Quantity |
6 |
| Battery Size |
12V / 9 Ah |
| Battery Type |
Sealed Lead-Acid Battery |
| Hot Swappable |
Yes |
| Recharge Time |
4 Hours (0% to 90% charged) |
| Compliance & Warranty |
| CEG Amount |
$400000 |
| RoHS Compliant |
RoHS Compliant |
| Safety |
UL1778 CSA C22.2 No.107.3 FCC Part 15 Class A |
| Warranty |
3 Year Limited Warranty |
| Electrical Protection Features |
| EMI/RFI Filtration |
Yes |
| Overload Protection |
Yes, Line Mode: 105% ~ 125% Load 1 min Line Mode: 126% ~ 150% Load 10 sec Battery Mode: 105% ~ 130% Load 10 sec Battery Mode: 131% 150% Load 2 sec |
| Short Circuit Protection |
Yes, UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection |
| Surge Protection |
Yes, 1335 J |
| Input Characteristics |
| Cold Start Capable |
Yes |
| Frequency Range |
40 Hz 70 Hz |
| Plug Type |
NEMA L5-20P (5-20P Adapter) |
| Power Factor |
0.99 |
| Voltage Range |
60 VAC 69 VAC for 060% Load 70 VAC 79 VAC for 070% Load 80 VAC 89 VAC for 080% Load 90 VAC 95 VAC for 090% Load 96 VAC 150 VAC for 0100% Load |
| Interfaces & Monitoring |
| Emergency Power Off (EPO) Port |
Yes |
| Expansion Slot |
Yes with optional RMCARD205 or RELAYIO500 |
| HID Compliant USB Port |
Yes |
| LCD Display |
Multifunction LCD |
| Management Software |
PowerPanel Business |
| Removable LCD Panel |
Yes Requires DB26 cable (not included) |
| Rotatable LCD Panel |
Yes |
| Serial Port |
1 Serial |

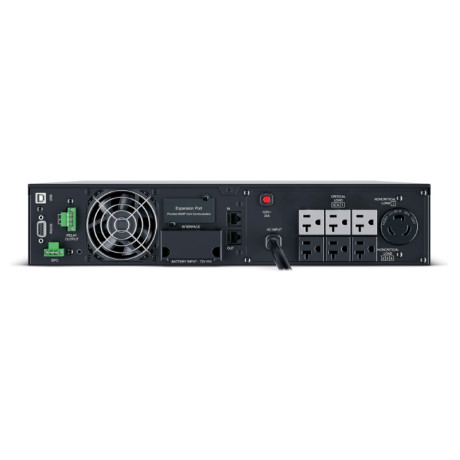

| Outlet Details |
| Built-in Bypass Mode |
Internal Bypass (Automatic and Manual) |
| Crest Factor |
3:1 |
| ECO Mode Voltage Regulation |
10%, 15% (Configurable) |
| Outlet Type |
6 NEMA 5-20R 1 NEMA L5-20R |
| Total Number of Outlets |
7 |
| Output Characteristics |
| Battery Frequency |
50/60 Hz 0.25Hz (auto-sensing or configurable) |
| Battery Voltage |
100/110/115/120/125 VAC 2% (configurable) |
| Battery Waveform |
Sine Wave |
| Capacity (VA) |
2200 VA |
| Capacity (Watts) |
1800 W |
| Physical Properties |
| Actual Dimensions (in) |
17 x 3.5 x 23.62 (in) |
| Actual Weight (lb) |
68.2 |
| Color |
Black |
| Cord Length |
10 ft (3.0 m) |
| Rack Mounting Hardware Included |
Yes |
| Rack Unit Size |
2U |
| Shipping Dimensions (in) |
22.5 x 9.5 x 34.5 (in) |
| Shipping Weight (lb) |
85.47 |
| Runtime and Battery Maintenance |
| Battery Replaceability |
Yes |
| Full-Load Runtime |
8 min |
| Half-Load Runtime |
21 min |
| Smart Battery Management (SBM) Mode |
Yes |
| Unit Configuration |
| Energy Efficiency Mode |
ECO Mode Efficiency >95% |
| Form Factor |
Rack / Tower |
| Model ID |
OL2200RTXL2U |
| Rack Unit Size |
2U |
| Topology Type |
Online Double Conversion |
