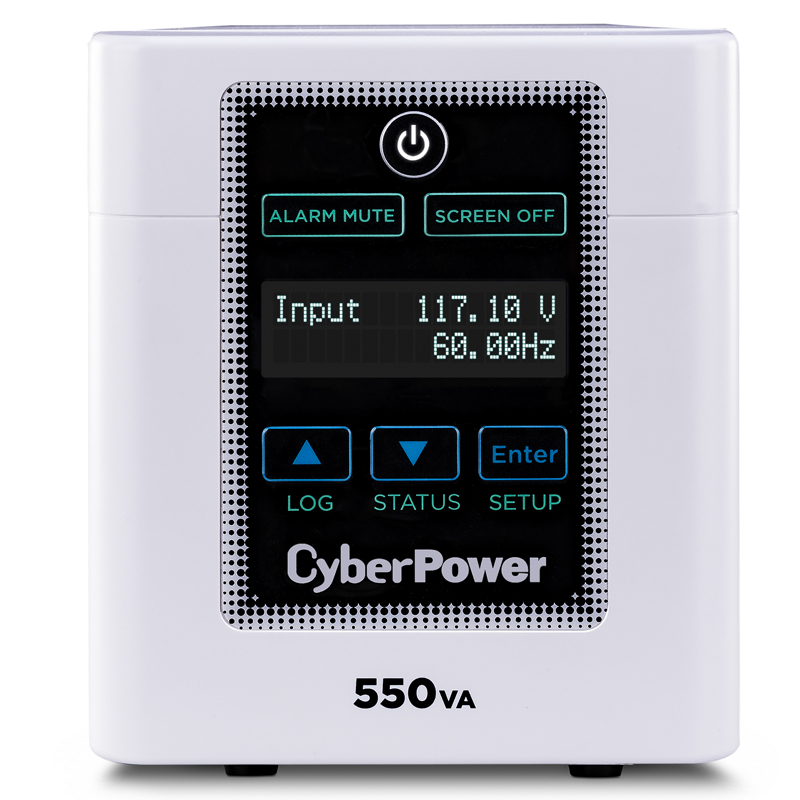

The CyberPower M550L medical-grade UPS delivers clean, consistent backup power to sensitive medical equipment in hospitals and healthcare facilities. Designed for use in patient care vicinities, the M550L meets UL 60601-1 testing requirements, and includes hospital-grade outlets and plugs. The M550L also includes a built-in isolation transformer to minimize the current leakage and eliminate line noise, a tip-resistant mini-tower design, replaceable batteries, and a sealed, spray-resistant LCD panel. Free power management software is available for download.
The M550L medical-grade UPS is covered by a manufacturer warranty (including coverage of batteries) anda Connected Equipment Guarantee. See warranty for details.
NOTE: This UPS is not intended for use in critical care or life support applications.
KEY FEATURES/BENEFITS
- Tested to UL-60601-1 for use in patient-care settings
- Ideal for diagnostic imaging, medical devices, nurses stations and lab equipment
- Reduces current leakage to under 100?A (microamps)
- Includes a hospital-grade NEMA 5-15P plug and 4 hospital-grade NEMA 5-15R outlets
- Sealed LCD screen resists dirt,debris and spray
- Hot-swappable and replaceable batteries eliminate unnecessary downtime
Battery |
Battery Quantity |
2 |
Battery Size |
12V/7Ah |
Battery Type |
Sealed Lead-Acid |
Hot Swappable |
Yes |
Replacement Battery Cartridge |
RB1270X2E |
Runtime At Full Load |
8 min |
Runtime At Half Load |
25 min |
Typical Recharge Time |
? 8 hours (Recovery to 90% capacity) |
User Replaceable |
Yes |
Certifications |
Environmental |
RoHS Compliant |
Safety |
UL1778 (USA) |
Dimensions |
Weight (kg) |
13.65 |
Weight (lb) |
30.1 |
Environmental |
Operating Elevation |
0-10000 feet (0-3000 meters) |
Operating Relative Humidity |
0% |
Operating Temperature |
32 |
General |
UPS Topology |
Line Interactive |
Input |
Adjustable Voltage Range |
88Vac |
Cord Length (ft) |
6 |
Input Frequency Range |
60Hz |
Input Voltage Range |
90Vac |
Plug Type |
5-15P-HG |
Isolation |
Leakage Current (Max Shock Potential) |
<100 |
Output Isolation Transformer |
Hospital grade load isolation transformer |
Management & Communications |
Audible Alarms |
On Battery.Low Battery.Overload.Fault |
HID Compliant USB Port |
Yes |
LCD Control Panel |
Yes |
Led Indicators |
Power On |
Management Cable |
USB Cable |
Serial Port |
Yes |
Software (Free Download) |
PowerPanel Business Edition |
Output |
Automatic Voltage Regulation |
1 Boost/1 Buck |
On Battery Frequency |
60 Hz |
On Battery Voltage |
120 VAC |
On Battery Waveform |
Simulated Sine Wave |
Outlet Type |
5-15R-HG |
Overload Protection |
Internal circuitry limiting / circuit breaker |
Surge Protection & Filtering |
M550L |
Surge Suppression |
1445 J |
Transfer Time |
<10 ms |
VA |
550 |
Watts |
440 |
Physical |
Color |
White |
Form Factor |
Mini-Tower |
Weight (lbs) |
30.1 |
Warranty |
CEG Amount |
400000 |
Connected Equipment Guarantee |
Lifetime |
Product Warranty |
3 Years Limited |
