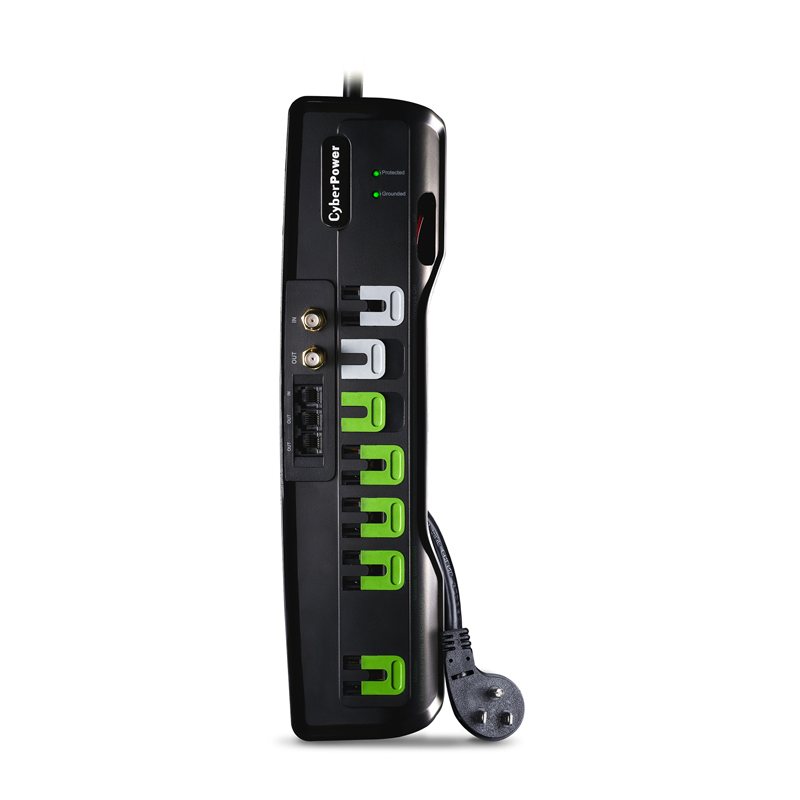

The CyberPower Home Theater Series CSHT706TCG Surge Protector is ideal for home entertainment and Home Office protection with 2250 joules, 7 outlets, and a 6 ft. cord. The surge protector provides protection for HDTVs, cable/satellite receivers, personal computers, cable modems, phones/fax/DSL, printers, stereos, and CD/DVD players.
Master Controled outlets reduce energy costs by turning off idle peripherals. The CSHT706TCG has a single master outlet that will control up to three devices attached to the master Controled outlets. When the master device is turned off or goes into power saving standby mode, the master Controled outlets will automatically shut off power to the attached devices to save energy.
A Limited Lifetime Warranty ensures that this surge protector has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $175,000 Connected Equipment Guarantee.
Typical Applications
- HDTVs
- Cable/Satellite Receivers
- Desktop Computers
- Personal Electronics
Features
- 7 Surge Protected Outlets
- 4 Energy-Saving Outlets
- 2250 Joules of Surge Protection
- DSL / Phone / Fax Protection - RJ11
- Cable / Satellite Protection - RG6
- 15A Circuit Breaker
- 6 ft. Cord
- EMI/RFI Noise Filters
- Lifetime Warranty
| Certifications |
| Environmental |
RoHS Compliant |
| Safety |
UL1363.UL1449 3rd Edition.cUL |
| Indicators |
| Indicators |
Protected (green).Grounded (green) |
| Input |
| Circuit Breaker |
15 A |
| Cord Length |
6 ft |
| Plug Style |
Right Angle, 45.Deg Offset Right |
| Plug Type |
NEMA 5-15P |
| Switch |
Non Lighted On/Off |
| Voltage |
125 V |
| Output |
| Outlet Type |
NEMA 5-15R |
| Physical |
| Cord Management |
Yes |
| Safety Covers |
Yes |
| Surge Protection & Filtering |
| Attenuation |
Up to 43 dB |
| Clamping Voltage |
400 V (L-N, L-G, N-G) |
| Coaxial Protection RG6 (Gold Plated) |
1 Pair |
| EMI/RFI Filtration |
150 kHz |
| Maximum Surge Current |
105,000 amps |
| Maximum Surge Current H-G |
30,000 amps |
| Maximum Surge Current H-N |
45,000 amps |
| Maximum Surge Current N-G |
30,000 amps |
| Phone Protection RJ11 |
1-In, 2-Out |
| Response Time |
< 1 nanosecond |
| Surge Suppression |
2,250 joules |
| Warranty |
| CEG Amount |
175000 |
| Connected Equipment Guarantee |
Lifetime |
| Product Warranty |
Limited Lifetime |
