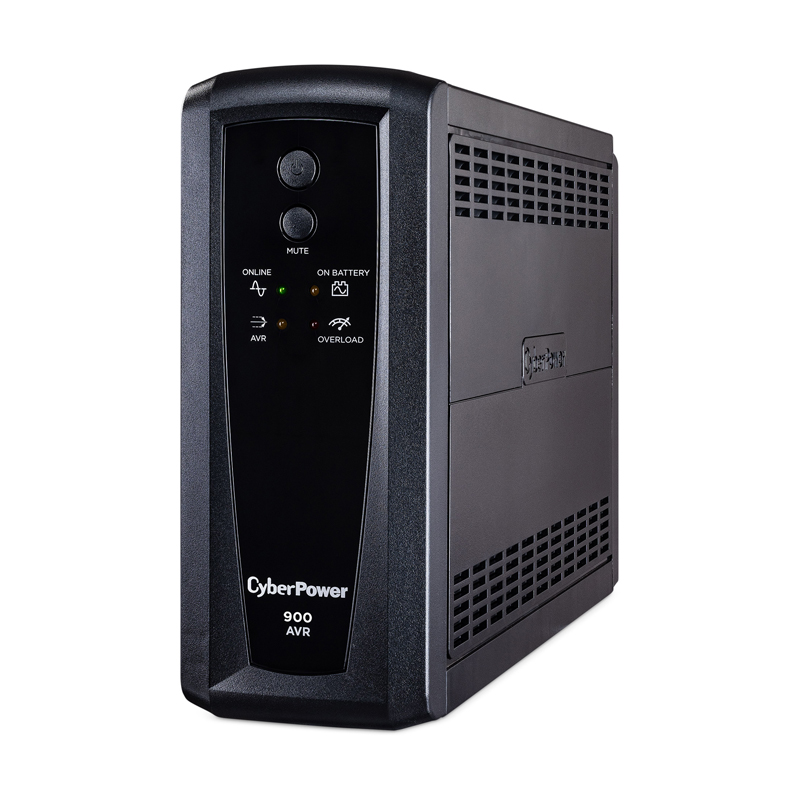

The CyberPower AVR Series CP900AVR uninterruptible power supply (UPS) safeguards PCs and other electronics from blackouts, brownouts, surges, spikes, sags, and other power abnormalities.
Its Automatic Voltage Regulation (AVR) boost technology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. Its composite integrated circuitry offers advanced lightning protection.
This UPS system is ENERGY STAR qualified with patented GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.
A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $300,000 Connected Equipment Guarantee.
TYPICAL APPLICATIONS
- Desktop Computers
- Home Networking/VoIP
- Personal Electronics
- Home Theater Devices
FEATURES
- 900VA / 560W
- Line Interactive Topology
- Automatic Voltage Regulation
- GreenPower UPS
- ENERGY STAR Qualified
- Full-time Surge Protection and Battery Backup
- Mini-Tower Form Factor
- RJ11/RJ45 and Coax RG6 Protection

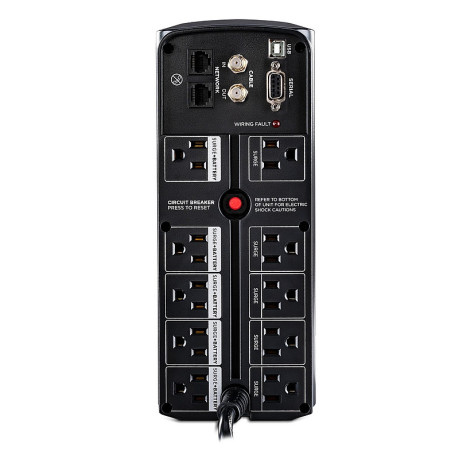

- 8 Outlets / USB and Serial Ports
- PowerPanel Personal Edition
- 3-Year Warranty
| Battery |
| Battery Quantity |
2 |
| Battery Size |
12V/7Ah |
| Battery Type |
Sealed Lead-Acid |
| Hot Swappable |
Yes |
| Replacement Battery Cartridge |
RB1270X2C (for serial numbers that begin with "CT5" or "CXQ"). RB1270X2 (for serial numbers that begin with "BGY") |
| Replacement Battery Cartridge Quantity |
1 |
| Runtime At Full Load (min) |
5 |
| Runtime At Half Load (min) |
16 |
| Typical Recharge Time |
8 hours |
| User Replaceable |
Yes |
| Certifications |
| Environmental |
RoHS Compliant |
| Safety |
UL1778, cUL 107 5th, FCC DOC Class B |
| Dimensions |
| Weight (kg) |
9.9 |
| Weight (lb) |
21.83 |
| Environmental |
| Online Thermal Dissipation |
26.7 |
| Operating Elevation |
0-10,000 ft (0-3,000 m) |
| Operating Relative Humidity |
0-90% (non-condensing) |
| Operating Temperature |
32 |
| Storage Elevation |
0-50,000 ft (0-15,000 m) |
| Storage Relative Humidity |
0-95% (non-condensing) |
| Storage Temperature |
5 |
| General |
| Energy Saving |
GreenPower UPS Bypass |
| Energy Star Certified |
Yes |
| UPS Topology |
Line Interactive |
| Input |
| Adjustable Voltage Range |
135 |
| Cord Length (ft) |
6 |
| Frequency Range |
57 |
| Input Voltage Range |
88 |
| Plug Style |
Right Angle, 45.Deg Offset Right |
| Plug Type |
NEMA 5-15P |
| Management & Communications |
| Audible Alarms |
On battery, low battery, overload, fault |
| HID Compliant USB Port |
Yes |
| Led Indicators |
Power On, Wiring Fault, On Battery, AVR, Overload |
| Management Cable |
USB Cable |
| Serial Port |
Yes |
| Software |
PowerPanel Personal |
| Output |
| Automatic Voltage Regulation |
Yes |
| Coaxial Protection RG6 |
1-In, 1-Out |
| EMI/RFI Filtration |
Yes |
| Network Protection RJ45 |
1-in, 1-Out (10/100/1000) |
| On Battery Frequency |
60 Hz |
| On Battery Voltage |
120 VAC |
| On Battery Waveform |
Simulated Sine Wave |
| Outlet Type |
NEMA 5-15R |
| Overload Protection |
Internal Circuitry Limiting, Circuit Breaker |
| Surge Suppression (Joules) |
1500 |
| Transfer Time |
Typical 8 ms |
| VA |
900 |
| Watts |
560 |
| Physical |
| Color |
Black |
| Form Factor |
Mini-Tower |
| Warranty |
| CEG Amount |
300000 |
| Connected Equipment Guarantee |
Lifetime |
| Product Warranty |
3 Years Limited |
