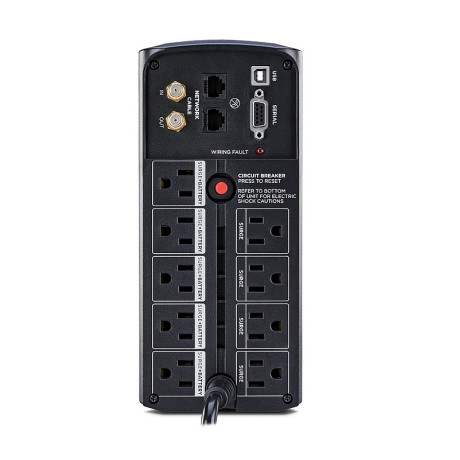

The CyberPower CP1000AVRLCD is a versatile 1000 VA / 600 W line-interactive UPS designed to provide reliable battery backup and surge protection for home office and small business applications. Equipped with an intuitive LCD display, this compact unit offers real-time system vitals including load capacity, battery level, and estimated runtime. The CP1000AVRLCD features eight NEMA 5-15R outlets, four of which provide battery backup and surge protection, while the remaining four offer surge protection only. With automatic voltage regulation (AVR), this UPS corrects minor power fluctuations without switching to battery power, extending battery life and ensuring consistent performance.
Advanced features include data line protection for phone, fax, and network connections through RJ11/RJ45 ports, safeguarding against power surges that travel down these lines. The CP1000AVRLCD supports USB connectivity for convenient management and monitoring capabilities, and it comes with PowerPanel Personal Edition software, which enables users to automate shutdowns and monitor power conditions. This UPS boasts a 3-year limited warranty, including coverage for batteries, and offers a $350,000 Connected Equipment Guarantee, providing confidence and protection against power anomalies for your essential electronics.
| Battery Features |
| Battery Quantity |
1 |
| Battery Size |
12V / 9 Ah |
| Battery Type |
Sealed Lead-Acid Battery |
| Recharge Time |
8 Hours |
| Compliance & Warranty |
| CEG Amount |
$350000 |
| RoHS Compliant |
RoHS Compliant |
| Safety |
UL1778 cUL 107 5th FCC DOC Class B |
| Warranty |
3 Year Limited Warranty |
| Electrical Protection Features |
| EMI/RFI Filtration |
Yes |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Surge Protection |
Yes, 1080 J |
| Input Characteristics |
| Frequency Range |
57 Hz 63 Hz |
| Plug Type |
NEMA 5-15P |
| Voltage Range |
90 VAC 142 VAC |
| Interfaces & Monitoring |
| HID Compliant USB Port |
Yes |
| LCD Display |
Multifunction LCD |
| Management Software |
PowerPanel Personal |
| Serial Port |
1 Dry Contact |
| Outlet Details |
| Outlet Type |
9 NEMA 5-15R |
| Total Number of Outlets |
9 |
| Output Characteristics |
| Battery Frequency |
60 Hz 1% |
| Battery Voltage |
120 VAC 5% |
| Battery Waveform |
Simulated Sine Wave |
| Capacity (VA) |
1000 VA |
| Capacity (Watts) |
600 W |
| Physical Properties |
| Actual Dimensions (in) |
3.9 x 11 x 14 (in) |
| Actual Weight (lb) |
15 |
| Color |
Black |
| Cord Length |
6 ft (1.8 m) |
| Shipping Dimensions (in) |
6.63 x 12.0 x 14.13 (in) |
| Shipping Weight (lb) |
16.5 |
| Runtime and Battery Maintenance |
| Battery Replaceability |
Yes |
| Full-Load Runtime |
2 min |
| Half-Load Runtime |
9 min |
| Unit Configuration |
| Energy Efficiency Mode |
GreenPower UPS Bypass Technology |
| Form Factor |
Mini-Tower |
| Model ID |
CP1000AVRLCD |
| Topology Type |
Line Interactive |
