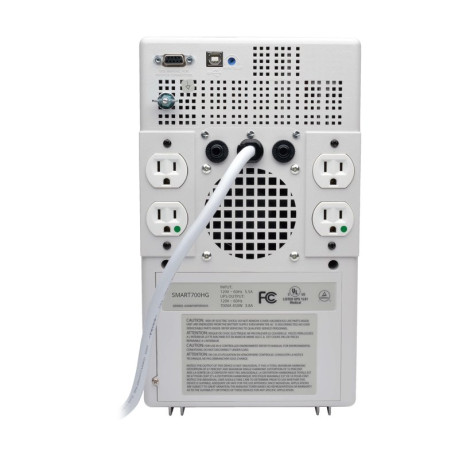

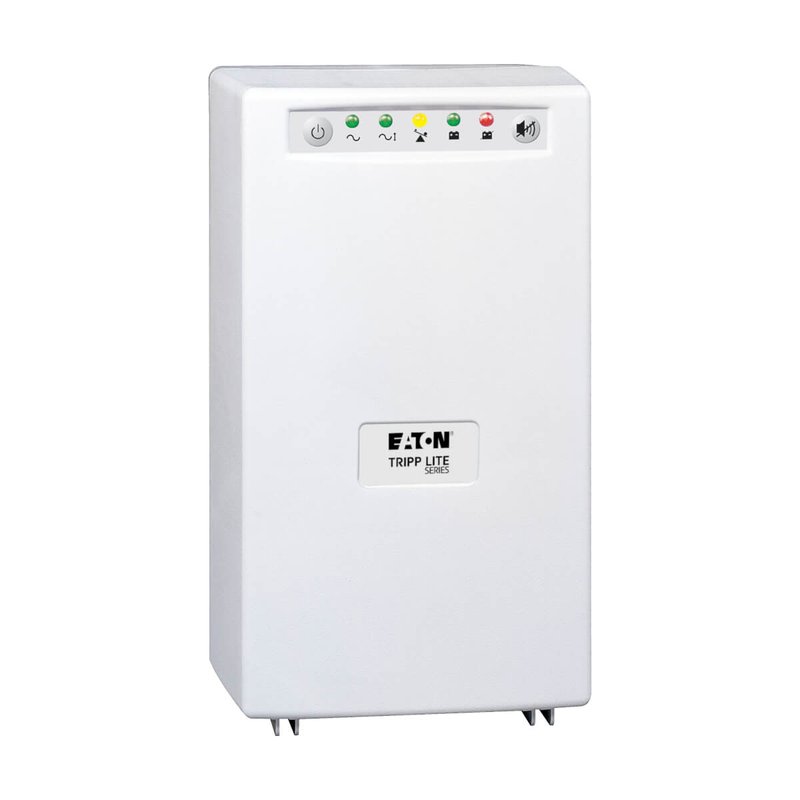

Tripp Lite SMART700HG SmartPro 120V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 4 Outlets Full Isolation USB DB9 UPS Battery Backup

Tripp Lite SMART700HG SmartPro 120V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 4 Outlets Full Isolation USB DB9

$778.88
Manufacturer:Eaton / Tripp Lite
Model:SMART700HG
Condition:New
Availability:In Stock
The Tripp Lite SMART700HG 700VA UPS offers medical-grade power protection with AVR and extended runtime. Its tower design includes USB & DB9 serial connectivity for reliable performance.
Datasheet

The Tripp Lite SMART700HG 700VA Smart AVR Medical Tower USB UPS is a UL60601-1 certified medical-grade line-interactive UPS system. It provides reliable battery backup and surge protection for essential medical equipment. Featuring automatic voltage regulation (AVR) it corrects brownouts and overvoltages without using battery power extending runtime.

This tower UPS offers 450W of power capacity with extended runtime options. It includes USB and DB9 serial ports for monitoring and control ensuring seamless integration with critical systems. Full isolation further enhances protection and reliability for connected medical devices.

APPLICATIONS
UPS Applications Hospital/Medical
COMMUNICATIONS
Communications Cable USB and DB9 serial cabling included
Communications Interface USB; DB9 Serial
Network Management Card Description Network management not supported
Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
PowerAlert Software For local monitoring via the UPSs built-in communication ports download PowerAlert software at https://tripplite.eaton.com/products/power-alert
DETAIILS
Manufacturer Tripp Lite
Manufacturer Part Number SMART700HG
FEATURES & SPECIFICATIONS
Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS
Grounding Details Grounding lug
High Availability UPS Features Hot swappable batteries; Surge/noise protection
LINE / BATTERY TRANSFER
High Voltage Transfer to Battery Power (Setpoint) 143
Low Voltage Transfer to Battery Power (Setpoint) 81
Transfer Time 2-4 milliseconds
OVERVIEW
UPC Code 037332095107
UPS Type Line-Interactive
STANDARDS & COMPLIANCE
Product Certifications CSA (Canada); UL 1778; UL 60601-1; NOM (Mexico)
Product Compliance RoHS; FCC Part 15 Class A (USA)
SURGE / NOISE SUPPRESSION
AC Suppression Joule Rating 480
AC Suppression Response Time Instantaneous
EMI / RFI AC Noise Suppression Yes
USER INTERFACE ALERTS & CONTROLS
Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced alarm will re-sound to indicate low-battery status
Audible Alarm Audible alarm indicates power-failure overload and low-battery conditions
LED Indicators 5 LEDs indicate line power battery power overload voltage regulation and battery low/replace status
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
VOLTAGE REGULATION
Overvoltage Correction Input voltages between 126 and 143 are reduced by 9%
Severe Undervoltage Correction Input voltages between 81 and 95 are boosted by 21%
Undervoltage Correction Input voltages between 96 and 106 are boosted by 10%
Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 81 to 143
Battery
Battery Access Battery access door
Battery Recharge Rate (Included Batteries) Less than 4 hours from 10% to 90%
Battery Replacement Description Hot-swappable user replaceable batteries
DC System Voltage (VDC) 36
Expandable Runtime No
Runtime Full Load (min.) 18 min. (450W)
Runtime Half Load (min.) 42 min. (225W)
Battery Type Valve Regulated Lead Acid (VRLA)
Details
Category UPS System
Environmental
AC Mode BTU / Hr. (Full Load) 97.7
AC Mode Efficiency Rating (100% Load) 94%
Battery Mode Heat Dissipation (BTU/Hr) @ Full Load 189.1
Battery Mode Heat Dissipation (BTU/Hr) @ Half Load 114.3
Operating Temperature Range 32 to 104F (0 to 40C)
Relative Humidity 0-95% non-condensing
Storage Temperature Range 5 to 122F (-15 to 50C)
Input
Input Circuit Breakers 10A
Input Cord Length (ft.) 6
Input Cord Length (m) 1.83
Input Phase Single-Phase
Maximum Input Amps 6
Nominal Input Voltage(s) Supported 120V AC
Rated input current (Maximum Load) 5.5A
Recommended Electrical Service 15A 120V
UPS Input Connection Type 5-15P-HG
UPS Input Cord Length (ft.) 6
UPS Input Cord Length (m) 1.8
Isolation
Leakage Current Equal to 100 microamps
Output Isolation Transformer Hospital grade load isolation transformer
Output
Frequency Compatibility 60 Hz
Individually Controllable Load Banks No
Nominal Output Voltage(s) Supported 115V; 120V
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery Mode) PWM sine wave
Output Capacity (kVA) 0.7
Output Capacity (kW) 0.45
Output Capacity (VA) 700
Output Capacity (Watts) 450
Output Receptacle Details Hospital grade output receptacles
Output Receptacles (4) 5-15R
Output Voltage Regulation (Battery Mode) 115V (+/- 5%)
Output Voltage Regulation (Line Mode) -18% +8%
Power Factor 0.6
Physical
Cooling Method Fan
Primary Form Factor Tower
Primary UPS Depth (mm) 229
Primary UPS Height (mm) 325
Primary UPS Width (mm) 191
Shipping Dimensions (hwd / cm) 43.18 x 28.45 x 33.02
Shipping Dimensions (hwd / in.) 17.00 x 11.20 x 13.00
Unit Dimensions (hwd / in.) 12.500 x 7.500 x 9.500
Unit Weight (kg) 20.05
Unit Weight (lbs.) 44.200
UPS Housing Material PVC
UPS Power Module Dimensions (hwd cm) 32.51 x 19.05 x 22.86
UPS Power Module Dimensions (hwd in.) 12.8 x 7.5 x 9
UPS Power Module Weight (kg) 20.05
UPS Power Module Weight (lbs.) 44.2
Rack Height 0U
Shipping Weight (kg) 20.55
Shipping Weight (lbs.) 45.30
Warranty
Warranty/Returns 30 Days
