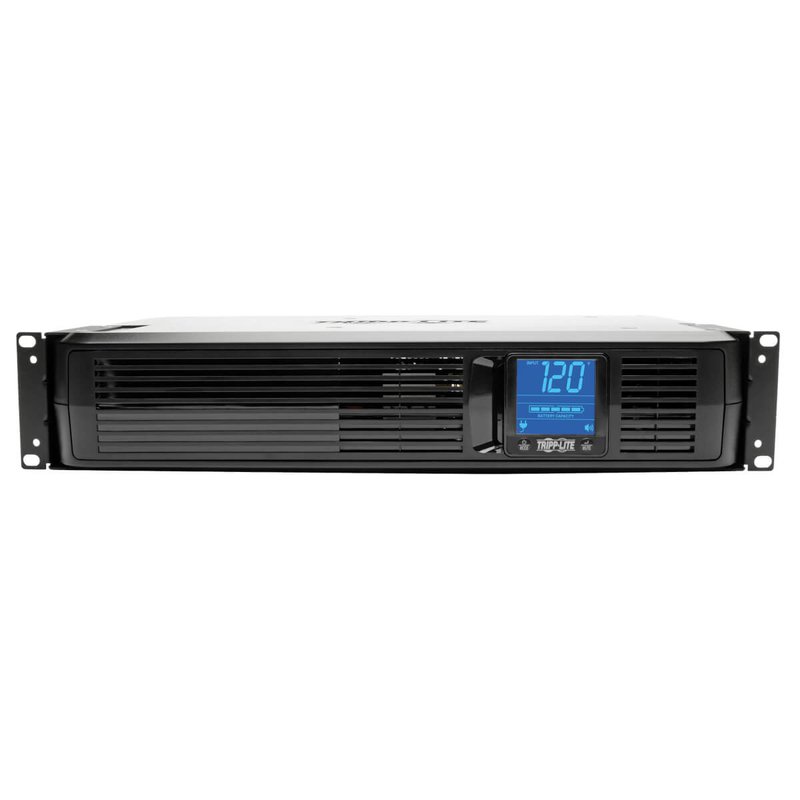

Tripp Lite SMART1200LCD SmartPro LCD 120V 1200VA 700W Line-Interactive UPS AVR 2U Rack/Tower LCD USB DB9 Serial 8 Outlets
$345.48
Manufacturer:Eaton / Tripp Lite
Model:SMART1200LCD
Condition:New
Availability:In Stock
Condition:New
Availability:In Stock
- Power Protection
- Eaton / Tripp Lite
- UPS System
- SMART Series
- UPS Battery Backup
- Tripp Lite SMART1200LCD SmartPro LCD 120V 1200VA 700W Line-Interactive UPS AVR 2U Rack/Tower LCD USB DB9 Serial 8 Outlets
Datasheet
The Tripp Lite SMART1200LCD 1200VA UPS is a versatile power protection solution for servers workstations and network devices. Featuring line-interactive topology AVR (Automatic Voltage Regulation) and a 1200VA capacity it safeguards connected equipment from power fluctuations surges and outages. The 2U rack/tower design allows for flexible installation in various environments.
The intuitive LCD interface displays key UPS information including battery status and load levels. USB and DB9 communication ports enable convenient monitoring and control through connected systems. The SMART1200LCD ensures business continuity and protects valuable data during critical power events.
| APPLICATIONS | |
| UPS Applications | Home/Office Desktop; Audio/Video; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality |
| COMMUNICATIONS | |
| Communications Cable | USB and DB9 Serial cabling included |
| Communications Interface | Contact closure; DB9 Serial; USB (HID enabled) |
| Network Management Card Description | Network management not supported |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions; DB9 provides contact-closure notification of AC Present (pins 19 connected) and AC Fail (pins 18 connected) |
| PowerAlert Software | For local monitoring via the UPSs built-in communication ports download PowerAlert software at https://tripplite.eaton.com/products/power-alert |
| WatchDog Compatibility | Supports Watchdog application OS and hard-reboot restart options for remote applications |
| DETAIILS | |
| Manufacturer | Tripp Lite |
| Manufacturer Part Number | SMART1200LCD |
| FEATURES & SPECIFICATIONS | |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Green Energy-Saving Features | Greater than 95% efficiency - GREEN UPS |
| High Availability UPS Features | Automatic Voltage Regulation (AVR); Hot swappable batteries; Surge/noise protection |
| LINE / BATTERY TRANSFER | |
| High Voltage Transfer to Battery Power (Setpoint) | 147 |
| Low Voltage Transfer to Battery Power (Setpoint) | 75 |
| Transfer Time | 4 milliseconds (AC to battery mode); 1 millisecond (Battery to AC mode) |
| OVERVIEW | |
| UPC Code | 037332126122 |
| UPS Type | Line-Interactive |
| STANDARDS & COMPLIANCE | |
| Product Certifications | CSA (Canada); NOM (Mexico); UL 1778 |
| Product Compliance | RoHS; FCC Part 15 Class B (USA) |
| SURGE / NOISE SUPPRESSION | |
| AC Suppression Joule Rating | 870 |
| AC Suppression Response Time | Instantaneous |
| EMI / RFI AC Noise Suppression | Yes |
| UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet |
| UPS Dataline Suppression Details | 168 joules; Compatible with POE applications |
| USER INTERFACE ALERTS & CONTROLS | |
| Alarm Cancel Operation | Press the MUTE/ENTER button during a power failure to silence the alarm; Once silenced alarm will re-sound to indicate low-battery status |
| Audible Alarm | Audible alarm indicates power-failure and low-battery status; Alarm can be disabled entirely via front panel LCD interface (see manual) |
| Front Panel LCD Display | Backlighted LCD screen offers detailed UPS status information configuration options and Error message reporting; STATUS INFORMATION includes Input Voltage Output Voltage Estimated Runtime (minutes) Output Load Percentage Output Load Wattage Battery Charge Percentage Graphical 5-Bar Battery Charge Level and UPS Operating Mode Display / CONFIGURATION OPTIONS include Power Sensitivity LCD Status Information Scrolling Alarm Disable LCD Brightness and Self Test / REPORTED ERROR MESSAGES include Replace-Battery and Overload conditions; LCD Screen rotates for vertical or horizontal UPS placement |
| LED Indicators | Front panel LCD display |
| Switches | ON/OFF/MODE button provides UPS on/off power control (long-press) and advances the LCD screen display (short tap); MUTE/ENTER button provides temporary alarm cancel plus selection and confirmation of on-screen configuration options |
| VOLTAGE REGULATION | |
| Overvoltage Correction | Input voltages between 128 and 147 are reduced by 12% |
| Severe Undervoltage Correction | Input voltages between 75 and 92 are boosted by 30% |
| Undervoltage Correction | Input voltages between 92 and 107 are boosted by 14% |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147 |
| Battery | |
| Battery Recharge Rate (Included Batteries) | Less than 4.5 hours from 10% to 90% |
| Battery Replacement Description | IMPORTANT BATTERY REPLACEMENT INFORMATION > If your SMART1200LCD UPS has no battery replacement door please contact a local electronics repair technician to source and install a matching replacement battery; If your SMART1200LCD UPS is equipped with a battery access door please order Tripp Lite RBC1500 (quantity 1) replacement battery |
| DC System Voltage (VDC) | 24 |
| Expandable Runtime | No |
| Runtime Full Load (min.) | 4 min. (700W) |
| Runtime Half Load (min.) | 14.3 min. (350W) |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Details | |
| Category | UPS System |
| Environmental | |
| AC Mode BTU / Hr. (Full Load) | 80 |
| AC Mode Efficiency Rating (100% Load) | 97% |
| Audible Noise | 2000 |
| Operating Temperature Range | 32 to 104F (0 to 40C) |
| Relative Humidity | Up to 95% non-condensing |
| Storage Temperature Range | 5 to 122F (-15 to 50C) |
| Operating Elevation | 0-6562 ft. (0-2000 m) |
| Input | |
| Input Circuit Breakers | 10A |
| Input Phase | Single-Phase |
| Maximum Input Amps | 7 |
| Nominal Input Voltage(s) Supported | 120V AC |
| Rated input current (Maximum Load) | 7A |
| Recommended Electrical Service | 15A 120V |
| UPS Input Connection Type | 5-15P; Right-Angled |
| UPS Input Cord Length (ft.) | 6 |
| UPS Input Cord Length (m) | 1.8 |
| Output | |
| Frequency Compatibility | 60 Hz |
| Individually Controllable Load Banks | No |
| Nominal Output Voltage(s) Supported | 110V; 115V; 120V |
| Nominal Voltage Details | 115v nominal output in battery mode |
| Output AC Waveform (AC Mode) | Sine wave |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Output Capacity (kVA) | 1.2 |
| Output Capacity (kW) | 0.7 |
| Output Capacity (VA) | 1200 |
| Output Capacity (Watts) | 700 |
| Output Receptacles | (8) 5-15R |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Output Voltage Regulation (Line Mode) | -18% +8% |
| Power Factor | 0.6 |
| Physical | |
| Installation Form Factors Supported with Included Accessories | 2 post 19 inch rackmount; 2 post front mount; 4 post 19 inch rackmount; Tower |
| Minimum Required Rack Depth (cm) | 35.56 |
| Minimum Required Rack Depth (inches) | 14 |
| Mounting Details | Included mounting brackets enable installation in 2 and 4 post racks plus upright tower configurations; Set of 4 rubber-feet enable no-slip horizontal desktop placement |
| Primary Form Factor | Rackmount |
| Primary UPS Depth (mm) | 267 |
| Primary UPS Height (mm) | 89 |
| Primary UPS Width (mm) | 440 |
| Shipping Dimensions (hwd / cm) | 18.54 x 38.35 x 54.10 |
| Shipping Dimensions (hwd / in.) | 7.30 x 15.10 x 21.30 |
| Unit Weight (kg) | 11.52 |
| Unit Weight (lbs.) | 25.4000 |
| UPS Housing Material | ABS |
| UPS Power Module Dimensions (hwd cm) | 8.86 x 44.02 x 26.67 |
| UPS Power Module Dimensions (hwd in.) | 3.49 x 17.33 x 10.5 |
| UPS Power Module Weight (kg) | 12.05 |
| UPS Power Module Weight (lbs.) | 26.56 |
| Rack Height | 2U |
| Shipping Weight (kg) | 12.93 |
| Shipping Weight (lbs.) | 28.50 |
| Warranty | |
| Warranty/Returns | 30 Days |
