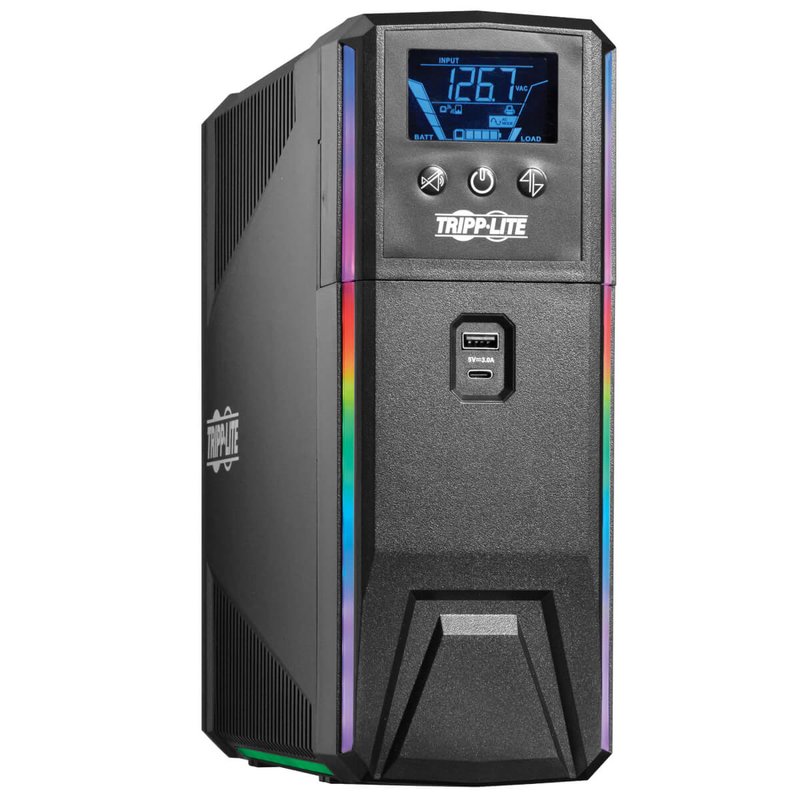

Tripp Lite SMART1000PSGLCD 1000VA 600W 120V Pure Sine Wave Gaming UPS Battery Backup - LCD AVR RGB LEDs USB Charging Power Saving UPS Battery Backup

Tripp Lite SMART1000PSGLCD 1000VA 600W 120V Pure Sine Wave Gaming UPS Battery Backup - LCD AVR RGB LEDs USB Charging Power Saving

$229.50
Manufacturer:Eaton / Tripp Lite
Model:SMART1000PSGLCD
Condition:New
Availability:In Stock
The Tripp Lite SMART1000PSGLCD UPS safeguards gaming setups with pure sine wave power. This 1000VA/600W battery backup protects against outages surges and dips ensuring uninterrupted gameplay and preventing data loss.
Datasheet

The Tripp Lite SMART1000PSGLCD Pure Sine Wave Gaming UPS Battery Backup provides premium power protection for gaming consoles PCs and peripherals. Delivering 1000VA/600W of pure sine wave output it safeguards against power outages surges and voltage dips ensuring uninterrupted gameplay and preventing data loss. The LCD interface displays real-time power conditions and battery status.

Equipped with multiple outlets this UPS offers surge suppression and battery backup for critical components. Its pure sine wave output mimics utility power making it ideal for sensitive electronics. The SMART1000PSGLCD is a reliable solution for keeping your gaming setup safe and powered during unexpected outages.

APPLICATIONS
UPS Applications Home/Office Desktop; High-End Desktop/Small Network; Audio/Video; Computer Gaming; Retail/Point of Sale; Hospitality
COMMUNICATIONS
Communications Cable USB cable included
Communications Interface USB (HID enabled)
Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
PowerAlert Software For local monitoring via the UPSs built-in communication ports download PowerAlert software at https://tripplite.eaton.com/products/power-alert
WatchDog Compatibility Supports Watchdog application OS and hard-reboot restart options for remote applications
DETAIILS
Manufacturer Tripp Lite
Manufacturer Part Number SMART1000PSGLCD
FEATURES & SPECIFICATIONS
Cold Start (Startup in Battery Mode During a Power Failure) Yes
Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets
High Availability UPS Features Automatic Voltage Regulation (AVR); Surge/noise protection
LINE / BATTERY TRANSFER
High Voltage Transfer to Battery Power (Setpoint) 145V
Low Voltage Transfer to Battery Power (Setpoint) 97V
Transfer Time 6ms typical 10ms max
OVERVIEW
UPC Code 037332253750
UPS Type Line-Interactive
STANDARDS & COMPLIANCE
Product Certifications RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778
Product Compliance FCC Part 15 Class B (USA)
SURGE / NOISE SUPPRESSION
AC Suppression Joule Rating 316
AC Suppression Response Time Instantaneous
EMI / RFI AC Noise Suppression Yes
UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
USER INTERFACE ALERTS & CONTROLS
Alarm Cancel Operation Alarm mute operation supported
Audible Alarm Audible alarm indicates Battery Mode Full Charge (sounds every 10 seconds) Battery Mode Low Charge (Sounds every 1 second) Replace Battery (Sounds every 2 seconds) Fault (Sounds continuously)
Front Panel LCD Display LCD screen offers detailed UPS status information configuration options and error message reporting; STATUS INFORMATION Input voltage Input frequency Battery voltage Battery capacity Estimated runtime Output voltage Output frequency Output watts Output load % Master outlet power consumption (watts) Detachable LCD module battery voltage and Firmware revision; CONFIGURATION OPTIONS Eco-mode off/on alarm disable and LED lighting configurations; ERROR MESSAGES Replace battery overload and critical fault (see manual for complete listing)
Switches Off/On button; Mute button; Up/Down button
VOLTAGE REGULATION
Overvoltage Correction Input voltages between 132 and 145 are reduced by 10.3%
Undervoltage Correction Input voltages between 97 and 108 are boosted by 11.5%
Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation during brownouts as low as 97V and overvoltages up to 145V
Battery
Battery Recharge Rate (Included Batteries) 7 hours from 10% to 90%
DC System Voltage (VDC) 24
Expandable Runtime No
Runtime Full Load (min.) 2 min. (600W)
Runtime Half Load (min.) 7 min. (300W)
Battery Type Valve Regulated Lead Acid (VRLA)
Details
Category UPS System
Environmental
AC Mode BTU / Hr. (Full Load) 98
AC Mode Efficiency Rating (100% Load) >96%
Operating Temperature Range 32 to 104F (0 to 40C)
Relative Humidity Up to 90% non-condensing
Storage Temperature Range 5 to 122F (-15 to 50C)
Input
Input Circuit Breakers 15A
Input Phase Single-Phase
Maximum Input Amps 12
Nominal Input Voltage(s) Supported 120V AC
Rated input current (Maximum Load) 12A
Recommended Electrical Service 15A 120V
UPS Input Connection Type 5-15P
UPS Input Cord Length (ft.) 5
UPS Input Cord Length (m) 1.5
Output
Frequency Compatibility 50 / 60 Hz
Frequency Compatibility Details Automatic frequency selection
Individually Controllable Load Banks No
Nominal Output Voltage(s) Supported 120V
Output AC Waveform (AC Mode) Pure Sine wave
Output AC Waveform (Battery Mode) Pure Sine wave
Output Capacity (kVA) 1
Output Capacity (kW) 0.6
Output Capacity (VA) 1000
Output Capacity (Watts) 600
Output Receptacles (8) 5-15R
Output Voltage Regulation (Battery Mode) 120V (10%)
Output Voltage Regulation (Line Mode) 120V (10%)

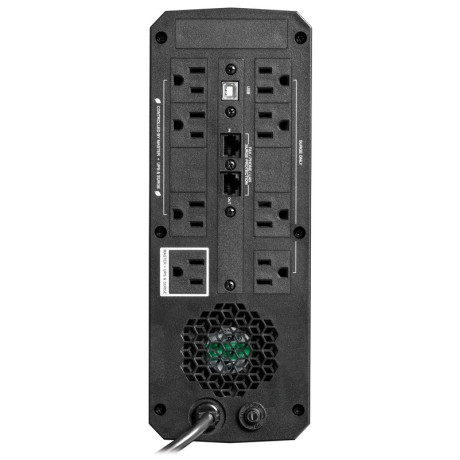

UPS Output Receptacles (Surge Suppression Only) 4 UPS outlets 4 surge-only outlets
Physical
Cooling Method Fan
Installation Form Factors Supported with Included Accessories Tower
Primary Form Factor Tower
Primary UPS Depth (mm) 308
Primary UPS Height (mm) 280
Primary UPS Width (mm) 99
Shipping Dimensions (hwd / in.) 14.80 x 7.28 x 14.76
Unit Dimensions (hwd / in.) 11.024 x 3.898 x 12.126
Unit Weight (kg) 8.44
Unit Weight (lbs.) 18.610
UPS Housing Material ABS
UPS Power Module Dimensions (hwd in.) 11.024 x 3.898 x 12.126
UPS Power Module Weight (kg) 8.98
UPS Power Module Weight (lbs.) 19.8
Shipping Weight (kg) 10.21
Warranty
Warranty/Returns 30 Days
