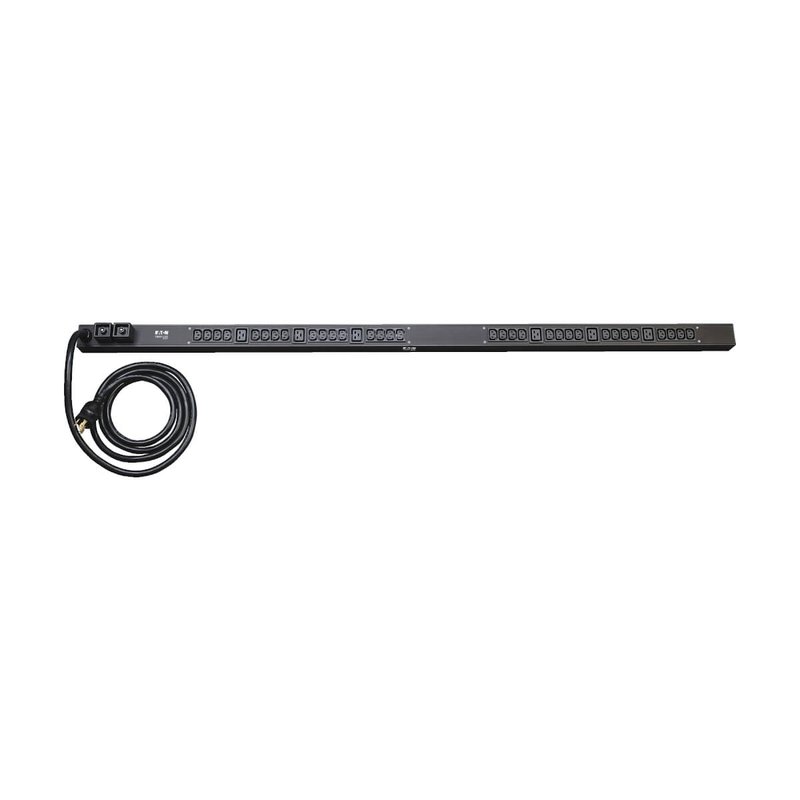

Tripp Lite PDUV30HV 5.5kW Single-Phase 208/230V Basic PDU 38 Outlets (32 C13 and 6 C19) NEMA L6-30P Input 10 ft. (3.05 m) Cord 0U Vertical PDU Series

Tripp Lite PDUV30HV 5.5kW Single-Phase 208/230V Basic PDU 38 Outlets (32 C13 and 6 C19) NEMA L6-30P Input 10 ft. (3.05 m) Cord 0U Vertical

$316.93
Manufacturer:Eaton / Tripp Lite
Model:PDUV30HV
Condition:New
Availability:In Stock
The Tripp Lite PDUV30HV Basic PDU distributes 30A of 208/240V power via 6 C19 and 32 C13 outlets. Its 0U vertical design and L6-30P input optimize power distribution in high-density setups.
Datasheet

The Tripp Lite PDUV30HV Basic PDU provides reliable power distribution in data centers server rooms and network closets. Distributing 30 amps of 208/240V power this unit features 6 C19 and 32 C13 outlets accommodating a wide range of devices. Its L6-30P input ensures compatibility with common power sources.

The 0U vertical design maximizes space efficiency in rack environments allowing for optimal airflow and cable management. This robust PDU simplifies power connectivity and ensures consistent performance for critical equipment.

DETAIILS
Manufacturer Tripp Lite
Manufacturer Part Number PDUV30HV
OVERVIEW
PDU Type Basic
UPC Code 037332138910
STANDARDS & COMPLIANCE
Product Certifications CAN/CSA-C22.2 No. 62368-1 (Canada); NOM (Mexico); UL 62368-1
Product Compliance RoHS
SURGE / NOISE SUPPRESSION
Automatic Shut-Off No
Details
Category Power Distribution Units (PDUs)
Environmental
Operating Temperature Range 32 to 104F (0 to 40C)
Relative Humidity 5% to 95% non-condensing
Storage Temperature Range -22 to 122F (-30 to 50C)
Operating Elevation 0-10000 ft. (0-3000 m)
Input
Input Connection Type NEMA L6-30P
Input Cord Length (ft.) 10
Input Cord Length (m) 3.05
Input Phase Single-Phase
Maximum Input Amps 24
Maximum Input Amps Details Agency de-rated to 24A continuous
PDU Input Voltage 208; 230
PDU Plug Type NEMA L6-30P
Recommended Electrical Service Single-phase 30A 208/230V service
Output
Frequency Compatibility 50 / 60 Hz
Output Capacity Details 5.5kW (230V) 5kW (208V) total capacity / 30A max (Agency de-rated to 24A) 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Output Nominal Voltage 208/230V
Output Receptacles (32) C13; (6) C19
Overload Protection Two 15A breakers protect 19 outlets each
Physical
PDU Form Factor Vertical (0U)
Shipping Dimensions (hwd / cm) 12.70 x 7.62 x 166.37
Shipping Dimensions (hwd / in.) 5.00 x 3.00 x 65.50
Unit Dimensions (hwd / cm) 162 x 5.7 x 9.5
Unit Dimensions (hwd / in.) 63.750 x 3.500 x 2.250
Unit Weight (kg) 3.63
Unit Weight (lbs.) 8
Form Factors Supported 0u vertical installation in equipment racks plus under-counter and wallmount
Material Of Construction Metal
Rack Height 0U
Shipping Weight (kg) 4.90
Shipping Weight (lbs.) 10.80
Warranty
Warranty/Returns 30 Days
