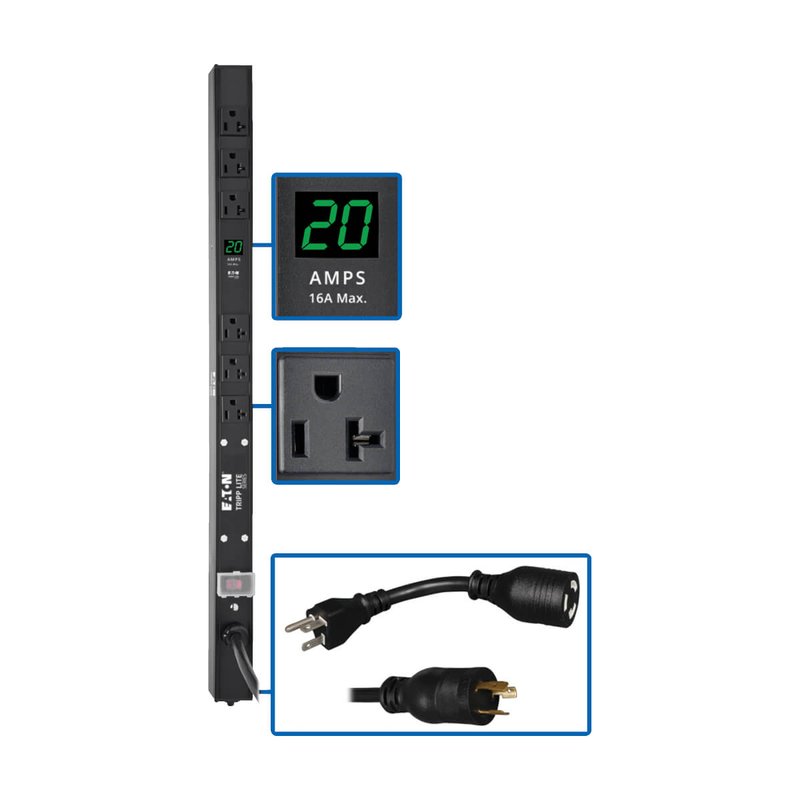

Tripp Lite PDUMV20-24 2kW Single-Phase Local Metered PDU 100-127V Outlets (6 5-15/20R) L5-20P/5-20P adapter 0U Vertical 24-in. PDU Series

Tripp Lite PDUMV20-24 2kW Single-Phase Local Metered PDU 100-127V Outlets (6 5-15/20R) L5-20P/5-20P adapter 0U Vertical 24-in.

$163.16
Manufacturer:Eaton / Tripp Lite
Model:PDUMV20-24
Condition:New
Availability:In Stock
The Tripp Lite PDUMV20-24 Metered PDU provides 20A 120V power distribution across six 5-15/20R outlets. Its 0U 24-inch design is perfect for rack-mount applications.
Datasheet

The Tripp Lite PDUMV20-24 Metered PDU distributes 120V 20A power to your critical equipment through six NEMA 5-15/20R outlets. Its compact 0U 24-inch design allows for versatile vertical or horizontal mounting in rack enclosures saving valuable rack space.

This metered PDU provides convenient power management and monitoring capabilities. Ideal for network closets data centers and other IT environments the PDUMV20-24 ensures reliable power distribution for your connected devices.

DETAIILS
Manufacturer Tripp Lite
Manufacturer Part Number PDUMV20-24
OVERVIEW
PDU Type Local Metered
UPC Code 037332182845
STANDARDS & COMPLIANCE
Product Certifications RETIE (Colombia); NOM (Mexico); UL 60950-1
Product Compliance RoHS; FCC Part 15 Class A (USA)
SURGE / NOISE SUPPRESSION
Automatic Shut-Off No
USER INTERFACE ALERTS & CONTROLS

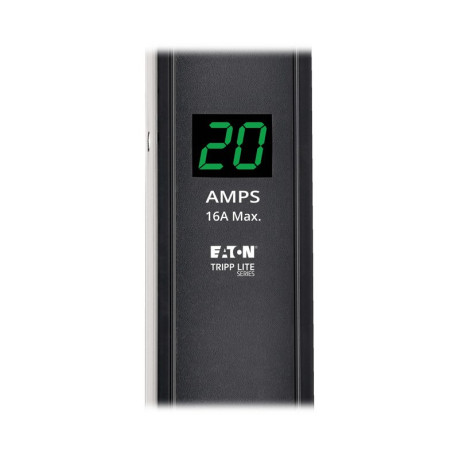

Front Panel LCD Display Digital meter reports PDU output current in amps
Switches Lighted on/off switch with integrated transparent saftey cover
Details
Category Power Distribution Units (PDUs)
Environmental
Operating Temperature Range 32 to 104F (0 to 40C)
Relative Humidity 5% to 95% non-condensing
Storage Temperature Range -22 to 122F (-30 to 50C)
Operating Elevation 0-10000 ft. (0-3000 m)
Input
Input Cord Length (ft.) 15
Input Cord Length (m) 4.57
Input Phase Single-Phase
Maximum Input Amps 16
Maximum Input Amps Details Agency de-rated to 16A continuous
PDU Input Voltage 100; 120; 125; 127
PDU Plug Type NEMA 5-20P; NEMA L5-20P
Recommended Electrical Service Single-phase 20A 100-127V service
Output
Frequency Compatibility 50 / 60 Hz
Output Capacity Details 2.03kW (127V) 1.92kW (120V) 1.6kW (100V) / 16A total capacity; 16A max per outlet
Output Nominal Voltage 100-127V
Output Receptacles (6) 5-15/20R
Overload Protection 20A circuit breaker
Physical
PDU Form Factor Vertical (0U)
Shipping Dimensions (hwd / cm) 5.59 x 15.75 x 67.31
Shipping Dimensions (hwd / in.) 2.20 x 6.20 x 26.50
Unit Dimensions (hwd / cm) 62.2 x 4.2 x 3.81
Unit Dimensions (hwd / in.) 24.470 x 1.640 x 1.500
Unit Weight (kg) 1.60
Unit Weight (lbs.) 3.52
Form Factors Supported Vertical
Material Of Construction Aluminum
Rack Height 0U
Shipping Weight (kg) 2.86
Shipping Weight (lbs.) 6.30
Warranty
Warranty/Returns 30 Days
