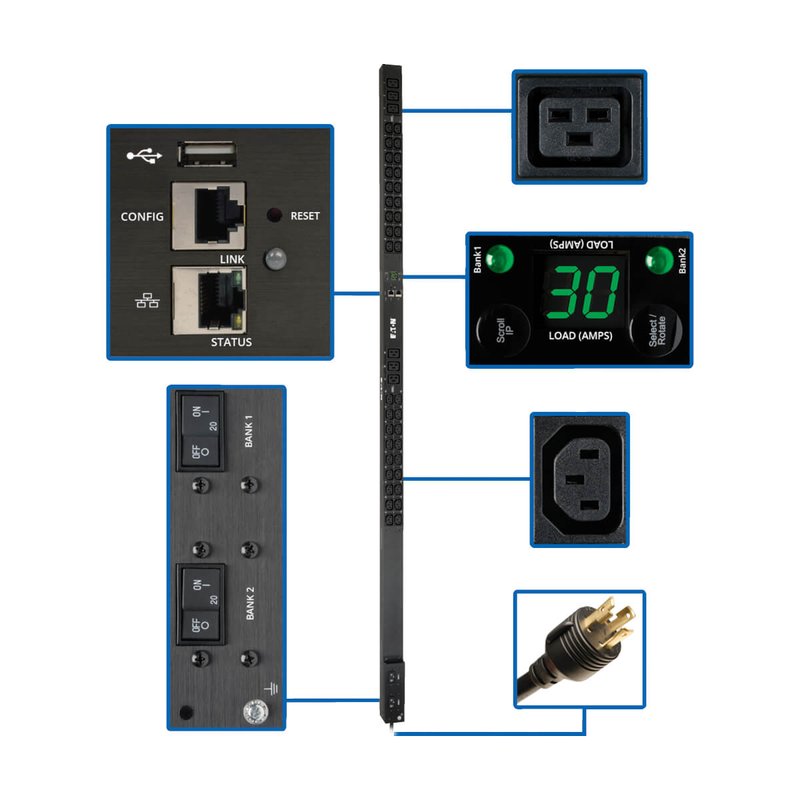

Tripp Lite PDUMNV30HV2LX Eaton 5.5kW Single-Phase Monitored PDU LX Interface 208/230V Outlets (36 C13/6 C19) L6-30P 10 ft. (3.05 m) Cord 0U 1.8m/70 in. Height TAA PDU Series

Tripp Lite PDUMNV30HV2LX Eaton 5.5kW Single-Phase Monitored PDU LX Interface 208/230V Outlets (36 C13/6 C19) L6-30P 10 ft. (3.05 m) Cord 0U 1.8m/70 in. Height TAA

$619.79
Manufacturer:Eaton / Tripp Lite
Model:PDUMNV30HV2LX
Condition:New
Availability:In Stock
The Tripp Lite PDUMNV30HV2LX is a vertical 0U PDU offering 208/240V 5/5.8kW output across 36 C13 and 6 C19 outlets. Features an L6-30P plug and a 10ft cord. TAA compliant.
Datasheet

The Tripp Lite PDUMNV30HV2LX is a single-phase monitored PDU ideal for high-density power distribution in data centers network closets and server rooms. It provides 208/240V output through 36 C13 and 6 C19 outlets delivering 5kW at 208V and 5.8kW at 240V. Its vertical 0U design maximizes space utilization.

Equipped with an L6-30P input plug and a 10-foot cord this PDU offers convenient installation and connection. TAA compliance ensures it meets government procurement requirements. Monitor and manage your power usage effectively with the PDUMNV30HV2LX.

COMMUNICATIONS
Communications Cable RJ45-to-DB9 configuration/console Access cable
Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)
PowerAlert Software LX Platform Interface: PowerAlert Device Manager
SNMP Compatibility Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface telnet SSH and SNMP management systems
DETAIILS
Manufacturer Tripp Lite
Manufacturer Part Number PDUMNV30HV2LX
FEATURES & SPECIFICATIONS
High Availability PDU Features Remote Network Notifications
OVERVIEW
PDU Type Monitored
UPC Code 037332204486
STANDARDS & COMPLIANCE
Product Certifications CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1
Product Compliance RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
SURGE / NOISE SUPPRESSION
Automatic Shut-Off No
USER INTERFACE ALERTS & CONTROLS
Current Measurement Accuracy (Amps) +/-2%
Front Panel LCD Display Digital meter reports PDU output current in amps Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top
LED Indicators Front panel LEDs indicate which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-21; Bank 2 LED indicates the meter is reporting load level for outlets 22-42; Both LEDs lighted indicates the meter is reporting load level for all outlets combined
Switches Press the SCROLL IP button and release to display the configured IP address in 2 digit intervals; Press the SELECT / ROTATE button and release after one second to advance the local display power power consumption for the 3 reported segments: Bank 1 Bank 2 and Banks 1+2; Press the SELECT / ROTATE button and release after two seconds to rotate the display 180 degrees
Details
Category Power Distribution Units (PDUs)
Environmental
Operating Temperature Range 32 to 104F (0 to 40C)
Relative Humidity 5% to 95% non-condensing
Storage Temperature Range -22 to 140F (-30 to 60C)
Operating Elevation 0-10000 ft. (0-3000 m)
Input
Input Cord Length (ft.) 10
Input Cord Length (m) 3.05
Input Phase Single-Phase
Maximum Input Amps 24
Maximum Input Amps Details Agency de-rated to 24A continuous
PDU Input Voltage 208; 230
PDU Plug Type NEMA L6-30P
Recommended Electrical Service Single-phase 30A 208/230V service
Output
Frequency Compatibility 50 / 60 Hz
Output Capacity Details 5.5kW (230V) 5kW (208V) total capacity / 30A max (Agency de-rated to 24A) 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Output Nominal Voltage 208/230V
Output Receptacles (36) C13; (6) C19
Overload Protection Two 20A breakers protect 21 outlets each
Physical
PDU Form Factor Vertical (0U)
Shipping Dimensions (hwd / cm) 10.80 x 14.71 x 184.15
Shipping Dimensions (hwd / in.) 4.25 x 5.79 x 72.50
Unit Dimensions (hwd / cm) 179.07 x 5.56 x 6.73
Unit Dimensions (hwd / in.) 70.500 x 2.190 x 2.650
Unit Weight (kg) 6.80
Unit Weight (lbs.) 15
Form Factors Supported 0U vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
Material Of Construction Metal
Rack Height 0U
Shipping Weight (kg) 7.48
Shipping Weight (lbs.) 16.50
Warranty
Warranty/Returns 30 Days
