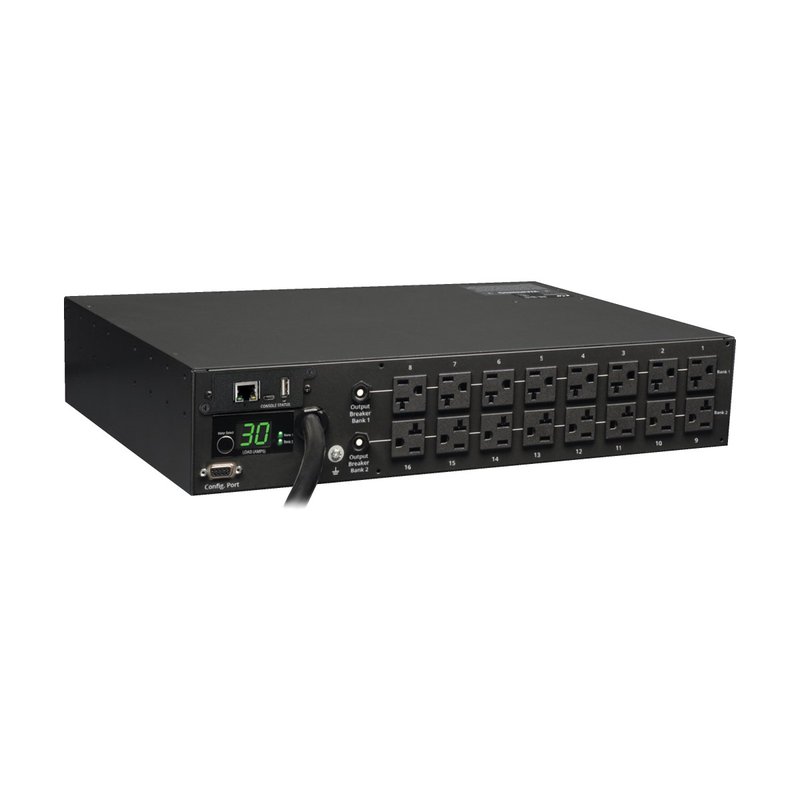

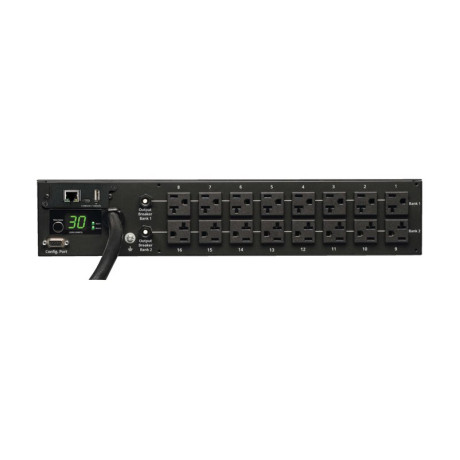

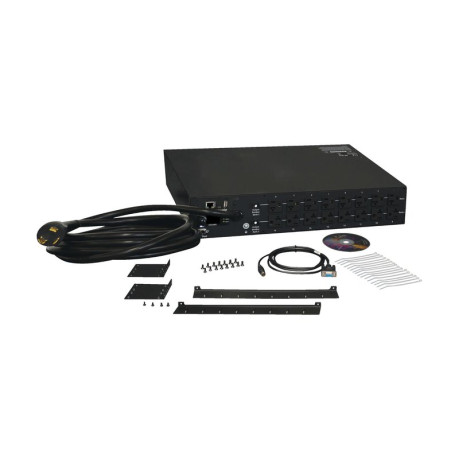

Tripp Lite PDUMNH30 Eaton 2.9kW Single-Phase Monitored PDU - 120V Outlets (16 5-15/20R) L5-30P 10 ft. (3.05 m) Cord 2U Rack-Mount TAA PDU Series

Tripp Lite PDUMNH30 Eaton 2.9kW Single-Phase Monitored PDU - 120V Outlets (16 5-15/20R) L5-30P 10 ft. (3.05 m) Cord 2U Rack-Mount TAA

$664.40
Manufacturer:Eaton / Tripp Lite
Model:PDUMNH30
Condition:New
Availability:In Stock
The Tripp Lite PDUMNH30 120V 30A monitored PDU provides 16 outlets (5-15/20R) in a horizontal 2U rack-mount form factor. Ideal for distributing power to network devices.
Datasheet

The Tripp Lite PDUMNH30 Monitored PDU distributes 120V 30A power to up to 16 devices via its 5-15/20R outlets. This horizontal PDU occupies 2U of rack space providing a convenient power solution for network equipment in data centers and server rooms.

Featuring an L5-30P input plug this unit simplifies power distribution and monitoring. Its robust design ensures reliable performance for critical applications.

COMMUNICATIONS
Communications Cable Micro-USB- to-USB A configuration/console Access cable
Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)
Network Monitoring Port RJ45 Network port Micro-USB Configuration port USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
PowerAlert Software LX Platform Interface: PowerAlert Device Manager
SNMP Compatibility Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface telnet SSH and SNMP management systems
DETAIILS
Manufacturer Tripp Lite
Manufacturer Part Number PDUMNH30
FEATURES & SPECIFICATIONS
High Availability PDU Features Remote Network Notifications
OVERVIEW
PDU Type Monitored
UPC Code 037332157652
STANDARDS & COMPLIANCE
Product Certifications NOM (Mexico); UL 60950-1
Product Compliance RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
SURGE / NOISE SUPPRESSION
Automatic Shut-Off No
USER INTERFACE ALERTS & CONTROLS
Front Panel LCD Display Digital current meter reports PDU output current in amps for 3 loading segments (Bank 1 Bank 2 and Banks 1&2 combined)
LED Indicators Front panel LEDs indicate which loading segment the digital LCD current display is reporting; Bank 1 current level is reported when the Bank 1 LED is on; Bank 2 current level is reported when the Bank 2 LED is on; Total output of both banks is reported when both LEDs are on
Switches Toggle switch prompts local display of power consumption in three segments (1) Breakered load bank 1 (2) Breakered load bank 2 (3) Breakered banks 1&2 combined
Details
Category Power Distribution Units (PDUs)
Environmental
Operating Temperature Range 32 to 104F (0 to 40C)
Relative Humidity 5% to 95% non-condensing
Storage Temperature Range -22 to 122F (-30 to 50C)
Operating Elevation 0-10000 ft. (0-3000 m)
Input
Input Cord Length (ft.) 10
Input Cord Length (m) 3.05
Input Phase Single-Phase
Maximum Input Amps 24
Maximum Input Amps Details Agency de-rated to 24A continuous
PDU Input Voltage 120
PDU Plug Type NEMA L5-30P
Recommended Electrical Service Single-phase 30A 120V service
Output
Frequency Compatibility 50 / 60 Hz
Output Capacity Details 2.88kW (120V) / 24A total capacity; 20A max per breakered load bank; 16A max per outlet
Output Nominal Voltage 120V
Output Receptacles (16) 5-15/20R
Overload Protection Two 20A breakers protect 8 outlets each
Physical
Minimum Required Rack Depth (cm) 44.45
Minimum Required Rack Depth (inches) 17.5
PDU Form Factor Horizontal (2U)
Shipping Dimensions (hwd / cm) 20.32 x 53.34 x 43.18
Shipping Dimensions (hwd / in.) 8.00 x 21.00 x 17.00
Unit Dimensions (hwd / cm) 8.9 x 44.5 x 31.8
Unit Dimensions (hwd / in.) 3.500 x 17.500 x 12.500
Unit Weight (kg) 6.26
Unit Weight (lbs.) 13.8
Form Factors Supported 1U rackmount
Material Of Construction Metal
Rack Height 2U
Shipping Weight (kg) 7.67
Shipping Weight (lbs.) 16.90
Warranty
Warranty/Returns 30 Days
