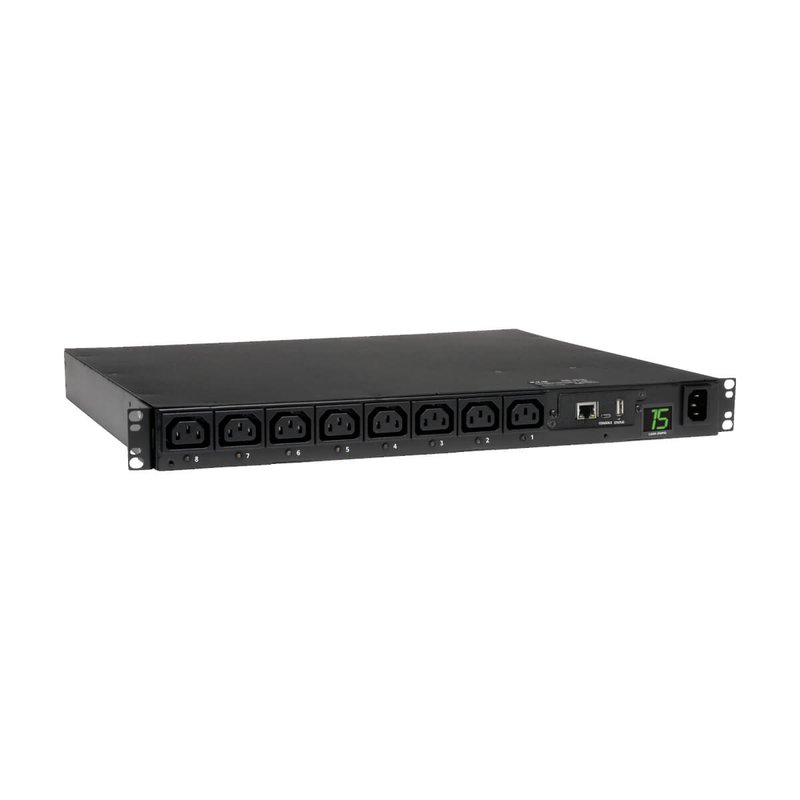

Tripp Lite PDUMH15HVNET Eaton 2.5kW Single-Phase 208/230V Switched PDU - LX Platform 8 C13 Outlets C14 Input 2m Cord 1U Rack-Mount TAA PDU Series

Tripp Lite PDUMH15HVNET Eaton 2.5kW Single-Phase 208/230V Switched PDU - LX Platform 8 C13 Outlets C14 Input 2m Cord 1U Rack-Mount TAA

$473.06
Manufacturer:Eaton / Tripp Lite
Model:PDUMH15HVNET
Condition:New
Availability:In Stock
The Tripp Lite PDU provides 8 C13 outlets from a single C14 input with individual outlet switching ideal for 200-240V rackmount applications. Supports up to 12A.
Datasheet

The Tripp Lite PDUMH15HVNET Switched PDU distributes 200-240V power to 8 C13 outlets from a single C14 input. This 1U horizontal mount unit allows individual outlet switching for remote power control and reboot of connected equipment.

With a 12A capacity this PDU is perfect for managing power in high-density rackmount environments providing reliable power distribution and control for servers and network devices.

COMMUNICATIONS
Communications Cable Micro-USB- to-USB A configuration/console Access cable
Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)
Network Monitoring Port RJ45 Network port Micro-USB Configuration port USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
PowerAlert Software LX Platform Interface: PowerAlert Device Manager
SNMP Compatibility Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface telnet SSH and SNMP management systems
DETAIILS
Manufacturer Tripp Lite
Manufacturer Part Number PDUMH15HVNET
FEATURES & SPECIFICATIONS
Grounding Back panel grounding lug
High Availability PDU Features Auto Probe Monitoring and Reboot (included); Auto Load Shedding
OVERVIEW
PDU Type Switched
UPC Code 037332139276
STANDARDS & COMPLIANCE
Product Certifications CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1
Product Compliance RoHS; CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
SURGE / NOISE SUPPRESSION
Automatic Shut-Off No
USER INTERFACE ALERTS & CONTROLS
Front Panel LCD Display Digital display reports total PDU output current in amps
LED Indicators 8 LEDs display power on-off status for each output receptacle
Details
Category Power Distribution Units (PDUs)
Environmental
Operating Temperature Range 32 to 104F (0 to 40C)
Relative Humidity 5% to 95% non-condensing
Storage Temperature Range -22 to 122F (-30 to 50C)
Operating Elevation 0-10000 ft. (0-3000 m)
Input
Input Connection Type C14 inlet
Input Cord Length (ft.) 6.5
Input Cord Length (m) 1.98
Input Phase Single-Phase
Maximum Input Amps 12
Maximum Input Amps Details Agency de-rated to 12A at 200 208 220 & 240V; Agency de-rated to 10A at 230V
PDU Input Voltage 208; 230
PDU Plug Type IEC-320 C14
Recommended Electrical Service Single-phase 12/10A 208/230V service
Output
Customized Load Management Receptacles 8 individually switched output receptacles
Frequency Compatibility 50 / 60 Hz
Output Capacity Details 2.5kW (208V) 2.3kW (230V) / 12A (10A CE) total capacity
Output Nominal Voltage 208/230V
Output Receptacles (8) C13
Physical
Minimum Required Rack Depth (cm) 43.43
Minimum Required Rack Depth (inches) 17.1
PDU Form Factor Horizontal (1U)
Shipping Dimensions (hwd / cm) 14.48 x 52.58 x 58.42
Shipping Dimensions (hwd / in.) 5.70 x 20.70 x 23.00
Unit Dimensions (hwd / cm) 287 x 439 x 376
Unit Dimensions (hwd / in.) 1.720 x 14.770 x 17.330
Unit Weight (kg) 4.08
Unit Weight (lbs.) 9.00
Form Factors Supported 1U rackmount Includes mounting accessories for 2-4 post racks
Material Of Construction Metal
Rack Height 1U
Shipping Weight (kg) 5.99
Shipping Weight (lbs.) 13.20
Warranty
Warranty/Returns 30 Days
