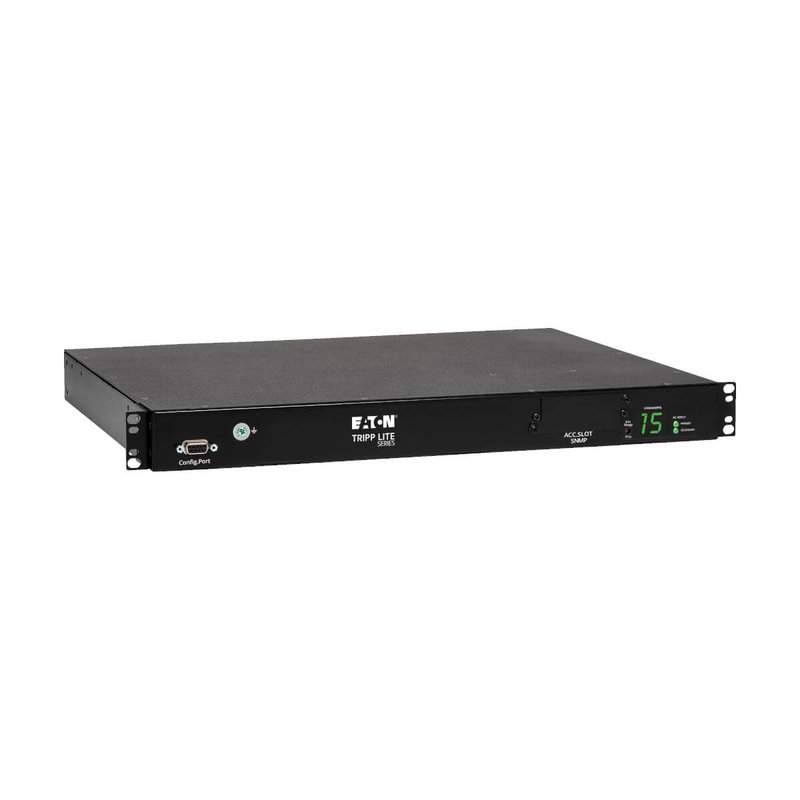

Tripp Lite PDUMH15HVAT 2.4kW Single-Phase Local Metered Automatic Transfer Switch PDU Two 200-240V C14 Inlets 10 C13 Outputs 1U TAA PDU Series

Tripp Lite PDUMH15HVAT 2.4kW Single-Phase Local Metered Automatic Transfer Switch PDU Two 200-240V C14 Inlets 10 C13 Outputs 1U TAA

$456.82
Manufacturer:Eaton / Tripp Lite
Model:PDUMH15HVAT
Condition:New
Availability:In Stock
The Tripp Lite PDUMH15HVAT metered ATS PDU provides 2kW/2.4kW 200/240V power with automatic transfer switching. Features (10) C13 and (2) C14 outlets plus 12ft C20 & C19 input cords in a 1U rackmount form factor.
Datasheet

The Tripp Lite PDUMH15HVAT Metered ATS PDU distributes reliable 2kW/2.4kW 200/240V power to connected equipment with the added redundancy of automatic transfer switching (ATS) between two input power sources. It features ten C13 outlets and two C14 outlets providing versatile connectivity for a variety of devices.

This 1U rackmount PDU includes 12-foot (3.6m) C20 and C19 input power cords and offers convenient front-panel metering for monitoring power consumption. The PDUMH15HVAT is ideal for ensuring uptime in critical applications.

DETAIILS
Manufacturer Tripp Lite
Manufacturer Part Number PDUMH15HVAT
FEATURES & SPECIFICATIONS
High Availability PDU Features Auto-Transfer Switching
OVERVIEW
PDU Type Local Metered; Auto-Transfer Switch
UPC Code 037332197900
STANDARDS & COMPLIANCE
Product Certifications EN 55032; GOST (Russia); EN 62040-2; NOM (Mexico); UL 60950-1
Product Compliance RoHS; CE (Europe); FCC Part 15 Class A (USA); UKCA; Trade Agreements Act (TAA)
SURGE / NOISE SUPPRESSION
Automatic Shut-Off No
USER INTERFACE ALERTS & CONTROLS
Front Panel LCD Display Digital display reports total PDU output current in amps
LED Indicators 8 LEDs display power on-off status for each C13 output receptacle plus 2 additional LEDs to indicate input power status for primary and secondary inputs
Switches Toggle switch near digital display enables the setting of "HI" for 220 230 or 240V nominal applications or "LO" for 200 or 208V applications
Details
Category Power Distribution Units (PDUs)
Environmental
Operating Temperature Range 32 to 104F (0 to 40C)
Relative Humidity 5% to 95% non-condensing
Storage Temperature Range -22 to 122F (-30 to 50C)
Operating Elevation 0-10000 ft. (0-3000 m)
Input
Input Connection Type C14 inlet
Input Cord Details Set of 2 C14 inlets and two included cordsets enable connection to separate PRIMARY and SECONDARY power sources
Input Cord Length (ft.) 12
Input Cord Length (m) 3.66
Input Phase Single-Phase
Maximum Input Amps 10
PDU Input Voltage 200; 208; 220; 230; 240
PDU Plug Type (2) IEC-320 C14
Recommended Electrical Service Two single-phase 10A 200-240V circuits
Output
Customized Load Management Receptacles Adding supported Network Management Card accessory offers upgrade path to switched PDU (8 C13 outlets are switchable upon upgrade); Network Management Card also can be inserted temporarily as a configuration tool to custom program power-on and power-off C13 outlet sequences with user-specified time delays in response to loss and restoration of primary input
Frequency Compatibility 50 / 60 Hz
Output Capacity Details 2.4kW (240V) 2.3kW (230V) 2.2kW (220V) 2.08kW (208V) 2.0kW (200V) / 10A total capacity
Output Nominal Voltage 200-240V
Output Receptacles (10) C13
Physical
Minimum Required Rack Depth (cm) 46.48
Minimum Required Rack Depth (inches) 18.3
PDU Form Factor Horizontal (1U)
Shipping Dimensions (hwd / cm) 11.00 x 51.51 x 57.99
Shipping Dimensions (hwd / in.) 4.33 x 20.28 x 22.83
Unit Dimensions (hwd / cm) 434 x 44 x 367
Unit Dimensions (hwd / in.) 1.710 x 17.320 x 14.450
Unit Weight (kg) 4.68
Unit Weight (lbs.) 10.32
Form Factors Supported 1U rackmount
Material Of Construction Steel
Rack Height 1U
Shipping Weight (kg) 7.06
Shipping Weight (lbs.) 15.56
Warranty
Warranty/Returns 30 Days
