Tripp Lite PDUMH15ATS 1.44kW 120V Single-Phase ATS/Local Metered PDU - 8 NEMA 5-15R Outlets Dual 5-15P Inputs 12 ft. Cords 1U TAA PDU Series

Tripp Lite PDUMH15ATS 1.44kW 120V Single-Phase ATS/Local Metered PDU - 8 NEMA 5-15R Outlets Dual 5-15P Inputs 12 ft. Cords 1U TAA

$354.49
Manufacturer:Eaton / Tripp Lite
Model:PDUMH15ATS
Condition:New
Availability:In Stock

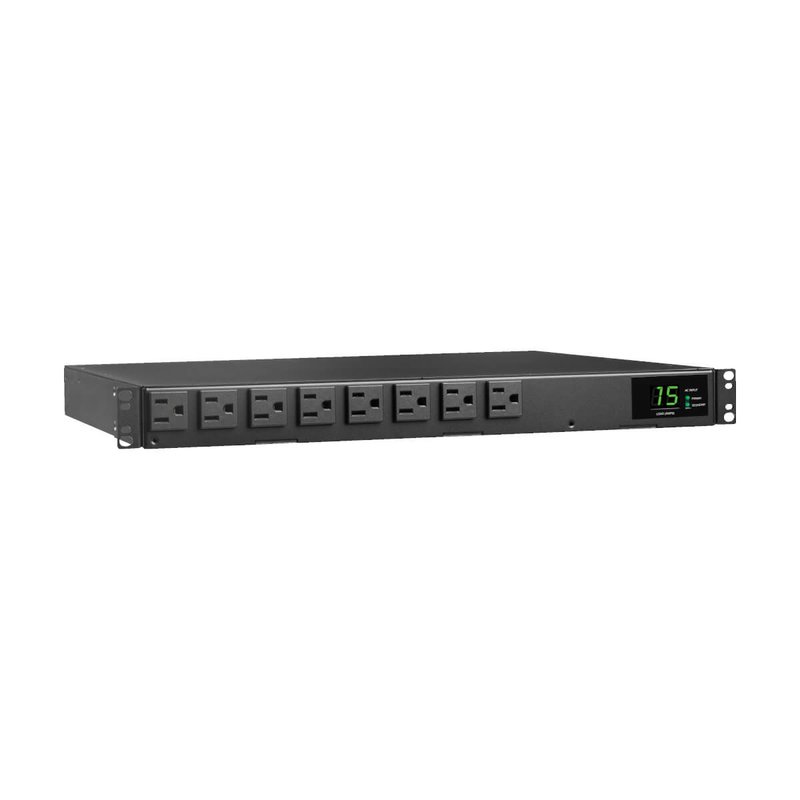

The Tripp Lite PDUMH15ATS ATS/Metered PDU provides automatic power switching to connected devices. Supports 120V 1.44kW 15A and features 8x 5-15R outlets & dual 5-15P input cords.
Datasheet

The Tripp Lite PDUMH15ATS Automatic Transfer Switch (ATS) / Metered PDU safeguards connected equipment from power failures. Supporting 120V and 1.44kW (15A) it offers 8x NEMA 5-15R outlets for powering your devices and includes dual NEMA 5-15P input cords for connection to redundant power sources.

This ATS PDU ensures continuous uptime with automatic switching between primary and secondary power sources. Ideal for critical applications it provides reliable power distribution and protection for servers network devices and other essential equipment.

DETAIILS
Manufacturer Tripp Lite
Manufacturer Part Number PDUMH15ATS
FEATURES & SPECIFICATIONS
Grounding Rear grounding lug
High Availability PDU Features Auto-Transfer Switching
OVERVIEW
PDU Type Auto-Transfer Switch; Local Metered
UPC Code 037332261366
STANDARDS & COMPLIANCE
Product Certifications CSA (Canada); NOM (Mexico); UL 60950-1
Product Compliance RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
SURGE / NOISE SUPPRESSION
Automatic Shut-Off No
USER INTERFACE ALERTS & CONTROLS
Front Panel LCD Display Two digit current meter reports whole PDU output load in amps
LED Indicators 8 front panel LEDs display power on / off status for each outlet plus 2 additional LEDs to indicate input power status for primary and secondary inputs
Details
Category Power Distribution Units (PDUs)
Environmental
Operating Temperature Range 32 to 104F (0 to 40C)
Relative Humidity 5% to 95% non-condensing
Storage Temperature Range -22 to 122F (-30 to 50C)
Operating Elevation 0-10000 ft. (0-3000 m)
Input
Input Cord Details Set of 2 inputs enable connection to separate PRIMARY and SECONDARY power sources
Input Cord Length (ft.) 12
Input Cord Length (m) 3.66
Input Phase Single-Phase
Maximum Input Amps 15
Maximum Input Amps Details Agency de-rated to 12A continuous
PDU Input Voltage 100; 120; 127
PDU Plug Type (2) NEMA 5-15P
Recommended Electrical Service 15A 120V
Output
Frequency Compatibility 50 / 60 Hz
Output Capacity Details 1.52kW (127V) 1.44kW (120V) 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet
Output Nominal Voltage 100V; 120V; 127V
Output Receptacles (8) 5-15R
Physical
Minimum Required Rack Depth (cm) 44.45
Minimum Required Rack Depth (inches) 17.5
PDU Form Factor Horizontal (1U)
Receptacle Color Black
Shipping Dimensions (hwd / in.) 5.30 x 20.80 x 23.30
Unit Dimensions (hwd / cm) 4.44 x 44.4 x 36.8
Unit Dimensions (hwd / in.) 1.750 x 17.500 x 14.500
Unit Weight (kg) 4.99
Unit Weight (lbs.) 11
Form Factors Supported 1U rackmount
Material Of Construction Metal
Rack Height 1U
Shipping Weight (kg) 7.74
Warranty
Warranty/Returns 30 Days
