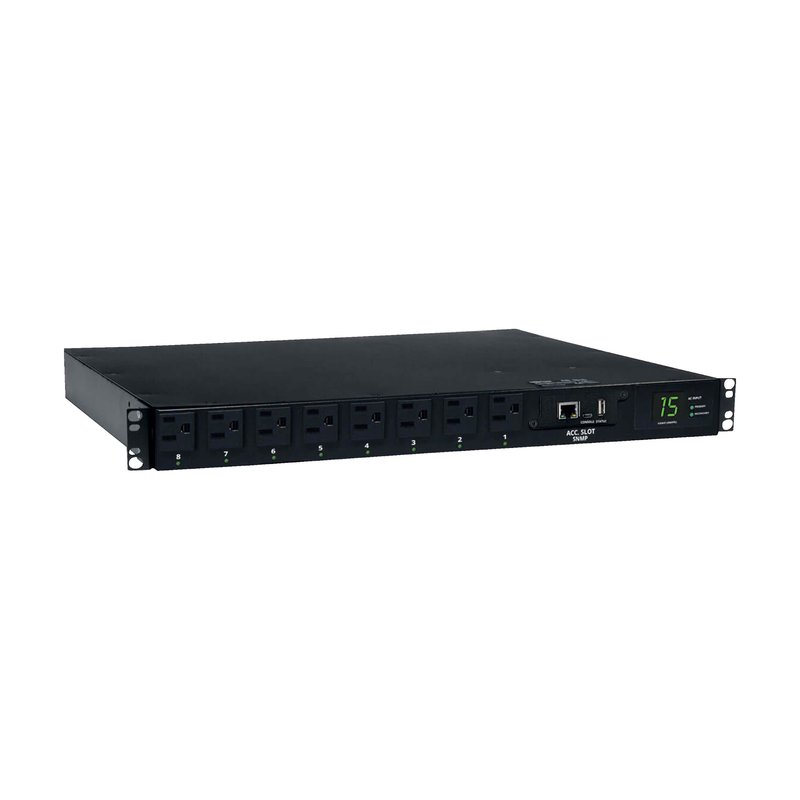

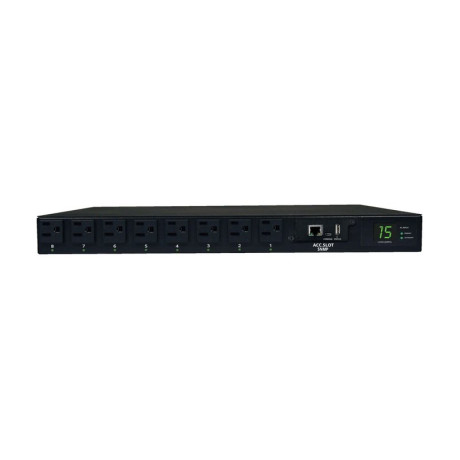

Tripp Lite PDUMH15ATNET 1.4kW Single-Phase Switched Automatic Transfer Switch PDU 2 120V 5-15P 15A Inputs 8 5-15R Outputs 1U TAA PDU Series

Tripp Lite PDUMH15ATNET 1.4kW Single-Phase Switched Automatic Transfer Switch PDU 2 120V 5-15P 15A Inputs 8 5-15R Outputs 1U TAA

$622.70
Manufacturer:Eaton / Tripp Lite
Model:PDUMH15ATNET
Condition:New
Availability:In Stock
The Tripp Lite PDUMH15ATNET ATS PDU provides reliable power distribution and automatic switching for critical equipment. Featuring 8x 5-15R outlets and dual 5-15P inputs this 1U rack-mountable unit ensures seamless power redundancy in 120V environments.
Datasheet

The Tripp Lite PDUMH15ATNET Automatic Transfer Switch (ATS) PDU offers advanced power protection and distribution for essential network devices. With 8 NEMA 5-15R outlets this 1U rack-mountable PDU distributes 120V 15A power and features dual NEMA 5-15P input connections for redundant power sources.

In the event of a primary power failure the PDUMH15ATNET automatically switches to the secondary input source ensuring continuous operation for connected equipment. This horizontal ATS PDU is ideal for data centers network closets and other mission-critical applications requiring seamless power availability.

COMMUNICATIONS
Communications Cable Micro-USB- to-USB A configuration/console Access cable
Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)
Network Monitoring Port RJ45 Network port Micro-USB Configuration port USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
PowerAlert Software LX Platform Interface: PowerAlert Device Manager
SNMP Compatibility Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface telnet SSH and SNMP management systems
DETAIILS
Manufacturer Tripp Lite
Manufacturer Part Number PDUMH15ATNET
FEATURES & SPECIFICATIONS
Grounding Rear grounding lug
High Availability PDU Features Auto Probe Monitoring and Reboot (included); Auto-Transfer Switching; Auto Load Shedding
OVERVIEW
PDU Type Auto-Transfer Switch; Switched
UPC Code 037332136428
STANDARDS & COMPLIANCE
Product Certifications CSA (Canada); NOM (Mexico); UL 60950-1
Product Compliance RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
SURGE / NOISE SUPPRESSION
Automatic Shut-Off No
USER INTERFACE ALERTS & CONTROLS
Front Panel LCD Display Digital display reports total PDU output current in amps
LED Indicators 8 LEDs display power on-off status for each output receptacle plus 2 additional LEDs to indicate input power status for primary and secondary inputs. Pre-installed WEBCARDLX provides Ethernet Link and Status LED's for network activity along with a system status LED for monitoring system operation.
Switches Reset button for LX Platform management card will reboot card without affecting the connected equipment.
Details
Category Power Distribution Units (PDUs)
Environmental
Operating Temperature Range 32 to 104F (0 to 40C)
Relative Humidity 5% to 95% non-condensing
Storage Temperature Range -22 to 122F (-30 to 50C)
Operating Elevation 0-10000 ft. (0-3000 m)
Input

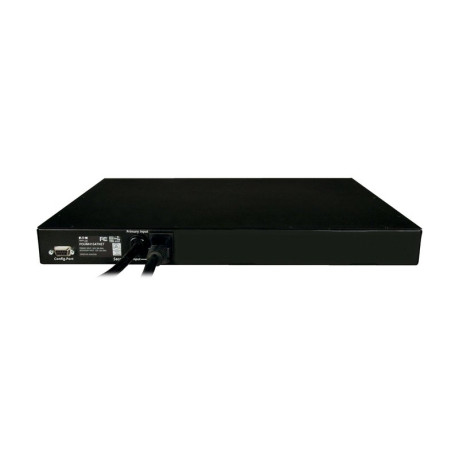

Input Cord Details Set of 2 inputs enable connection to separate PRIMARY and SECONDARY power sources
Input Cord Length (ft.) 12
Input Cord Length (m) 3.66
Input Phase Single-Phase
Maximum Input Amps 12
Maximum Input Amps Details Agency de-rated to 12A continuous
PDU Input Voltage 120
PDU Plug Type (2) NEMA 5-15P
Recommended Electrical Service Two single-phase 15A 120V circuits
Output
Customized Load Management Receptacles 8 individually switched output receptacles
Frequency Compatibility 50 / 60 Hz
Output Capacity Details 1.44kW (120V) / 12A total capacity; 12A max per outlet
Output Nominal Voltage 120V
Output Receptacles (8) 5-15R
Physical
Minimum Required Rack Depth (cm) 44.45
Minimum Required Rack Depth (inches) 17.5
PDU Form Factor Horizontal (1U)
Shipping Dimensions (hwd / cm) 13.46 x 52.83 x 58.93
Shipping Dimensions (hwd / in.) 5.30 x 20.80 x 23.20
Unit Dimensions (hwd / cm) 4.44 x 44.4 x 36.8
Unit Dimensions (hwd / in.) 1.750 x 17.500 x 14.500
Unit Weight (kg) 4.99
Unit Weight (lbs.) 11.00
Form Factors Supported 1U rackmount
Material Of Construction Metal
Rack Height 1U
Shipping Weight (kg) 7.26
Shipping Weight (lbs.) 16.00
Warranty
Warranty/Returns 30 Days
