Tripp Lite PDU3EVN10G60B 14.5kW 200-240V 3PH Monitored PDU - LX Interface Gigabit 48 Outlets IEC 309 60A Blue Input LCD 3 m Cord 0U 1.8 m Height TAA PDU Series

Tripp Lite PDU3EVN10G60B 14.5kW 200-240V 3PH Monitored PDU - LX Interface Gigabit 48 Outlets IEC 309 60A Blue Input LCD 3 m Cord 0U 1.8 m Height TAA

$1,456.74
Manufacturer:Eaton / Tripp Lite
Model:PDU3EVN10G60B
Condition:New
Availability:In Stock

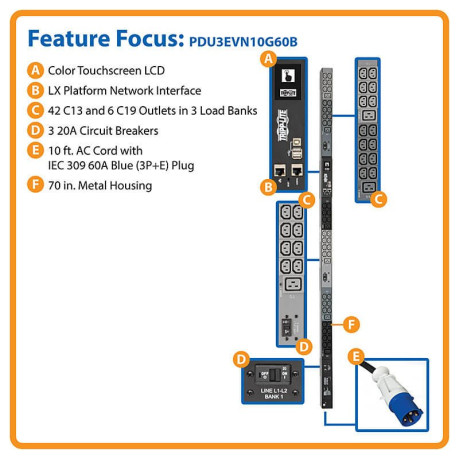

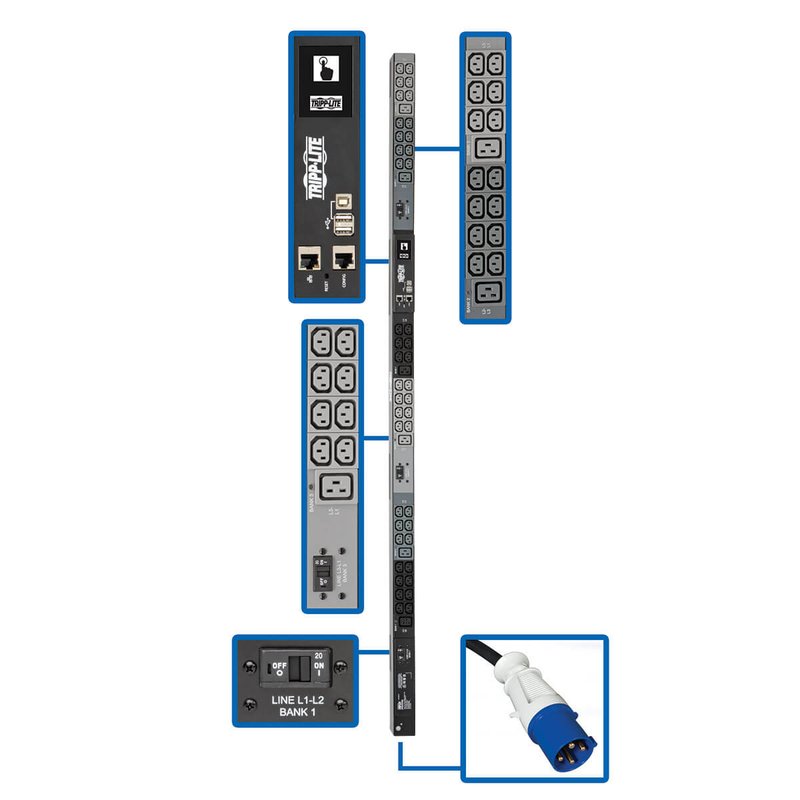

The Tripp Lite PDU3EVN10G60B 3-phase monitored PDU distributes 200/208/240V power to 42 C13 and 6 C19 outlets. Supports 60A and 14.5kW total load capacity.
Datasheet

The Tripp Lite PDU3EVN10G60B 3-Phase Monitored PDU provides reliable power distribution in high-density data center environments. With 42 C13 and 6 C19 outlets this unit supports a total load capacity of 60A and 14.5kW across 200V 208V or 240V circuits.

Its monitored capabilities allow for efficient power management and enhanced control over connected equipment. This makes the PDU3EVN10G60B ideal for critical applications requiring dependable and controlled power distribution.

COMMUNICATIONS
Communications Cable USB B-to-USB A Configuration/Console Access cable
Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet); 1 Gbps (Gigabit)
Network Monitoring Port RJ45 Network port RJ45 Config/Console Access port; 2x USB A ports supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules. USB B port (Configuration & Console Access)
PowerAlert Software LX Platform Interface: PowerAlert Device Manager
SNMP Compatibility Pre-installed LX platform network interface
DETAIILS
Manufacturer Tripp Lite
Manufacturer Part Number PDU3EVN10G60B
FEATURES & SPECIFICATIONS
High Availability PDU Features Remote Network Notifications
OVERVIEW
PDU Type Monitored
UPC Code 037332209351
STANDARDS & COMPLIANCE
Product Certifications CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1
Product Compliance RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
SURGE / NOISE SUPPRESSION
Automatic Shut-Off No
USER INTERFACE ALERTS & CONTROLS
Current Measurement Accuracy (Amps) +/-1%
Front Panel LCD Display Touchscreen LCD reports NETWORK DATA (IP address Subnet Mask Gateway MAC Address Device Name Model Serial Number) INPUT PHASE DATA (Amperage Wattage Voltage per phase plus Unbalance percentage) LOAD BANK DATA (Amperage Wattage Voltage per load bank plus total PDU output in watts) CONFIGURATION DATA (Listing of current configuration settings) ENVIRONMENTAL DATA (Reports data and status of E2 sensor modules; Sensor options are available for temperature and humidity plus input and output dry contacts) MOBILE ACCESS (Generates a unique QR code to view reported PDU details on a mobile device)
Power Measurement Accuracy (Watts) +/-1%
Reported Load Segments Reports input current per phase (L1 L2 L3) and output current for each breakered load bank (20A balanced max per banks B1-B3); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3)
Voltage Measurement Accuracy (Volts) +/-1%
Details
Category Power Distribution Units (PDUs)
Environmental
Operating Temperature Range 32 to 122F (0 to 50C)
Relative Humidity 5% to 95% non-condensing
Storage Temperature Range -22 to 140F (-30 to 60C)
Operating Elevation 0-10000 ft. (0-3000 m)
Input
Input Cord Length (ft.) 10
Input Cord Length (m) 3.05
Input Phase 3-Phase
Maximum Input Amps 35
Maximum Input Amps Details Agency de-rated to 35A continuous
PDU Input Voltage 200; 208; 220; 230; 240
PDU Plug Type IEC-60309 60A BLUE (3P+E)
Recommended Electrical Service Three-phase 60A 200-240V service
Output
Frequency Compatibility 50 / 60 Hz
Output Capacity Details 14.5kW (240V) 13.9kW (230V) 13.3kW (220V) 12.6kW (208V) 12.1kW (200V) total capacity; 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Output Nominal Voltage 200-240V
Output Receptacles (42) C13; (6) C19
Overload Protection Three 20A circuit breakers 1 per outlet bank
Physical
PDU Form Factor Vertical (0U)
Shipping Dimensions (hwd / cm) 16.00 x 24.64 x 191.52
Shipping Dimensions (hwd / in.) 6.30 x 9.70 x 75.40
Unit Dimensions (hwd / cm) 177.8 x 5.5 x 6.3
Unit Dimensions (hwd / in.) 70.000 x 2.170 x 2.520
Unit Weight (kg) 8.46
Unit Weight (lbs.) 18.66
Form Factors Supported Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
Material Of Construction Metal
Rack Height 0U
Shipping Weight (kg) 12.84
Shipping Weight (lbs.) 28.30
Warranty
Warranty/Returns 30 Days
