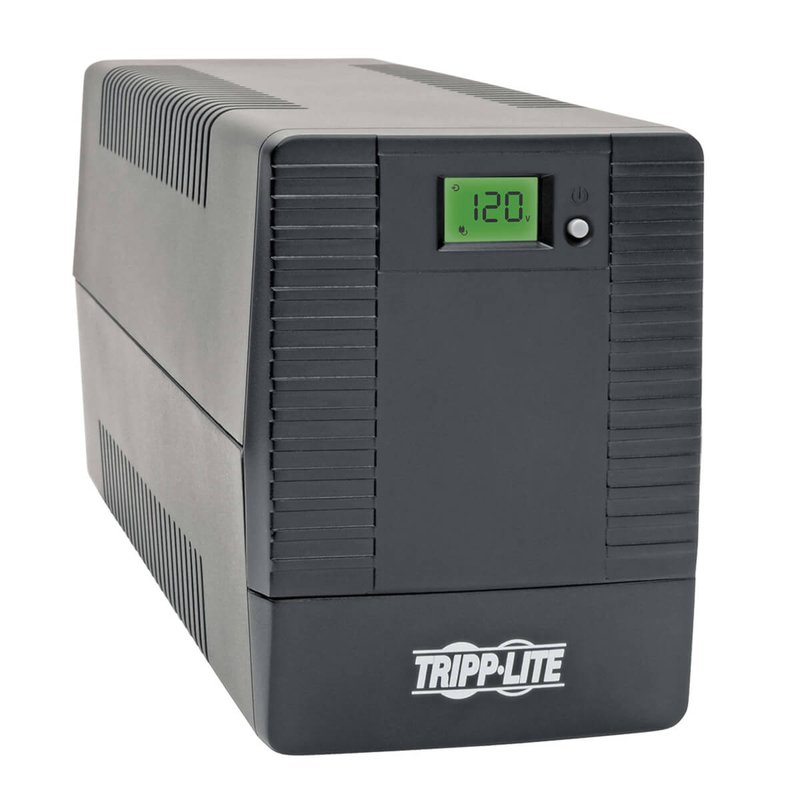

Tripp Lite OMNISMART500TU 500VA 360W Line-Interactive UPS with 6 Outlets - AVR 120V 50/60 Hz LCD USB Tower OmniSmart Series

Tripp Lite OMNISMART500TU 500VA 360W Line-Interactive UPS with 6 Outlets - AVR 120V 50/60 Hz LCD USB Tower

$212.57
Manufacturer:Eaton / Tripp Lite
Model:OMNISMART500TU
Condition:New
Availability:In Stock
The Tripp Lite OMNISMART500TU 500VA/360W UPS safeguards desktops and AV equipment with battery backup AVR and surge protection. Features an LCD status display and USB connectivity.
Datasheet

The Tripp Lite OMNISMART500TU 500VA/360W UPS system is a dependable power protection solution for your computer home theater system or other sensitive electronics. It provides battery backup during power outages automatic voltage regulation (AVR) to correct brownouts and overvoltages and surge suppression to safeguard against power spikes.

Featuring a user-friendly LCD interface to monitor power conditions and UPS status the OMNISMART500TU offers convenient USB connectivity for data saving and auto-shutdown functionality. Its compact tower design makes it ideal for desktop use.

APPLICATIONS
UPS Applications Home/Office Desktop; Retail/Point of Sale; Hospitality
COMMUNICATIONS
Communications Cable USB cable included
Communications Interface USB (HID enabled)
Network Management Card Description Network management not supported
PowerAlert Software For local monitoring via the UPSs built-in USB communications port download PowerAlert software at https://tripplite.eaton.com/products/power-alert
WatchDog Compatibility Supports Watchdog application OS and hard-reboot restart options for remote applications
DETAIILS
Manufacturer Tripp Lite
Manufacturer Part Number OMNISMART500TU
FEATURES & SPECIFICATIONS
Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS
High Availability UPS Features Automatic Voltage Regulation (AVR); Surge/noise protection
LINE / BATTERY TRANSFER
High Voltage Transfer to Battery Power (Setpoint) 145
Low Voltage Transfer to Battery Power (Setpoint) 89
Transfer Time 6 milliseconds
OVERVIEW
UPC Code 037332221544
UPS Type Line-Interactive
STANDARDS & COMPLIANCE
Product Certifications CSA (Canada); NOM (Mexico); UL 1778
Product Compliance RoHS; FCC Part 15 Class A (USA)
SURGE / NOISE SUPPRESSION
AC Suppression Joule Rating 316
AC Suppression Response Time Instantaneous
EMI / RFI AC Noise Suppression Yes
UPS Dataline Suppression 1 line TEL/DSL or Ethernet
USER INTERFACE ALERTS & CONTROLS
Audible Alarm Alarm reports low-battery fault overload and replace battery conditions; Alarm remains silent during battery mode operation until low-battery status occurs

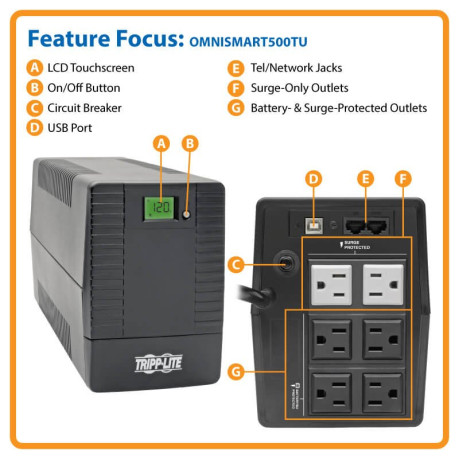

Front Panel LCD Display LCD touchscreen reports input and output voltage load percentage and battery charge level; Also reports overload and critical fault code screens (see manual)
Switches Power switch enables UPS on / off control
VOLTAGE REGULATION
Overvoltage Correction Input voltages between 129 and 145 are reduced by 15%
Undervoltage Correction Input voltages between 89 and 108 are boosted by 14%
Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145
Battery
Battery Access Includes bottom panel battery access door
Battery Recharge Rate (Included Batteries) 8 hours from 10% to 90%
Battery Replacement Description Replaceable internal battery (see manual)
DC System Voltage (VDC) 12
Expandable Runtime No
Lithium Batteries No
Runtime Full Load (min.) 3 min. (360W)
Runtime Half Load (min.) 10 min. (180W)
Battery Type Valve Regulated Lead Acid (VRLA)
Details
Category UPS System
Environmental
AC Mode BTU / Hr. (Full Load) 43
AC Mode Efficiency Rating (100% Load) >95%
Operating Temperature Range 32 to 104F (0 to 40C)
Relative Humidity Up to 90% non-condensing
Storage Temperature Range 5 to 113F (-15 to 45C )
Operating Elevation 0-6562 ft. (0-2000 m)
Input
Input Circuit Breakers 7A
Input Phase Single-Phase
Maximum Input Amps 6
Nominal Input Voltage(s) Supported 120V AC
Rated input current (Maximum Load) 6A
Recommended Electrical Service 15A 120V
UPS Input Connection Type 5-15P
UPS Input Cord Length (ft.) 5
UPS Input Cord Length (m) 1.5
Output
Frequency Compatibility 50 / 60 Hz
Frequency Compatibility Details Automatic frequency selection. Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal.
Hot-Swap PDU options PDUB15 (2U / 8 5-15R outlets)
Individually Controllable Load Banks No
Nominal Output Voltage(s) Supported 110V; 115V; 120V
Nominal Voltage Details 120V sinusoidal in line mode and 120V PWM in battery mode
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery Mode) PWM sine wave
Output Capacity (kVA) 0.5
Output Capacity (kW) 0.36
Output Capacity (VA) 500
Output Capacity (Watts) 360
Output Capacity Details 4.2A @ 120V. (LINE MODE) 110%+/- 10% @ 5 minutes; (BATTERY MODE) 110% +/- 10% @ 5 seconds
Output Circuit Breakers 6A
Output Receptacles (6) 5-15R
Output Voltage Regulation (Battery Mode) 5%
Output Voltage Regulation (Line Mode) -12% +9%
Power Factor 0.72

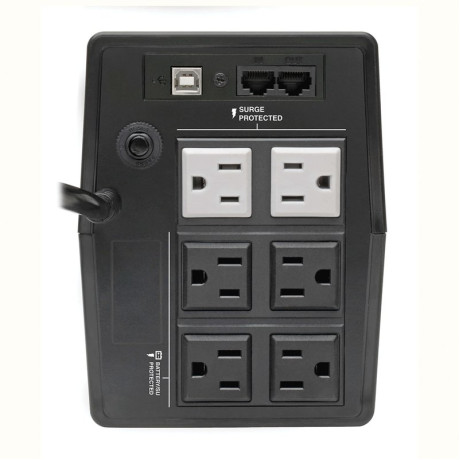

UPS Output Receptacles (Surge Suppression Only) 4 UPS outlets 2 surge-only outlets
Physical
Installation Form Factors Supported with Included Accessories Tower
Primary Form Factor Tower
Primary UPS Depth (mm) 345
Primary UPS Height (mm) 160
Primary UPS Width (mm) 122
Shipping Dimensions (hwd / in.) 9.80 x 7.20 x 16.30
Unit Weight (kg) 6.49
Unit Weight (lbs.) 14.300
UPS Housing Material ABS
UPS Power Module Dimensions (hwd in.) 6.3 x 4.8 x 13.6
UPS Power Module Weight (kg) 6.49
UPS Power Module Weight (lbs.) 14.3
Shipping Weight (kg) 6.99
Warranty
Warranty/Returns 30 Days
