Datasheet

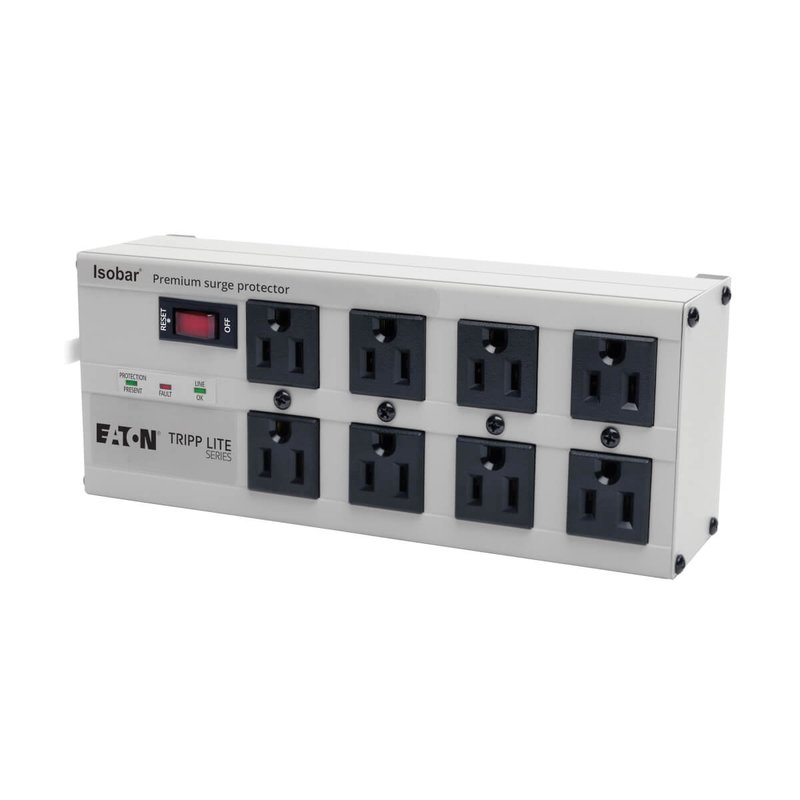

The Tripp Lite ISOBAR8ULTRA is a premium surge protector offering superior protection for your valuable electronics. With 8 outlets and a robust 3840 joules surge suppression rating it defends against power surges and spikes keeping your equipment safe. The extra-long 12ft cord provides ample reach for convenient placement.
Its metal housing ensures durability and the Isobar design guarantees balanced power distribution to all connected devices. This surge protector is perfect for home offices entertainment systems and other applications where reliable power protection is essential.
| DATALINE SURGE SUPPRESSION |
| Cable (Coax) Protection |
No |
| Network (Ethernet) Protection |
No |
| Telephone/DSL Protection |
No |
| DETAIILS |
| Manufacturer |
Tripp Lite |
| Manufacturer Part Number |
ISOBAR8ULTRA |
| FEATURES & SPECIFICATIONS |
| Antimicrobial |
No |
| Rotatable Outlets |
No |
| OVERVIEW |
| UPC Code |
037332010551 |
| STANDARDS & COMPLIANCE |
| Product Certifications |
CAN/CSA-C22.2 No. 369.3:2017 (2nd Ed.); UL 1449 5th Ed. Rev: 2021 |
| Product Compliance |
RoHS |
| SURGE / NOISE SUPPRESSION |
| AC Suppression Components Used |
Metal oxide varistors toroidal balanced chokes ferrite rod-core inductors and VHF capacitors. |
| AC Suppression Joule Rating |
3840 |
| AC Suppression Response Time |
NM = 0 ns. CM = <1 ns |
| AC Suppression Surge Current Rating |
97000 amps (36000 NM / 61000 CM) |
| Automatic Shut-Off |
Yes |
| EMI / RFI Filtering |
40-80 dB |
| IEEE587 Cat. A Ringwave Let-Through |
Less than 35 volts |
| Immunity |
Conforms to IEE 587 / ANSI C62.41 |
| Isolated Filter Banks |
Yes |
| Protection Modes |
Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression |
| Safe Thermal Fusing |
Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences |
| UL1449 Let Through Rating |
330V |
| USER INTERFACE ALERTS & CONTROLS |
| Diagnostic LED Details |
PROTECTION PRESENT (green) LINE FAULT (red) and LINE OK (green) |
| Diagnostic LED(s) |
Yes |
| Switches |
Combination AC circuit breaker and two position red illuminated on/off power switch |
| Details |
| Category |
Surge Protection |
| Input |
| Input Cord Details |
SJT |
| Input Cord Gauge (AWG) |
14 |
| Input Cord Length (ft.) |
12 |
| Input Cord Length (m) |
3.66 |
| Input Plug Type |
NEMA 5-15P |
| Integrated Cord Clip |
No |
| Maximum Surge Amps |
150000 |
| Nominal Input Voltage(s) Supported |
120V AC |
| Recommended Electrical Service |
120V (110-125V) |
| Right-Angle Plug |
Yes |
| Voltage Compatibility (VAC) |
120 |
| Output |
| Circuit Breaker (amps) |
12 |
| Frequency Compatibility |
50 / 60 Hz |
| Output (Watts) |
1440 |
| Output Receptacles |
(8) 5-15R |
| Right-Angle Outlets |
No |
| Transformer Accommodation |
(4) Yes |
| Physical |
| Housing Color |
Light Gray |
| Mounting Holes or Slots |
Yes |
| Outlets Measurement (Center to Center) |
Distance between horizontal outlets = 39.45mm; Distance between vertical outlets = 39.30mm |
| Power Cord Color |
Light Gray |
| Receptacle Color |
Black |
| Shipping Dimensions (hwd / cm) |
7.62 x 17.53 x 29.72 |
| Shipping Dimensions (hwd / in.) |
3.00 x 6.90 x 11.70 |
| Slot or Hole Mount Measurement (Center to Center) |
Distance between horizontal tabs = 210.79 mm; Distance between vertical tabs = 58.17 mm |
| Unit Dimensions (hwd / cm) |
5.56 x 8.89 x 22.23 |
| Unit Dimensions (hwd / in.) |
2.570 x 9.280 x 3.560 |
| Unit Weight (kg) |
1.50 |
| Unit Weight (lbs.) |
3.3 |
| Material Of Construction |
Metal |
| Shipping Weight (kg) |
1.68 |
| Shipping Weight (lbs.) |
3.70 |
| Warranty |
| Warranty/Returns |
30 Days |
