Tripp Lite IS500 Isolator Series 120V 500W Isolation Transformer-Based Power Conditioner 4 Outlets TAA IS Series

Tripp Lite IS500 Isolator Series 120V 500W Isolation Transformer-Based Power Conditioner 4 Outlets TAA

$271.40
Manufacturer:Eaton / Tripp Lite
Model:IS500
Condition:New
Availability:In Stock

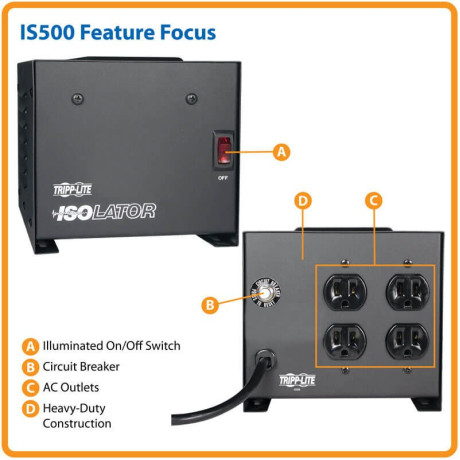

The Tripp Lite Isolator 500 provides 4 receptacles with isolated 120V power at 500W reducing electrical noise and protecting sensitive equipment.
Datasheet

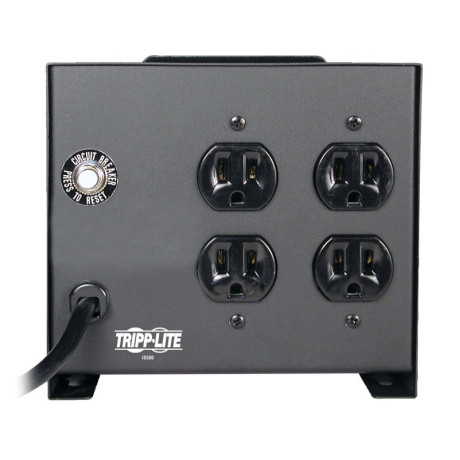

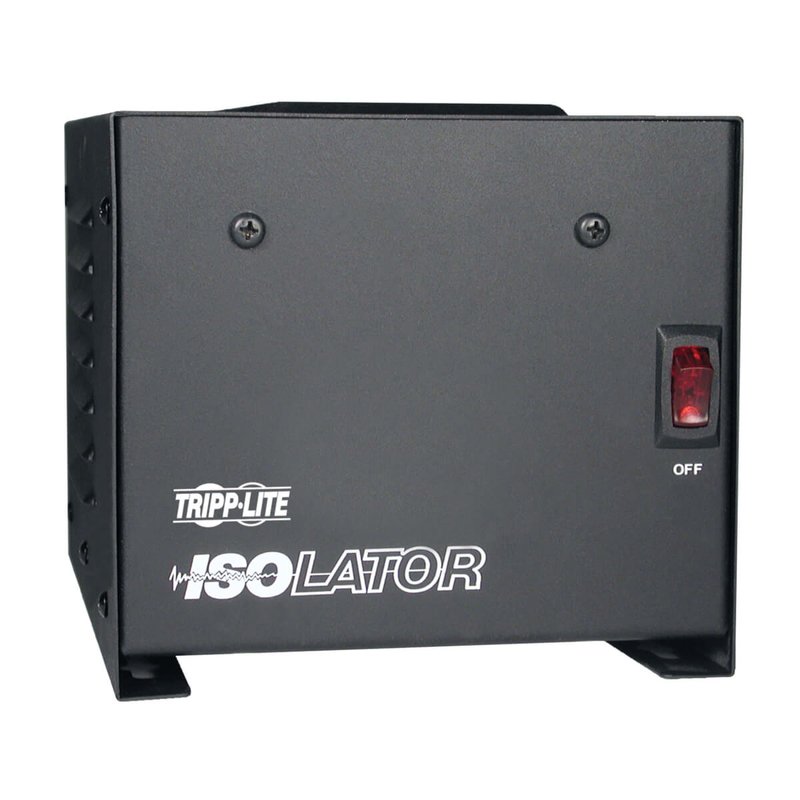

The Tripp Lite Isolator 500 is designed to isolate sensitive electronic equipment from the main power supply. Providing four 120V receptacles with a total capacity of 500W it helps eliminate electrical noise and ground loops that can interfere with performance.

This isolation transformer enhances the safety and reliability of connected devices by creating a separation between the power source and the equipment guarding against surges and other electrical disturbances. This makes it ideal for audio/video studios medical facilities and other applications requiring clean stable power.

DETAIILS
Manufacturer Tripp Lite
Manufacturer Part Number IS500
FEATURES & SPECIFICATIONS
Over Current Protection Yes 4.5A circuit breaker
OVERVIEW
Efficiency 96%
Let-through Voltage (Combination Wave) L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. B
Let-through Voltage (Ring Wave) L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. A
Nominal Voltage / Frequency 120V / 60Hz
Suppression Joule Rating 680
Surge Test Conditions Per ANSI/IEEE C62.41 - (IEEE587) Cat. A & B test waveforms
Transformer Type Low Impedence Isolation Transformer
UPC Code 037332070050
VA / Watt Capacity 500
STANDARDS & COMPLIANCE
Product Compliance Trade Agreements Act (TAA)
SURGE / NOISE SUPPRESSION
Noise Suppression Rating 33-65 dB normal mode; > 80 dB common mode
Details
Category Isolation Transformers
Input
Input Cord Length (ft.) 6
Input Cord Length (m) 1.83
Input Plug Type NEMA 5-15P
Total Harmonic Distortion less than 1%
Output
Output Amp Capacity 4.2
Output Receptacles (4) 5-15R
Physical
Cooling Method Convection
Shipping Dimensions (hwd / cm) 18.42 x 33.66 x 15.24
Shipping Dimensions (hwd / in.) 7.25 x 13.25 x 6.00
Unit Dimensions (hwd / cm) 13.97 x 15.88 x 21.59
Unit Dimensions (hwd / in.) 5.500 x 6.250 x 8.500
Unit Weight (kg) 10.25
Unit Weight (lbs.) 22.6
Form Factors Supported Tower
Shipping Weight (kg) 10.70
Shipping Weight (lbs.) 23.60
Warranty
Warranty/Returns 30 Days
