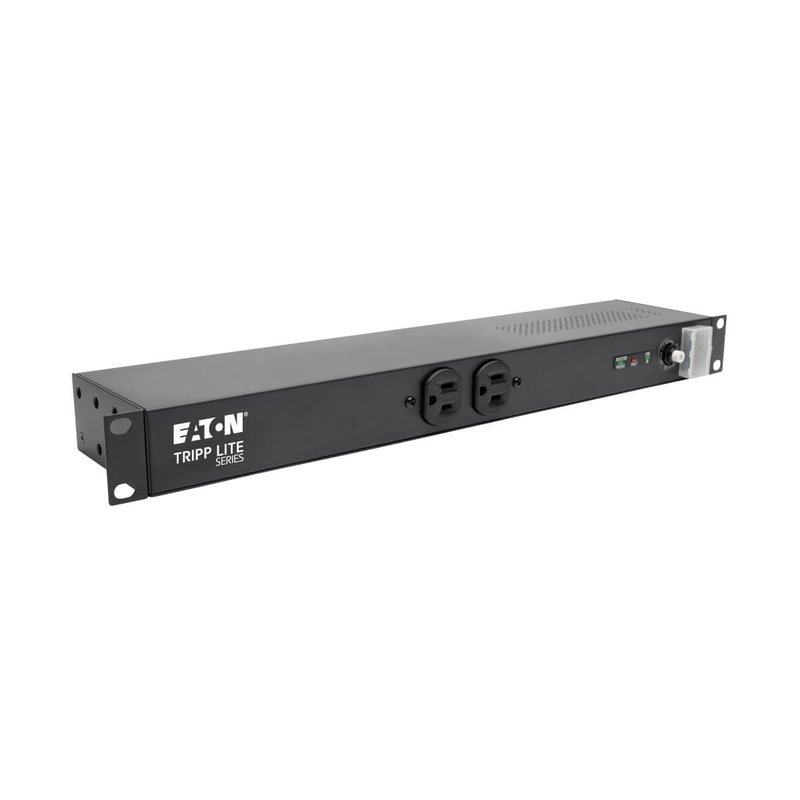

Tripp Lite IBAR12-20T Isobar 12-Outlet Network Server Surge Protector 15 ft. (4.57 m) Cord with L5-20P Plug 3840 Joules Diagnostic LEDs 1U Rackmount Isobar Series

Tripp Lite IBAR12-20T Isobar 12-Outlet Network Server Surge Protector 15 ft. (4.57 m) Cord with L5-20P Plug 3840 Joules Diagnostic LEDs 1U Rackmount

$201.89
Manufacturer:Eaton / Tripp Lite
Model:IBAR12-20T
Condition:New
Availability:In Stock
The Tripp Lite Isobar IBAR12-20T safeguards your valuable electronics with 12 outlets 3840 joules of surge protection and a 15ft cord. Ideal for rackmount applications (1U).
Datasheet

The Tripp Lite Isobar IBAR12-20T Network Surge Protector offers premium protection for your sensitive equipment. Featuring 12 outlets and a robust 3840-joule surge suppression rating it shields connected devices from damaging voltage spikes and surges. The convenient 15-foot cord allows for flexible placement within your rack or network setup.

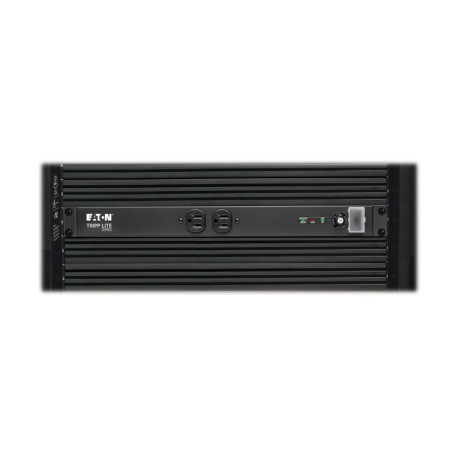

Designed for 1U rackmount installation the IBAR12-20T provides reliable power distribution in a space-saving form factor. Its 20A capacity ensures sufficient power for multiple devices while the Isobar technology guarantees superior performance and protection. This surge protector is ideal for network closets server rooms and other mission-critical applications.

DATALINE SURGE SUPPRESSION
Cable (Coax) Protection No
Network (Ethernet) Protection No
Telephone/DSL Protection No
DETAIILS
Manufacturer Tripp Lite
Manufacturer Part Number IBAR12-20T
FEATURES & SPECIFICATIONS
Antimicrobial No
Mounting Accessory Included Yes
Rotatable Outlets No
OVERVIEW
UPC Code 037332100184
STANDARDS & COMPLIANCE
Product Certifications CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 369.3:2017 (2nd Ed.); UL 1449 5th Ed. Rev: 2021
Product Compliance RoHS
SURGE / NOISE SUPPRESSION
AC Suppression Components Used Metal oxide varistors toroidal balanced chokes and VHF capacitors
AC Suppression Joule Rating 3840
AC Suppression Response Time NM = 0 ns. CM = <1 ns
AC Suppression Surge Current Rating 96000 amps
Automatic Shut-Off No
EMI / RFI Filtering 40-80 dB
Immunity Conforms to IEE 587 / ANSI C62.41
Isolated Filter Banks Yes
Protection Modes Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
Safe Thermal Fusing Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
UL1449 Let Through Rating 330V
USER INTERFACE ALERTS & CONTROLS
Diagnostic LED Details PROTECTION PRESENT (green) LINE FAULT (red) and LINE OK (green)
Diagnostic LED(s) Yes
Locking Switch Cover Transparent locking switch cover prevents accidental shutoff
Switches Red illuminated power switch controls power to all outlets
Details
Category Surge Protection
Input
Input Cord Details SJT
Input Cord Gauge (AWG) 14
Input Cord Length (ft.) 15
Input Cord Length (m) 4.57
Input Plug Type NEMA L5-20P
Integrated Cord Clip No
Maximum Surge Amps 150000
Nominal Input Voltage(s) Supported 120V AC
Recommended Electrical Service 120V (110-125V)
Right-Angle Plug No
Voltage Compatibility (VAC) 120
Output
Circuit Breaker (amps) 20
Frequency Compatibility 50 / 60 Hz
Output (Watts) 2400
Output Receptacles (12) 5-15R
Right-Angle Outlets No
Transformer Accommodation (4) Yes
Physical
Housing Color Black
Mounting Details Includes flanges
Mounting Holes or Slots No
Outlets Measurement (Center to Center) Distance between front outlets = 38.9mm; Distance between rear outlets = 60.45mm
Power Cord Color Black
Receptacle Color Black
Shipping Dimensions (hwd / cm) 5.59 x 51.31 x 23.88
Shipping Dimensions (hwd / in.) 2.20 x 20.20 x 9.40
Unit Dimensions (hwd / cm) 4.45 x 44.45 x 10.16
Unit Dimensions (hwd / in.) 1.750 x 17.500 x 4.000
Unit Weight (kg) 2.45
Unit Weight (lbs.) 5.4
Form Factors Supported 1U rackmount 0U vertical rackmount wallmount and under-counter mounting supported - detachable flanges can be re-configured to support a variety of additional mounting options
Material Of Construction Metal
Shipping Weight (kg) 2.99
Shipping Weight (lbs.) 6.60
Warranty
Warranty/Returns 30 Days
