SonicWave 200 400 Series DataSheet

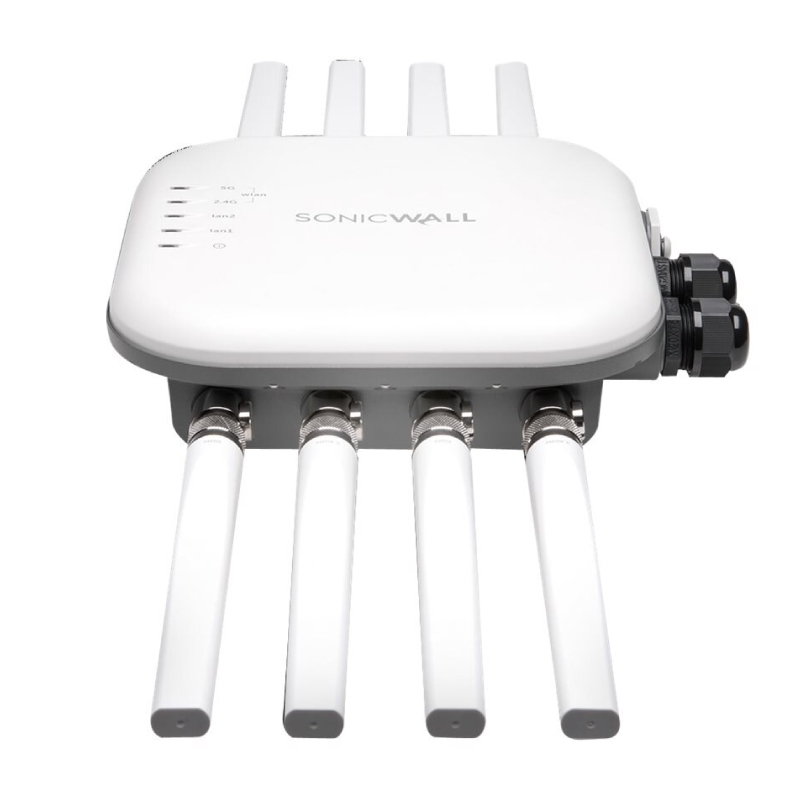

The SonicWall SonicWave 432o is a robust outdoor wireless access point designed to deliver high-performance Wi-Fi connectivity in challenging environments. Supporting the 802.11ac Wave 2 standard, this device operates on dual bands and utilizes 4x4 MU-MIMO technology along with beamforming to achieve impressive speeds up to 1.733 Gbps. Its rugged IP67-rated enclosure ensures reliable performance in adverse weather conditions, making it an excellent choice for deployment in campuses, stadiums, and other outdoor venues. The SonicWave 432o's advanced security features, including WPA3, provide enhanced protection for your wireless network.
While the SonicWave 432o does not include PoE support, it features a Multi-Gigabit 2.5G Ethernet port for streamlined connectivity. The access point is managed through SonicWall's advanced network management platforms, offering comprehensive control and monitoring capabilities. Backed by a 5-year limited warranty, the SonicWave 432o ensures long-term reliability and peace of mind. Installation is made flexible with the included wall/ceiling mounting kit, allowing for versatile positioning to optimize coverage and performance in any outdoor setting.
| Details |
| Series |
SonicWave Series |
| Warranty/Returns |
30 Days |
| Manufacturer |
SonicWall |
| Wireless |
Yes |
| Environmental |
| Temp. |
32 to 104 ??F, 0 to 40 ??C / -40 to 140 ??F, -40 to 60 ??C |
| Humidity |
10 - 95%, non-condensing |
| Hardware Specifications |
| Accessories Included |
Wall/ceiling mount kit |
| Antennas |
8 N-type dipole |
| Chassis |
UL 1024 plenum rated |
| Dimensions |
9.5 (W) x 9.3 (D) x 2.4 (H) in / 24.1 (W) x 23.6 (D) x 6.1 (H) cm |
| Location |
Outdoor |
| Maximum Power Consumption (W) |
21.2 W |
| PoE Injector |
802.3at |
| Shipping Weight |
4.7 kg / 10.4 lbs |
| Status Indicators |
Six (6) LED (WLAN/Link) (LAN/Link) Power, Test |
| Virtual Access Points/SSID Group |
Up to 8 per access point |
| WEEE Weight |
4.1 kg / 9.1 lbs |
| Weight |
2.2 kg / 4.9 lbs |
| Wired Network Ports |
(1) 10/100/1,000 auto-sensing RJ-45 for Ethernet and Power over Ethernet (PoE); (1) 100/1,000/2.5 GbE auto-sensing RJ-45 for Ethernet; (1) RJ-45 console; (1) USB 2.0 (except 432o) |
| Radio Specifications |
| Frequency Bands/Operating Channels |
802.11n-2.412?2.472 GHz, 5.180?5.825 GHz; 802.11ac-2.412?2.472 GHz, 5.180?5.825 GHz; 802.11a ? US and Canada: 12, Europe: 11, Japan: 4, Singapore: 4, Taiwan: 4; 802.11b/g |
| Radios |
Dual- 4x4 11n + 4x4 11ac MU-MIMO; Dedicated third scanning radio; Bluetooth Low Energy radio; 802.11a |
| Security |
| Data Encryption |
WPA2, IPSec, 802.11i, WPA, 64/128/152-bit WEP, TKIP, AES, SSL VPN |
| Standards and compliance |
| IEEE Standard |
802.11a/b/g/n/ac Wave 13 |
