SonicWave 200 400 Series DataSheet

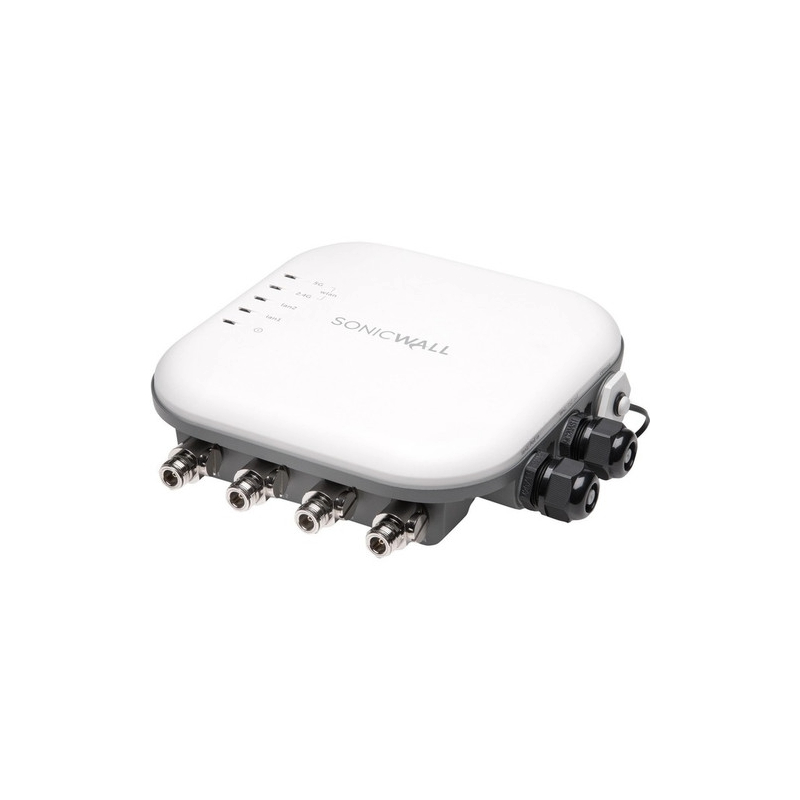

The SonicWall SonicWave 432o Wireless Access Point, included in the Secure Upgrade Plus package (SKU: 01-SSC-2607), offers a robust solution for high-performance outdoor wireless networking. This package provides five years of Secure Cloud WiFi Management and 24/7 support, ensuring that your network remains both efficient and secure. The SonicWave 432o leverages advanced 802.11ac Wave 2 technology with 4x4 MU-MIMO to deliver exceptional wireless performance, supporting high throughput and capacity in demanding environments. With a 2.5 GbE port and a 1 GbE port, it offers flexible multi-gigabit connectivity options, making it adaptable to various deployment scenarios. Although this package does not include Power over Ethernet (PoE) injectors, it is ideal for settings where PoE is provided separately, ensuring seamless integration into existing infrastructures.
Designed for resilience and security, the SonicWave 432o features an IP67-rated enclosure, offering rugged protection against dust and water, making it perfect for outdoor and harsh environments. It includes comprehensive threat prevention capabilities such as Deep Packet Inspection, wireless intrusion detection, and SSL/TLS decryption, safeguarding your network from both known and emerging threats. Managed through SonicWall?s Wireless Network Manager (WNM), it provides centralized control, real-time analytics, and Zero-Touch Deployment for simplified setup and management. This package is ideal for outdoor deployments, high-density areas, and securing wireless networks, ensuring that your connectivity is both reliable and secure for years to come.
| Details |
| Series |
SonicWave Series |
| Warranty/Returns |
30 Days |
| Manufacturer |
SonicWall |
| Wireless |
Yes |
| Environmental |
| Temp. |
32 to 104 ??F, 0 to 40 ??C / -40 to 140 ??F, -40 to 60 ??C |
| Humidity |
10 - 95%, non-condensing |
| Hardware Specifications |
| Accessories Included |
Wall/ceiling mount kit |
| Antennas |
8 N-type dipole |
| Chassis |
UL 1024 plenum rated |
| Dimensions |
9.5 (W) x 9.3 (D) x 2.4 (H) in / 24.1 (W) x 23.6 (D) x 6.1 (H) cm |
| Location |
Outdoor |
| Maximum Power Consumption (W) |
21.2 W |
| PoE Injector |
802.3at |
| Shipping Weight |
4.7 kg / 10.4 lbs |
| Status Indicators |
Six (6) LED (WLAN/Link) (LAN/Link) Power, Test |
| Virtual Access Points/SSID Group |
Up to 8 per access point |
| WEEE Weight |
4.1 kg / 9.1 lbs |
| Weight |
2.2 kg / 4.9 lbs |
| Wired Network Ports |
(1) 10/100/1,000 auto-sensing RJ-45 for Ethernet and Power over Ethernet (PoE); (1) 100/1,000/2.5 GbE auto-sensing RJ-45 for Ethernet; (1) RJ-45 console; (1) USB 2.0 (except 432o) |
| Radio Specifications |
| Frequency Bands/Operating Channels |
802.11n-2.412?2.472 GHz, 5.180?5.825 GHz; 802.11ac-2.412?2.472 GHz, 5.180?5.825 GHz; 802.11a ? US and Canada: 12, Europe: 11, Japan: 4, Singapore: 4, Taiwan: 4; 802.11b/g |
| Radios |
Dual- 4x4 11n + 4x4 11ac MU-MIMO; Dedicated third scanning radio; Bluetooth Low Energy radio; 802.11a |
| Security |
| Data Encryption |
WPA2, IPSec, 802.11i, WPA, 64/128/152-bit WEP, TKIP, AES, SSL VPN |
| Standards and compliance |
| IEEE Standard |
802.11a/b/g/n/ac Wave 13 |
