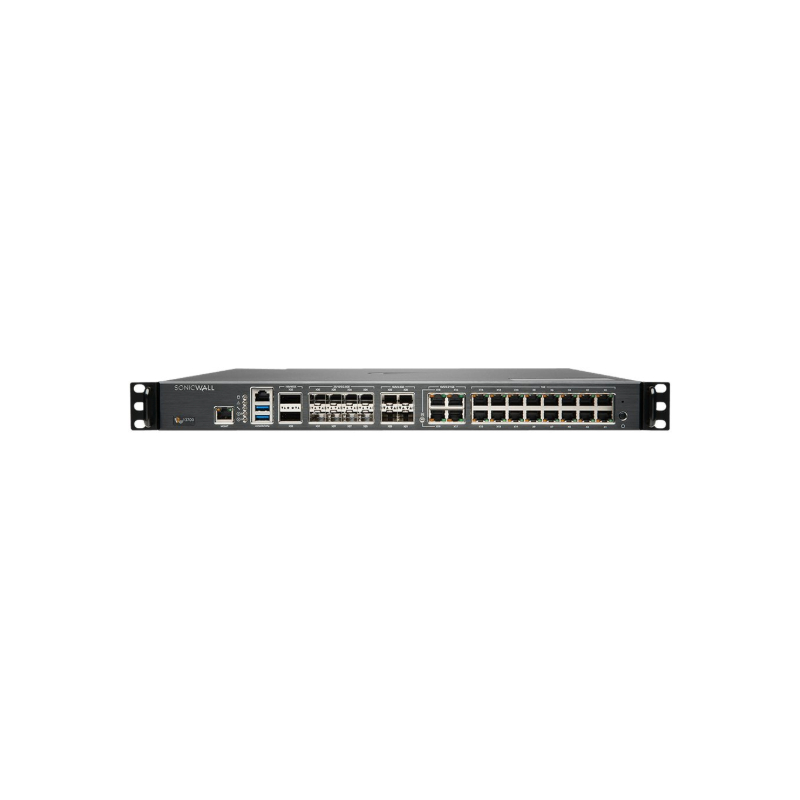

SonicWall NSa 6700 Secure Upgrade Advanced Edition (3 Years) (Includes 1 Year CSE) Appliances

SonicWall NSa 6700 Secure Upgrade Advanced Edition (3 Years) (Includes 1 Year CSE)

$44,778.20
Add to Cart for Price
Manufacturer:SonicWall
Model:03-SSC-2987
Condition:New
Availability:In Stock
High-performance firewall for large enterprises. Boasting 36 Gbps firewall throughput, 15 Gbps threat prevention, and 17 Gbps VPN. Includes 3-year Advanced Protection & 1-year Capture Security Center. Top-tier security and scalability.
NSA Gen 7 Datasheet

The SonicWall NSa 6700 Secure Upgrade Advanced Edition (3-Year) is a formidable next-generation firewall designed to meet the rigorous demands of large enterprises and data centers. This powerhouse unit boasts ultra-high throughput and deep security capabilities, providing a comprehensive solution for environments that demand exceptional performance, scalability, and robust protection. The package includes a 3-year subscription to the Advanced Protection Service Suite (APSS) and 1 year of Capture Security Center Essentials (CSE), offering a full suite for threat detection, management, and compliance needs. With firewall throughput reaching up to 36 Gbps, threat prevention capabilities of up to 15 Gbps, and VPN throughput of 17 Gbps, the NSa 6700 can handle up to 10 million simultaneous connections and 200,000 new connections per second.

Equipped with multiple high-speed interfaces including 10GbE and 25GbE, the NSa 6700 ensures flexible, high-bandwidth connectivity suited for complex network infrastructures. The APSS suite enhances security with services such as Capture ATP, gateway anti-virus and anti-spyware, intrusion prevention, application control, content filtering, anti-spam, DNS filtering, and 24x7 support with continuous firmware updates. Moreover, the inclusion of SaaS/NSM On-Prem management allows for 7-day alerting, advanced reporting, and analytics, making the NSa 6700 an ideal choice for enterprises seeking top-tier performance and layered security across their networks.

Additional Features
Features SD-WAN support, URL filtering, VPN support, Intrusion Prevention System (IPS), Real-Time Deep Memory Inspection (RTDMI), Reassembly-Free Deep Packet Inspection (RFDPI), Stateful Packet Inspection (SPI), DoS attack prevention, DDos attack prevention, DNS proxy, anti-malware protection, web threat protection, bandwidth control, Jumbo Frames support, NAT support, VLAN trunking, Quality of Service (QoS), load balancing, PAT support, Dead Peer Detection (DPD), DHCP server, DHCP relay, IPv6 support, IPv4 support, Zero-touch provisioning (ZTP), NetFlow, IPFIX, port mirroring, anti-virus protection, Common Access Card (CAC) reader support, DSCP Marking, Stateful switchover (SSO), 2 fans, Deep Packet Inspection (DPI)
Capacity
Authenticated users (internal database) 3200
DPI connections 6000000
DPI SSL connections 750000
IPSec VPN clients 2000 (maximum 6000)
Maximum number of access points 512
Single Sign-On (SSO) users 70000
SPI connections 8000000
SSL VPN licenses 2 (maximum 1500)
Virtual interfaces (VLANs) 512
VPN tunnels (site-to-site) 6000
Dimensions & Weight (Shipping)
Shipping Weight 30.42 lbs
Environmental Parameters
Humidity Range Operating 0 - 90% RH (non-condensing)
Max Operating Temperature 104 ??F
Min Operating Temperature 32 ??F
Expansion / Connectivity
Expansion Slots 1 (total) / 1 (free) x expansion slot
Interfaces 16 x 1000Base-T - RJ-45, 2 x USB 3.0 - Type A, 1 x console - RJ-45, 1 x management - RJ-45, 4 x 1/2.5/5/10 Gigabit Ethernet - SFP+, 4 x 1/2.5/5/10Gbase-T - RJ-45, 8 x 25Gb Ethernet, 2 x 40Gb Ethernet
IP Telephony
IP Telephony Features VoIP gatekeeper support, VoIP outbound bandwidth management
VoIP Protocols SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Miscellaneous
Compliant Standards ICSA Firewall certified, ICSA Antivirus, Common Criteria, FCC Class A certified, EMC, LVD, RoHS, C-Tick, VCCI Class A, MSIP, KCC Class A, cUL, UL, TUV GS, CB, Mexico CoC, WEEE, REACH, ANATEL, BSMI
Networking and Systems
Authentication Method RADIUS, internal user database, LDAP, XAUTH authentication
Processor / Memory / Storage
Hard Drive SSD 256 GB x 1 - M.2
Security & Encryption
Encryption Algorithm DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, TLS 1.3
Software / System Requirements
OS Provided SonicOS 7.0
Details
Series NSA Series
Warranty/Returns 30 Days
Manufacturer SonicWall
General
Built-in Devices 3 x fans
Bundled Services 3 years Advanced Protection Service Suite and Cloud Secure Edge for 1 year SIA-Basic (50 users) and 1 year SPA-Advanced (15 users)
Depth 18.3 in
Device Type Security appliance
Height 1.8 in
Height (Rack Units) 1U
Weight 17.86 lbs
Width 16.9 in
Networking
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet
Form Factor Rack-mountable
Network / Transport Protocol TCP/IP, UDP/IP, ICMP/IP, IPSec, DHCP, PPPoE, L2TP, PPTP, HTTP, HTTPs
Remote Management Protocol SNMP 2, SNMP 3, SSH, CLI
Routing Protocol OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR)
Performance
Anti-malware throughput 18.5 Gbps
Application throughput 20 Gbps
Connection rate 228000 connections per second
Firewall throughput 36 Gbps
IPS throughput 20 Gbps
Threat prevention throughput 19 Gbps
TLS/SSL inspection and decryption throughput 9 Gbps
VPN throughput (IPSec) 19 Gbps
Power
Installed Qty 1
Max Supported Qty 2
Power Device Internal power supply
Power Provided 350 Watt
Power Redundancy Optional
Voltage Required AC 100-240 V (50/60 Hz)
