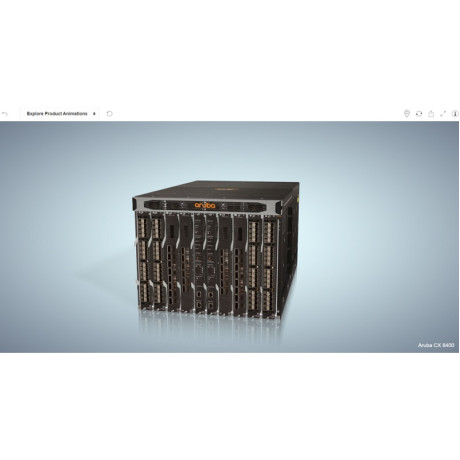

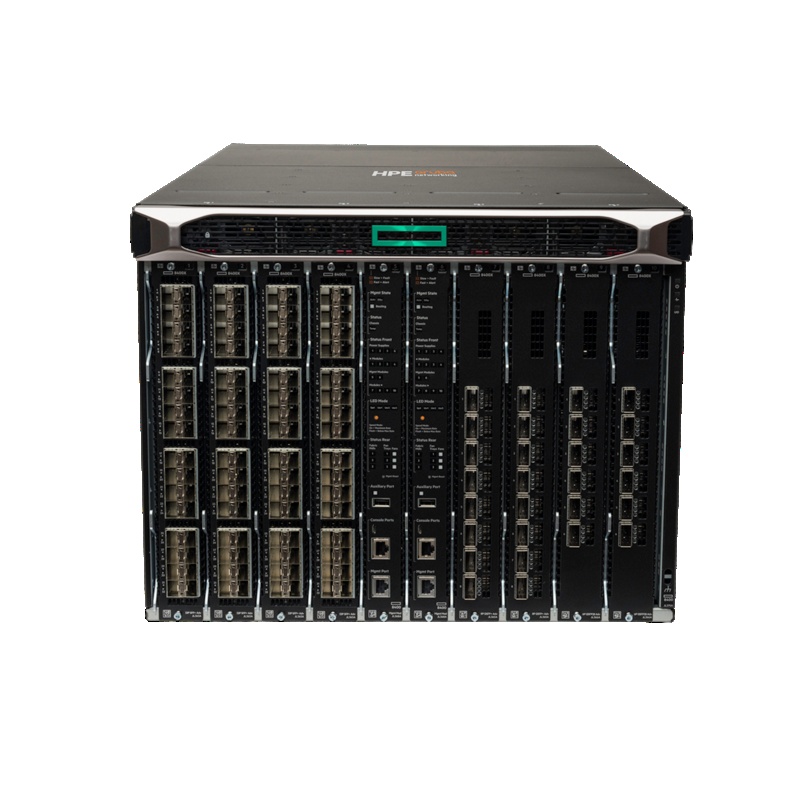

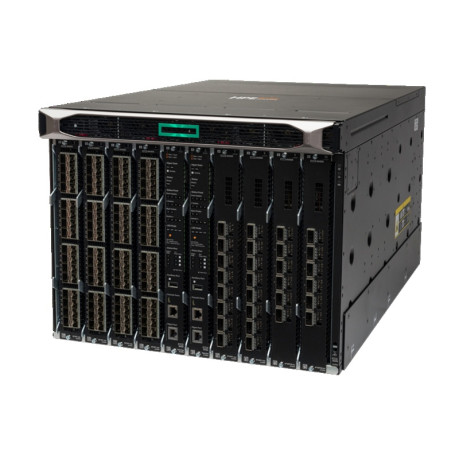

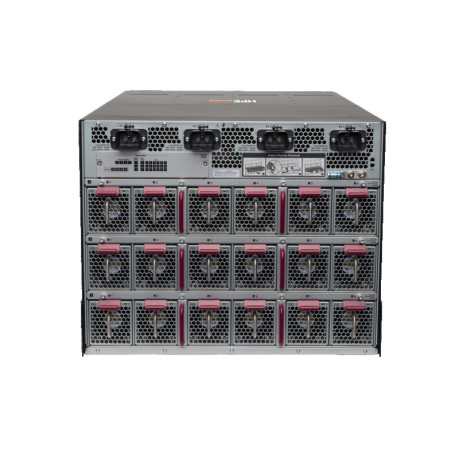

The HPE Aruba Networking 8400 8-Slot Chassis with 3 Fan Trays, 18 Fans, Cable Manager, and X462 Bundle is a high-performance core switching platform designed for demanding enterprise networks. It offers exceptional scalability and resilience, supporting a wide range of applications and services. The chassis houses up to eight Aruba 8400 Series modular line cards, allowing for flexible configurations to meet evolving network requirements. Its robust design includes three fan trays with eighteen fans for optimal cooling and reliability, even under heavy load. A built-in cable manager helps maintain organization and simplifies cabling, improving airflow and accessibility.
The included X462 bundle further enhances the system's capabilities. While the precise components of this bundle are not explicitly detailed in readily available documentation, it's likely to include essential power supplies and other crucial components necessary for the immediate operation of the chassis. This comprehensive package ensures a complete and ready-to-deploy solution, providing a foundation for a high-availability, high-performance network infrastructure. The system is designed for ease of management and integration with existing Aruba network management tools, simplifying network administration and reducing operational complexity.
| I/O Expansions |
| Number of Total Expansion Slots |
8 |
| Interfaces/Ports |
| Modular |
Yes |
| Stack Port |
Yes |
| Uplink Port |
No |
| Management & Protocols |
| Manageable |
Yes |
| Media & Performance |
| Ethernet Technology |
40 Gigabit Ethernet10 Gigabit Ethernet100 Gigabit Ethernet |
| Media Type Supported |
Optical Fiber |
| Network Technology |
100GBase-X10GBase-X40GBase-X |
| Network & Communication |
| Layer Supported |
3 |
| Power Description |
| Power Source |
Power Supply |
| Redundant Power Supply Supported |
Yes |
| General Information |
| Brand Name |
Aruba |
| Manufacturer |
Hewlett Packard Enterprise |
| Manufacturer Part Number |
JL375A |
| Product Model |
8400 |
| Product Name |
8400 8-slot Chassis |
| Product Series |
8400X |
| Product Type |
Switch Chassis |
| Physical characteristics |
| Compatible Rack Unit |
8U |
| Depth |
26'' |
| Form Factor |
Surface MountRail-mountableRack-mountable |
| Height |
13.8'' |
| Weight (Approximate) |
76 lb |
| Width |
17.4'' |
