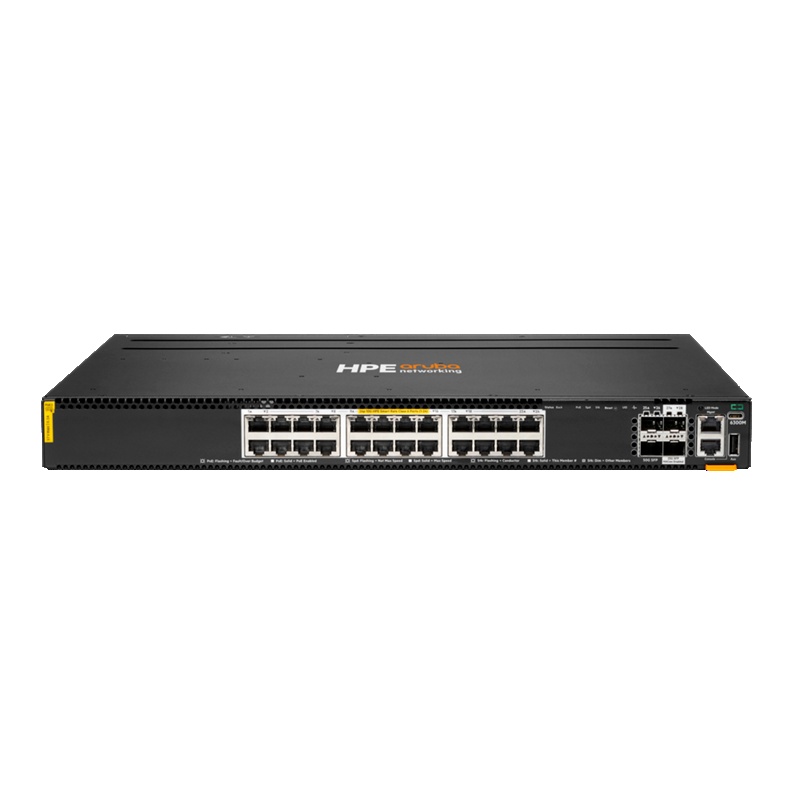

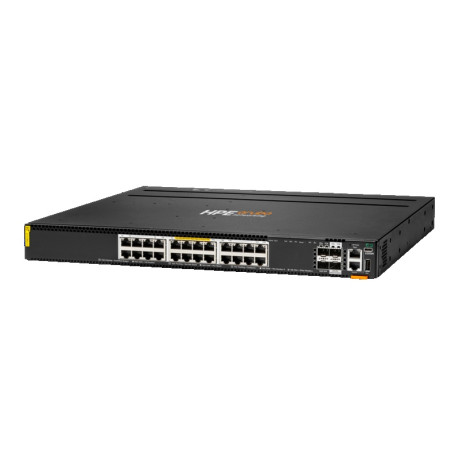

The HPE Aruba Networking Aruba 6300M 24SR CL6 PoE 2p50G 2p25G Switch is a high-performance, Layer 3 access switch designed for demanding enterprise environments. It provides a comprehensive set of features including 24 ports of IEEE 802.3at PoE+ for powering demanding devices like IP phones and wireless access points, along with two 25 Gigabit Ethernet ports and two 50 Gigabit Ethernet ports for high-speed uplinks. This switch is ideal for organizations that require a robust and scalable networking solution.
This Aruba 6300M switch offers advanced security features to protect your network from threats, including advanced access control lists (ACLs), dynamic segmentation, and integrated network security capabilities. The switch supports a variety of network management protocols for seamless integration into existing infrastructure. It's designed for ease of use and management, leveraging Aruba's Central management platform for simplified configuration, monitoring, and troubleshooting. Its compact design makes it suitable for a variety of deployment scenarios, from small offices to large enterprise campuses.
| I/O Expansions |
| Expansion Slot Type |
SFP |
| Number of SFP Slots |
4 |
| Total Number of Expansion Slots |
4.0 |
| Interfaces/Ports |
| Modular |
Yes |
| Network (RJ-45) |
Yes |
| Port/Expansion Slot Details |
24 x 10 Gigabit Ethernet PoE, 2 x 50 Gigabit Ethernet Expansion Slot, 2 x 25 Gigabit Ethernet Expansion Slot |
| Stack Port |
Yes |
| Total Number of Network Ports |
24 |
| Uplink Port |
Yes |
| Management & Protocols |
| Manageable |
Yes |
| Media & Performance |
| Ethernet Technology |
10 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet |
| Media Type Supported |
Optical Fiber, Twisted Pair |
| Network Technology |
10GBase-T, 25GBase-X, 50GBase-X |
| Miscellaneous |
| Application/Usage |
Branch Office, Data Center, Enterprise, Campus, Business |
| Network & Communication |
| Layer Supported |
3 |
| Networking Standards |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3an, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3cd |
| Power Description |
| Frequency |
50 Hz, 60 Hz |
| Input Voltage |
120 V AC, 230 V AC |

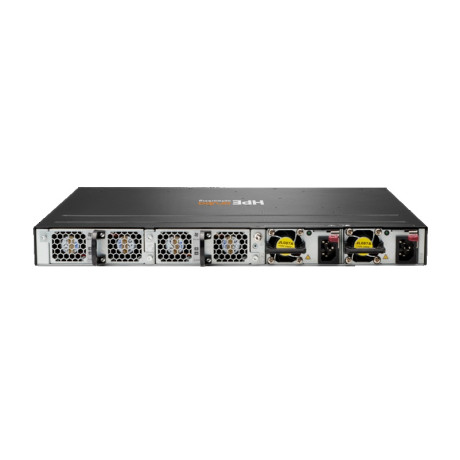

| Number of Power Supplies Supported |
2 |
| PoE (RJ-45) Port |
Yes |
| PoE Budget |
2.88 kW |
| Power Source |
Power Supply |
| Redundant Power Supply Supported |
Yes |
| General Information |
| Brand Name |
HPE |
| Manufacturer |
Hewlett Packard Enterprise |
| Manufacturer Part Number |
R8S89A |
| Manufacturer Website Address |
http://www.hpe.com |
| Product Name |
CX 6300 Layer 3 Switch |
| Product Series |
CX 6300 |
| Product Type |
Layer 3 Switch |
| Physical characteristics |
| Compatible Rack Unit |
1U |
| Depth |
15.16" (385 mm) |
| Form Factor |
Rack-mountable, Cabinet Mount, Surface Mount, Compact |
| Height |
1.73" (44 mm) |
| Weight (Approximate) |
11.60 lb (5260 g) |
| Width |
17.40" (442 mm) |
