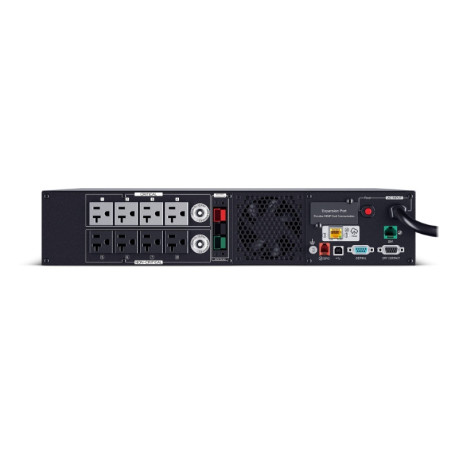

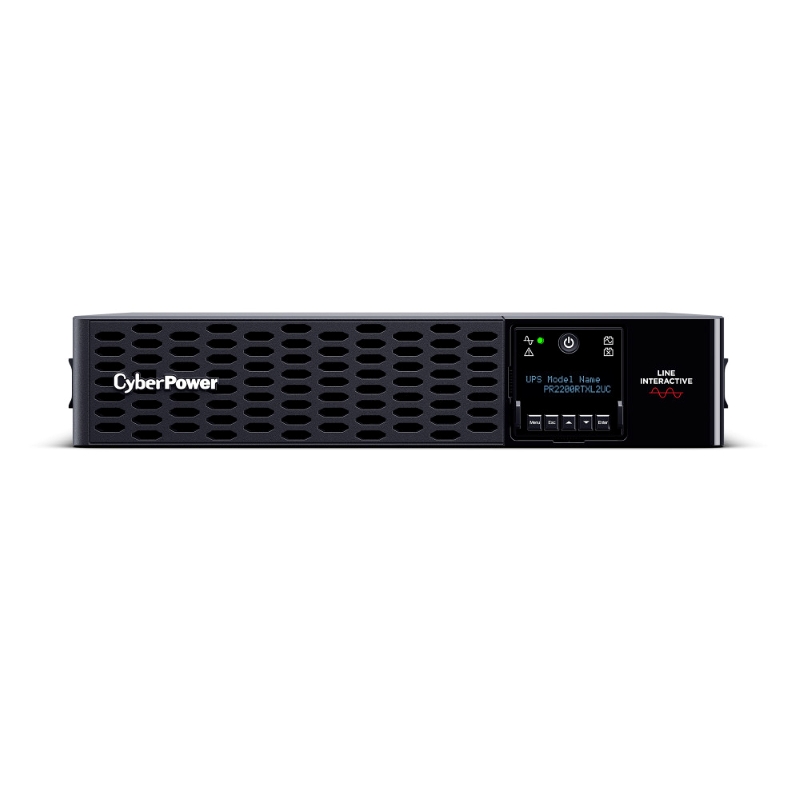

The CyberPower PR2200RTXL2UC is a high-performance 2200 VA / 1980 W line-interactive UPS designed to deliver reliable power protection for critical applications. Perfect for safeguarding servers, network hardware, and other sensitive electronics, this UPS features a versatile 2U rack/tower form factor with eight NEMA 5-20R outlets and a 10-foot NEMA L5-20P input cord. It offers robust surge protection rated at 2060 joules, ensuring comprehensive defense against power disturbances. The hot-swappable battery system provides approximately 3.6 minutes of runtime at full load and 12 minutes at half load, with a swift recharge time of just four hours to 90% capacity.
Featuring a multifunctional LCD panel, the PR2200RTXL2UC allows easy monitoring and configuration. It supports a wide array of management interfaces, including USB, serial, SNMP, and an emergency power-off (EPO) port, granting users versatile control options. The UPS is engineered with GreenPower UPS Bypass Technology to improve efficiency and reduce energy costs. It comes with PowerPanel Business Edition software for comprehensive power management and remote monitoring capabilities. The unit is backed by a 3-year limited warranty (including batteries) and a $400,000 Connected Equipment Guarantee, ensuring dependable operation and safeguarding your essential equipment investments.
| Battery Features |
| Battery Quantity |
4 |
| Battery Size |
12V / 9 Ah |
| Battery Type |
Sealed Lead-Acid Battery |
| Hot Swappable |
Yes |
| Recharge Time |
3 Hours (0% to 90% charged) |
| Compliance & Warranty |
| CEG Amount |
$400000 |
| RoHS Compliant |
RoHS Compliant |
| Safety |
UL 1778 VCCI FCC Class A CSA C22.2 No 107.3 |
| Warranty |
3 Year Limited Warranty |
| Electrical Protection Features |
| EMI/RFI Filtration |
Yes |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Surge Protection |
Yes, 2430 J |
| Input Characteristics |
| Frequency Range |
47 Hz 63 Hz |
| Plug Type |
NEMA L5-30P |
| Voltage Range |
75 VAC 149 VAC |
| Interfaces & Monitoring |
| Emergency Power Off (EPO) Port |
Yes |
| HID Compliant USB Port |
Yes |
| LCD Display |
Multifunction LCD |
| Management Software |
PowerPanel Business |
| Serial Port |
1 Serial 1 Dry Contact |
| Outlet Details |
| Outlet Type |
8 NEMA 5-20R |
| Total Number of Outlets |
8 |
| Output Characteristics |
| Battery Frequency |
50/60 Hz 1% |
| Battery Voltage |
100/110/120 VAC 5% |
| Battery Waveform |
Sine Wave |
| Capacity (VA) |
2200 VA |
| Capacity (Watts) |
2200 W |
| Physical Properties |
| Actual Dimensions (in) |
17.1 x 3.4 x 19.7 (in) |
| Actual Weight (lb) |
79.6 |
| Color |
Black |
| Cord Length |
10 ft (3.0 m) |
| Rack Unit Size |
2U |
| Shipping Dimensions (in) |
22 x 10.75 x 24.25 (in) |
| Shipping Weight (lb) |
90.6 |
| Runtime and Battery Maintenance |
| Battery Replaceability |
Yes |
| Full-Load Runtime |
3.2 min |
| Half-Load Runtime |
10 min |
| Unit Configuration |
| Energy Efficiency Mode |
GreenPower UPS Bypass Technology |
| Form Factor |
Rack / Tower |
| Model ID |
PR2200RTXL2UC |
| Rack Unit Size |
2U |
| Topology Type |
Line Interactive |
