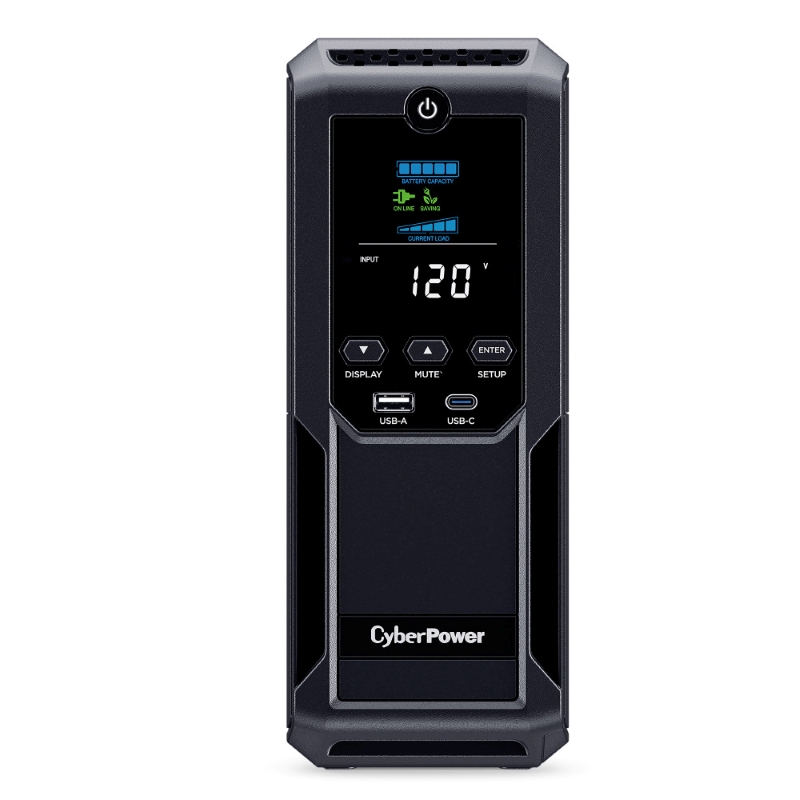

The CyberPower CP1350AVRLCD3 is a high-performance 1350 VA / 815 W line-interactive UPS designed to provide reliable battery backup and protection for home office and small business electronics. Equipped with a compact tower design, this unit features eight NEMA 5-15R outlets, four of which offer battery backup and surge protection, while the other four provide surge protection only. The CP1350AVRLCD3 integrates an intuitive, multifunction LCD panel that displays crucial information such as battery status, estimated runtime, load capacity, and more, making real-time monitoring straightforward and efficient.
Advanced features of the CP1350AVRLCD3 include Automatic Voltage Regulation (AVR) which stabilizes incoming AC signals to maintain a steady output, safeguarding connected devices from power fluctuations. Management options are accessible through USB connectivity, allowing seamless integration with included PowerPanel Personal Edition software for comprehensive power management and monitoring. This UPS is backed by a 3-year limited warranty and includes a $500,000 Connected Equipment Guarantee, ensuring your critical devices are protected and your investment is secure.
| Battery Features |
| Battery Quantity |
2 |
| Battery Size |
12V / 9 Ah |
| Battery Type |
Sealed Lead-Acid Battery |
| Recharge Time |
8 Hours |
| Compliance & Warranty |
| CEG Amount |
$500000 |
| RoHS Compliant |
RoHS Compliant |
| Safety |
UL1778 cUL 107 5th FCC DOC Class B |
| Warranty |
3 Year Limited Warranty |
| Electrical Protection Features |
| EMI/RFI Filtration |
Yes |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Surge Protection |
Yes, 1500 J |
| Input Characteristics |
| Frequency Range |
57 Hz 63 Hz |
| Plug Type |
NEMA 5-15P |
| Interfaces & Monitoring |
| HID Compliant USB Port |
Yes |
| LCD Display |
Multifunction LCD |

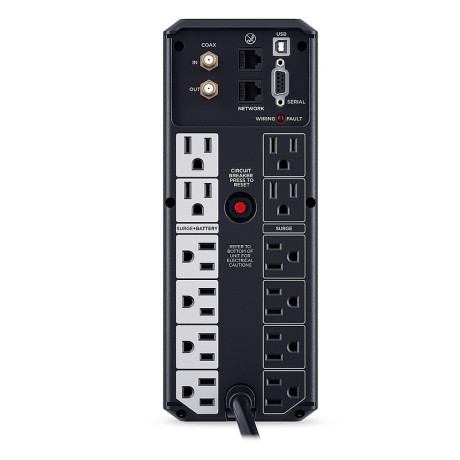

| Outlet Details |
| Outlet Type |
12 NEMA 5-15R |
| Total Number of Outlets |
12 |
| Output Characteristics |
| Battery Frequency |
60 Hz 1% |
| Battery Voltage |
120 VAC 5% |
| Battery Waveform |
Simulated Sine Wave |
| Capacity (VA) |
1350 VA |
| Capacity (Watts) |
815 W |
| Physical Properties |
| Actual Dimensions (in) |
3.94 x 10.2 x 13.78 (in) |
| Actual Weight (lb) |
23.8 |
| Color |
Black |
| Cord Length |
6 ft (1.8 m) |
| Shipping Dimensions (in) |
7.25 x 14.25 x 17.5 (in) |
| Shipping Weight (lb) |
24.4 |
| Runtime and Battery Maintenance |
| Battery Replaceability |
Yes |
| Full-Load Runtime |
4 min |
| Half-Load Runtime |
14 min |
| Unit Configuration |
| Energy Efficiency Mode |
GreenPower UPS Bypass Technology |
| Form Factor |
Mini-Tower |
| Model ID |
CP1350AVRLCD3 |
| Topology Type |
Line Interactive |
