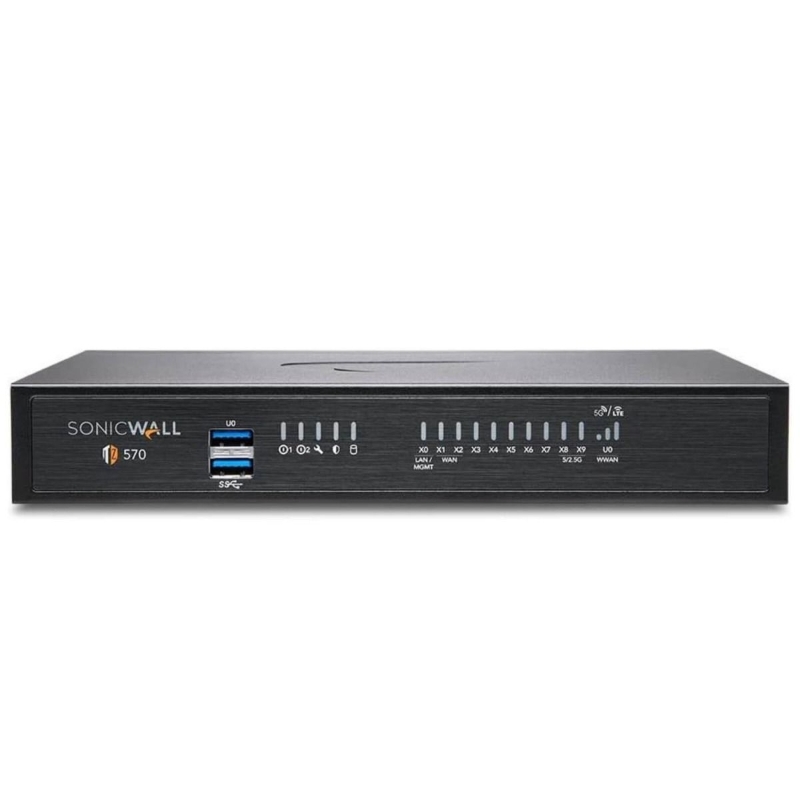

- SonicWall TZ570 High Availability Base Appliance (Main Unit Required)
The SonicWall TZ570 High Availability Base Appliance is expertly engineered to guarantee continuous network security and operational uptime for mid-sized businesses and distributed enterprises. This appliance is designed to function in an active/passive failover configuration alongside a primary TZ570 unit, ensuring seamless failover during network outages. This minimizes downtime and ensures uninterrupted threat protection. Equipped with advanced multicore security processors and running on the SonicOS 7.0 operating system, it delivers cutting-edge security features such as Real-Time Deep Memory Inspection (RTDMI) and Reassembly-Free Deep Packet Inspection (RFDPI), effectively defending against zero-day vulnerabilities and complex threats.
Optimized for performance and scalability, the TZ570 HA model boasts impressive specifications with a 4.0 Gbps firewall throughput, 2.0 Gbps threat prevention throughput, and 1.8 Gbps VPN throughput. It includes 10 high-density interfaces, featuring 8 x 1GbE and 2 x 5GbE ports, along with USB and console connectivity options. The unit supports a suite of integrated security services, including Gateway Anti-Virus, Intrusion Prevention, and Application Control, and offers an optional redundant power supply for enhanced reliability. Its compact desktop form factor makes it an ideal choice for environments that require high availability, robust performance, and uncompromising security.
| Additional Features | |
| Features | SD-WAN support, VLAN support, Firewall protection, VPN support, NAT support, Quality of Service (QoS), DHCP server, DHCP relay, Deep Packet Inspection (DPI), Content filtering, Antivirus analysis, Anti-spam protection, Stateful Packet Inspection (SPI), DoS attack prevention, IPv4 support, IPv6 support, Jumbo Frames support, VLAN trunking, Port mirroring, Bandwidth control, Common Access Card (CAC) reader support, NetFlow, PAT support, 3G/4G USB Dongle Support, Single Sign-On (SSO) support, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DDos attack prevention |
| Capacity | |
| DPI connections | 400000 |
| DPI SSL connections | 50000 |
| IPSec VPN clients | 10 (maximum 500) |
| Manageable access points | 32 |
| Single Sign-On (SSO) users | 2500 |
| SPI connections | 1250000 |
| SSL VPN licenses | 2 (maximum 200) |
| Virtual interfaces (VLANs) | 256 |
| VPN tunnels (site-to-site) | 200 |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 4.25 lbs |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 104 ??F |
| Min Operating Temperature | 32 ??F |
| Expansion / Connectivity | |

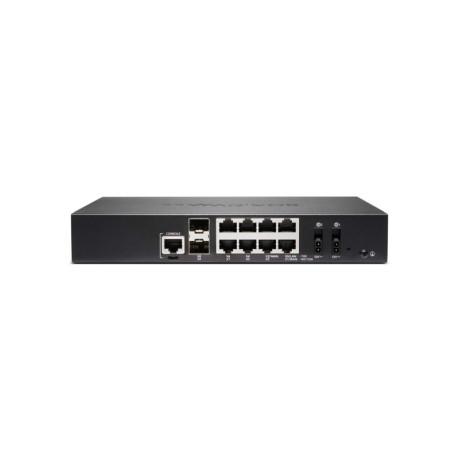

| Interfaces | 6 x 1000Base-T - RJ-45, 2 x 1000Base-T - RJ-45 (WAN), 2 x network - SFP+, 2 x USB 3.0 - Type A, 1 x console - RJ-45, 1 x console - micro-USB |
| IP Telephony | |
| VoIP Protocols | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
| Miscellaneous | |
| MTBF | 26.1 years |
| Networking and Systems | |
| Authentication Method | RADIUS, LDAP, XAUTH authentication |
| Compliant Standards | FIPS 140-2 Level 2, ICSA Firewall certified, ICSA Antivirus, Common Criteria, FCC Class B certified, ICES Class B, EMC, LVD, RoHS, C-Tick, VCCI Class B, UL, cUL, TUV GS, CB, WEEE, REACH, BSMI, KCC, MSIP, ANATEL |
| Security & Encryption | |
| Encryption Algorithm | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
| Software / System Requirements | |
| OS Provided | SonicOS 7.0 |
| Details | |
| Series | TZ Series |
| Warranty/Returns | 30 Days |
| Manufacturer | SonicWall |
| General | |
| Depth | 5.9 in |
| Device Type | Security appliance |
| Height | 1.4 in |
| Weight | 34.21 oz |
| Width | 8.9 in |
| Indicators | |
| Status Indicators | Test mode |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 5 Gigabit Ethernet |
| Form Factor | Desktop |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP, HTTPS, CLI, SSH |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) |
| Performance | |
| Anti-malware throughput | 2 Gbps |
| Application throughput | 2.5 Gbps |
| Connection rate | 16000 connections per second |
| Firewall throughput | 4 Gbps |
| IPS throughput | 2.5 Gbps |
| Threat prevention throughput | 2 Gbps |
| TLS/SSL inspection and decryption throughput | 750 Mbps |
| VPN throughput (IPSec) | 1.8 Gbps |
| Power | |
| Power Consumption Operational | 13.1 Watt |
| Power Device | External power adapter |
| Power Provided | 60 Watt |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50/60 Hz) |
