TZ Gen7 Datasheet

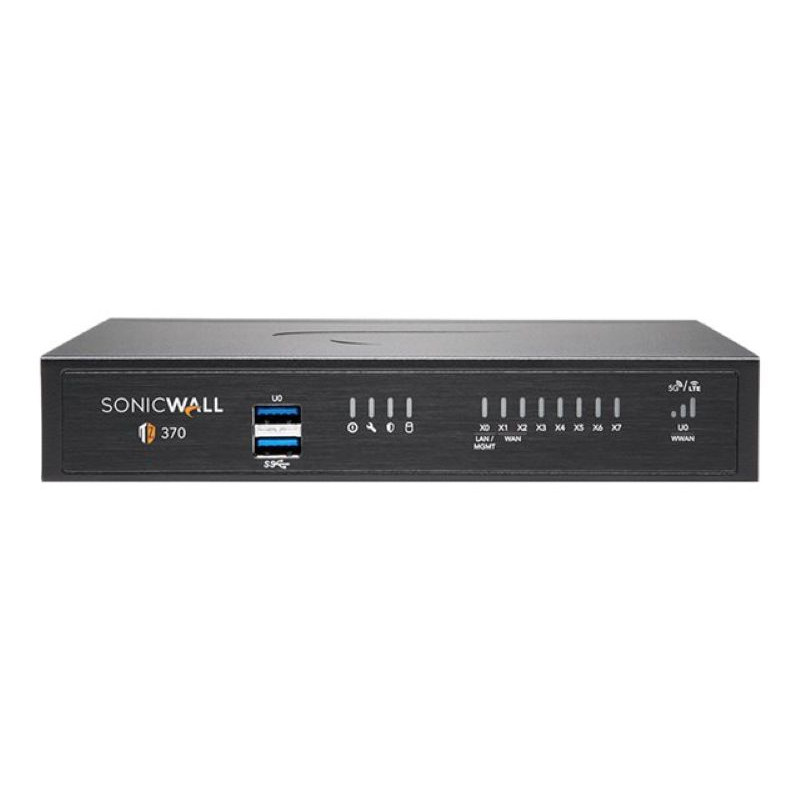

The SonicWall TZ370 Secure Upgrade Essential Edition (3 Years) with 1 Year of CSE is a high-performance next-generation firewall tailored for SMAll to medium-sized businesses and distributed enterprises. This desktop firewall is engineered to deliver a robust firewall inspection throughput of 3 Gbps and a threat prevention throughput of 1 Gbps, ensuring your network is shielded against evolving cyber threats. Equipped with 8 x 1GbE ports, it supports up to 100 SSL VPN clients, providing a balance of high capacity and secure connectivity. This makes it an ideal solution for businesses seeking comprehensive security without compromising on performance or connectivity.
This edition includes the Essential Protection Service Suite (EPSS), which offers a comprehensive suite of advanced threat protection features. These include Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall, and Content Filtering Premium Services. Additionally, it provides 24x7 support with firmware updates, SaaS/NSM On-Prem Management with 7-day alerting and basic reporting, as well as Cloud Secure Edge services for secure internet and private access. This package ensures that businesses have reliable, high-performance firewall security with simplified management and comprehensive threat defense, making it a valuable asset for safeguarding critical operations.
| Additional Features |
| Features |
SD-WAN support, VLAN support, firewall protection, VPN support, NAT support, Quality of Service (QoS), DHCP server, DHCP relay, Deep Packet Inspection (DPI), content filtering, antivirus analysis, anti-spam protection, Stateful Packet Inspection (SPI), DoS attack prevention, IPv4 support, IPv6 support, Jumbo Frames support, VLAN trunking, port mirroring, bandwidth control, Common Access Card (CAC) reader support, NetFlow, PAT support, 5G USB Dongle Support, Single Sign-On (SSO) support, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DDos attack prevention |
| Capacity |
| Authenticated users (internal database) |
250 |
| DPI connections |
200000 |
| DPI SSL connections |
30000 |
| IPSec VPN clients |
5 (maximum 200) |
| Manageable access points |
16 |
| Single Sign-On (SSO) users |
1000 |
| SPI connections |
900000 |
| SSL VPN licenses |
2 (maximum 100) |
| Virtual interfaces (VLANs) |
128 |
| VPN tunnels (site-to-site) |
100 |
| Dimensions & Weight (Shipping) |
| Shipping Weight |
3.11 lbs |
| Environmental Parameters |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Max Operating Temperature |
104 ??F |
| Min Operating Temperature |
32 ??F |
| Expansion / Connectivity |
| Interfaces |
6 x 1000Base-T - RJ-45, 2 x 1000Base-T - RJ-45 (WAN), 2 x USB 3.0 - Type A, 1 x console - RJ-45 |
| IP Telephony |
| VoIP Protocols |
SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 1 year |
| Miscellaneous |
| Compliant Standards |
FIPS 140-2 Level 2, ICSA Firewall certified, ICSA Antivirus, Common Criteria, FCC Class B certified, ICES Class B, EMC, LVD, RoHS, C-Tick, VCCI Class B, UL, cUL, TUV GS, CB, Mexico CoC, WEEE, REACH, BSMI, KCC, MSIP, ANATEL |
| MTBF |
51.1 years |
| Networking and Systems |
| Authentication Method |
RADIUS, LDAP, XAUTH authentication |
| Security & Encryption |
| Encryption Algorithm |
DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
| Software / System Requirements |
| OS Provided |
SonicOS 7.0 |
| Details |
| Series |
TZ Series |
| Warranty/Returns |
30 Days |
| Manufacturer |
SonicWall |
| General |
| Bundled Services |
3 years Essential Protection Service Suite and Cloud Secure Edge for 1 year SIA-Basic (10 users) and 1 year SPA-Advanced (3 users) |
| Depth |
5.3 in |
| Device Type |
Security appliance |
| Height |
1.4 in |
| Weight |
28.92 oz |
| Width |
7.5 in |
| Indicators |
| Status Indicators |
Link/activity, power, secure, SSD activity, test mode |
| Networking |
| Connectivity Technology |
Wired |
| Data Link Protocol |
Gigabit Ethernet |
| Form Factor |
Desktop |
| Network / Transport Protocol |
TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Remote Management Protocol |
SNMP 2, SNMP 3, HTTP, HTTPS, CLI, SSH |
| Routing Protocol |
OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) |
| Performance |
| Anti-malware throughput |
1 Gbps |
| Application throughput |
1.5 Gbps |
| Connection rate |
9000 connections per second |
| Firewall throughput |
3 Gbps |
| IPS throughput |
1.5 Gbps |
| Threat prevention throughput |
1 Gbps |
| TLS/SSL inspection and decryption throughput |
500 Mbps |
| VPN throughput (IPSec) |
1.3 Gbps |
| Power |
| Power Device |
External power adapter |
| Power Provided |
36 Watt |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
