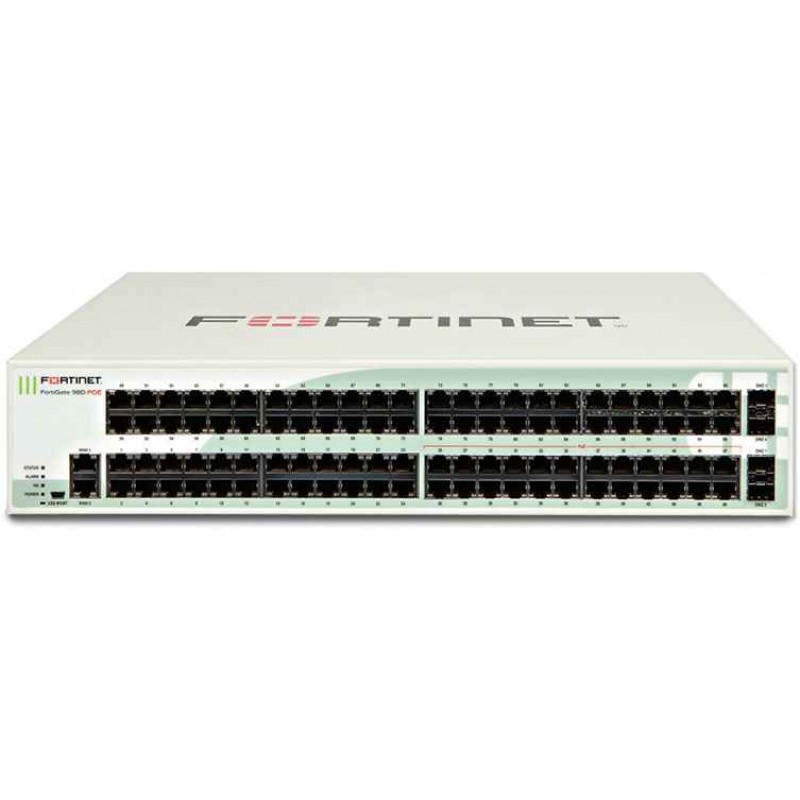

The FortiGate 94D-POE and 98D-POE are high port density, all-in-one security appliances that deliver Fortinet's Connected UTM. Ideal for remote, customer premise equipment (CPE) and retail networks, these FortiGates offer the network security, connectivity, and performance you need at a single low per-device price.
Download PDF datasheet for detailed product information
Download PDF datasheet for included services
| Dimensions |
| Form Factor |
2 RU |
| Height X Width X Length (inches) |
3.48 x 11.56 x 17.20 |
| Height X Width X Length (mm) |
88.5 x 293.6 x 437 |
| Weight |
14.8 lbs (6.7 kg) |
| Environment |
| Heat Dissipation |
949 BUT/h |
| Humidity |
20-90% non-condensing |
| Maximum Current |
110 V / 6 A, 220 V / 3 A |
| Operating Altitude |
Up to 7,400 ft (2,250 m) |
| Operating Temperature |
32-104°F (0-40°C) |
| Power Consumption (Average / Maximum) |
163 / 278W |
| Power Required |
110-240V AC, 50-60 Hz |
| Storage Temperature |
-31-158°F (-35-70°C) |
| Total Available PoE Power Budget* |
200 W |
| Hardware Specifications |
| Console (RJ45) |
1 |
| FE RJ45 PoE Ports |
24 |
| GE RJ45 Switch Ports |
72 |
| GE RJ45 WAN Ports |
2 |
| GE SFP DMZ Slots |
4 |
| Internal Storage |
32 GB |
| USB Ports (Client / Server) |
1 / 1 |
| System Performance |
| Application Control Throughput |
34 Mbps |
| CAPWAP Throughput |
260 Mbps |
| Client-to-Gateway IPsec VPN Tunnels |
1,000 |
| Concurrent Sessions (TCP) |
2 Million |
| Concurrent SSL-VPN Users (Recommended Maximum) |
200 |
| Firewall Policies |
5,000 |
| Firewall Throughput (1518 / 512 / 64 Byte UDP Packets) |
3.5 / 3.5 / 3.5 Gbps |
| Firewall Throughput (Packets Per Second) |
5.3 Mpps |
| Gateway-to-Gateway IPsec VPN Tunnels |
200 |
| High Availability Configurations |
Active / Active, Active / Passive, Clustering |
| IPS Throughput (HTTP / Enterprise Mix) |
275 / 41 Mbps |
| IPsec VPN Throughput (512 Byte Packets) |
1 Gbps |
| Maximum Number Of FortiAPs (Total / Tunnel Mode) |
32 / 16 |
| Maximum Number Of FortiTokens |
100 |
| Maximum Number Of Registered FortiClients |
200 |
| New Sessions/Second (TCP) |
4,000 |
| NGFW Throughput |
25 Mbps |
| SSL Inspection Throughput |
35 Mbps |
| SSL-VPN Throughput |
35 Mbps |
| Threat Protection Throughput |
22.5 Mbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
