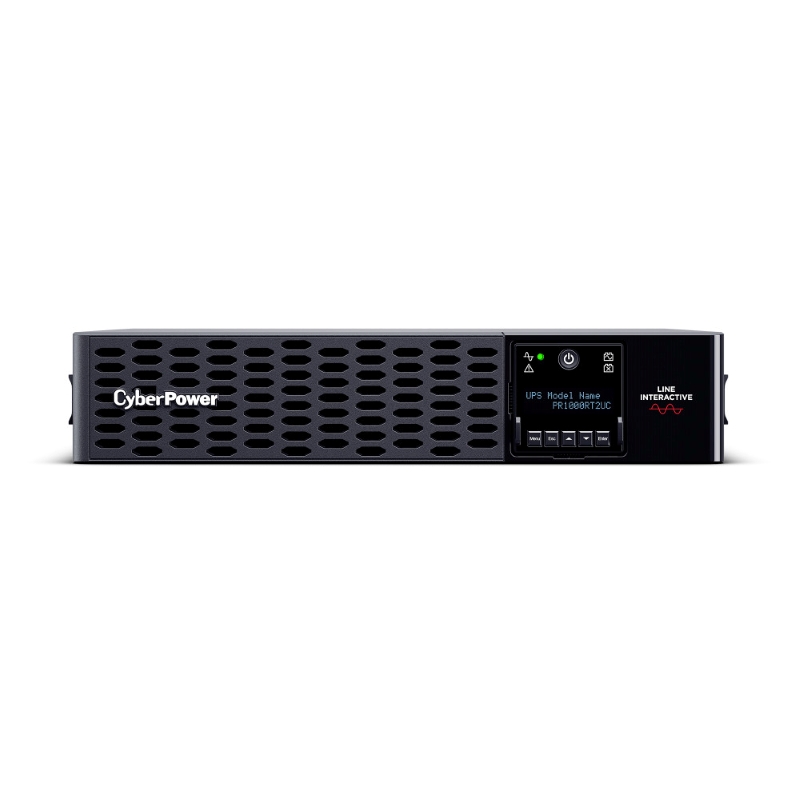

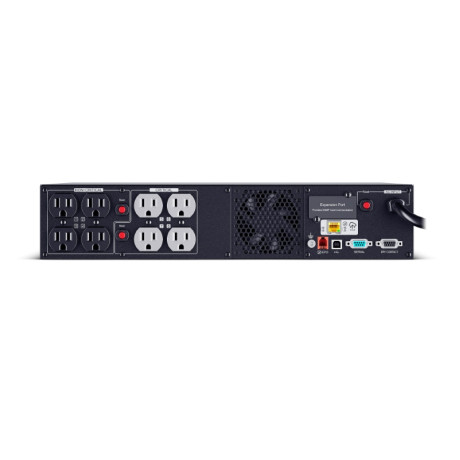

The CyberPower PR1000RT2UC is a high-performance 1000 VA / 900 W line-interactive UPS designed to provide reliable power protection for critical IT equipment. Suitable for small servers, network devices, and workstations, this UPS features a versatile 2U rack/tower convertible form factor. It is equipped with eight NEMA 5-15R outlets to ensure continuous power delivery and a 10-foot NEMA 5-15P input cord for flexible installation. The PR1000RT2UC offers essential surge protection and voltage regulation to guard against power fluctuations, helping to prolong the lifespan of your sensitive electronics.
The unit includes a user-friendly LCD panel that provides real-time UPS status and power information, which can be rotated for optimal visibility in any setup. Multiple management options are supported through USB, serial, and SNMP connections, allowing for seamless integration into existing network environments. The PR1000RT2UC is compatible with PowerPanel Business Edition software, offering sophisticated monitoring and management capabilities. With a 3-year limited warranty covering both the UPS and its batteries, along with a $375,000 Connected Equipment Guarantee, this UPS delivers both reliability and assurance for your critical power needs.
| Battery Features |
| Battery Quantity |
4 |
| Battery Size |
12V / 7 Ah |
| Battery Type |
Sealed Lead-Acid Battery |
| Hot Swappable |
Yes |
| Recharge Time |
3 Hours (0% to 90% charged) |
| Compliance & Warranty |
| CEG Amount |
$400000 |
| RoHS Compliant |
RoHS Compliant |
| Safety |
UL1778 CSA C22.2 No 107.3 FCC Class B VCCI DOE Compliant |
| Warranty |
3 Year Limited Warranty |
| Electrical Protection Features |
| EMI/RFI Filtration |
Yes |
| Overload Protection |
On Battery: Internal Circuitry Limiting On Utility: Circuit Breaker Protected |
| Surge Protection |
Yes, 2430 J |
| Input Characteristics |
| Frequency Range |
47 Hz 63 Hz |
| Plug Type |
NEMA 5-15P |
| Voltage Range |
75 VAC 149 VAC |
| Interfaces & Monitoring |
| Emergency Power Off (EPO) Port |
Yes |
| HID Compliant USB Port |
Yes |
| LCD Display |
Multifunction LCD |
| Management Software |
PowerPanel Business |
| Serial Port |
1 Serial 1 Dry Contact |
| Outlet Details |
| Outlet Type |
8 NEMA 5-15R |
| Total Number of Outlets |
8 |
| Output Characteristics |
| Battery Frequency |
50/60 Hz 1% |
| Battery Voltage |
100/110/120/125 VAC 5% |
| Battery Waveform |
Sine Wave |
| Capacity (VA) |
1000 VA |
| Capacity (Watts) |
1000 W |
| Physical Properties |
| Actual Dimensions (in) |
17.1 x 3.4 x 16.2 (in) |
| Actual Weight (lb) |
50.1 |
| Color |
Black |
| Cord Length |
10 ft (3.0 m) |
| Rack Unit Size |
2U |
| Shipping Dimensions (in) |
20.75 x 10.5 x 22.00 (in) |
| Shipping Weight (lb) |
57.4 |
| Runtime and Battery Maintenance |
| Battery Replaceability |
Yes |
| Full-Load Runtime |
7 min |
| Half-Load Runtime |
19.5 min |
| Unit Configuration |
| Energy Efficiency Mode |
GreenPower UPS Bypass Technology |
| Form Factor |
Rack / Tower |
| Model ID |
PR1000RT2UC |
| Rack Unit Size |
2U |
| Topology Type |
Line Interactive |
