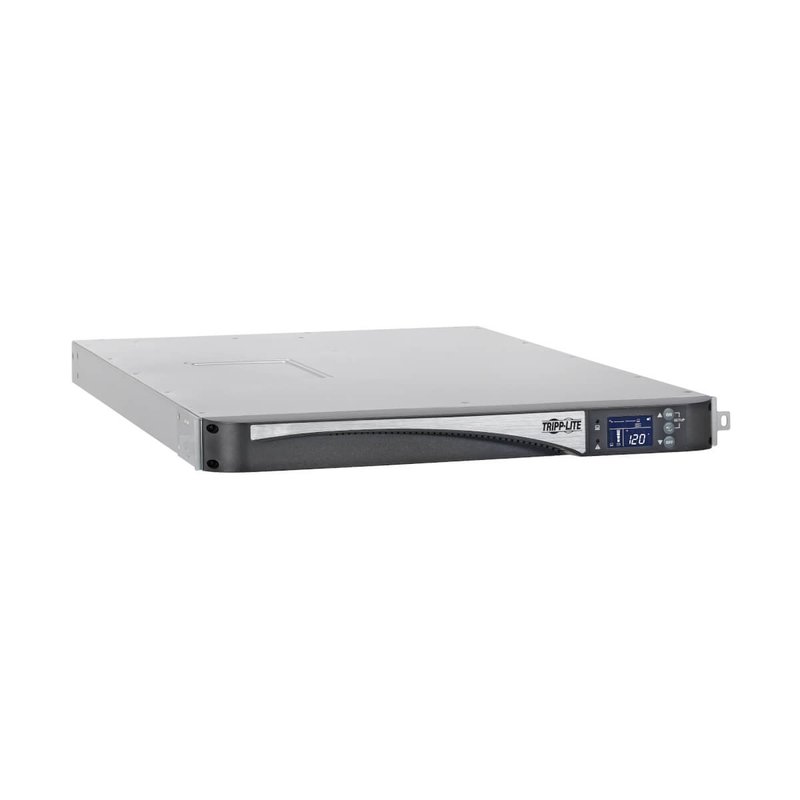

Tripp Lite SMC1500RT1U SmartPro 1440VA 1100W Line-Interactive Sine Wave UPS AVR 120V 5 Outlets Network Card Option LCD USB 1U Rack/Tower
$698.00
Manufacturer:Eaton / Tripp Lite
Model:SMC1500RT1U
Condition:New
Availability:In Stock
Condition:New
Availability:In Stock
- Power Protection
- Eaton / Tripp Lite
- UPS System
- SMC Series
- UPS Battery Backup
- Search
- Tripp Lite SMC1500RT1U SmartPro 1440VA 1100W Line-Interactive Sine Wave UPS AVR 120V 5 Outlets Network Card Option LCD USB 1U Rack/Tower
Datasheet
The Tripp Lite SMC1500RT1U Smart UPS provides reliable battery backup and surge protection for connected devices offering 1440VA/1100W of power capacity in a versatile 1U rack/tower form factor. Its pure sine wave output ensures compatibility with sensitive electronics while automatic voltage regulation (AVR) corrects minor power fluctuations without switching to battery.
This UPS offers convenient connectivity options including USB and DB9 ports for monitoring and control. Ideal for protecting servers workstations and other critical equipment the SMC1500RT1U delivers dependable performance and peace of mind in a compact design.
| APPLICATIONS | |
| UPS Applications | High-End Desktop/Small Network; Retail/Point of Sale; Hospitality |
| COMMUNICATIONS | |
| Communications Cable | USB cabling included |
| Communications Interface | (1) EPO (emergency power off); Slot for SNMP/Web interface; (1) USB (HID enabled) |
| Emergency Power Off (EPO)/Remote On-Off (ROO) | Phoenix-style connection supports Emergency Power Off and Remote ON/OFF functions. |
| Network Management Card Description | Network management card optional |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions |
| PowerAlert Software | For local monitoring via the UPSs built-in communication ports download PowerAlert software at https://tripplite.eaton.com/products/power-alert |
| WatchDog Compatibility | Supports Watchdog application OS and hard-reboot restart options for remote applications |
| DETAIILS | |
| Manufacturer | Tripp Lite |
| Manufacturer Part Number | SMC1500RT1U |
| FEATURES & SPECIFICATIONS | |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Grounding Details | Back panel grounding lug |
| High Availability UPS Features | Auto Probe Monitoring (requires WEBCARDLXE); Automatic Voltage Regulation (AVR); Hot swappable batteries; Remote management; Surge/noise protection |
| LINE / BATTERY TRANSFER | |
| High Voltage Transfer to Battery Power (Setpoint) | 162 VAC (120VAC/127VAC INPUT) 139 VAC (100VAC INPUT) +/- 5% |
| Low Voltage Transfer to Battery Power (Setpoint) | 100V: 80VAC +/- 5% (HI sensitivity) 70VAC +/- 5% (LO sensitivity) @120V: 89VAC +/- 5% (HI sensitivity) 70VAC+/- 5% (LO sensitivity) @127V: 93VAC+/- 5% (HI sensitivity) 70VAC+/- 5% (LO sensitivity) |
| Transfer Time | 6-8 ms typical ( < 10 ms max) |
| OVERVIEW | |
| UPC Code | 037332239358 |
| UPS Type | Line-Interactive |
| STANDARDS & COMPLIANCE | |
| Product Certifications | CSA (Canada); UL 1778 |
| Product Compliance | ENERGY STAR Qualified; FCC Part 15 Class B (USA) |
| SURGE / NOISE SUPPRESSION | |
| AC Suppression Joule Rating | 540 |
| AC Suppression Response Time | Instantaneous |
| EMI / RFI AC Noise Suppression | Yes |
| USER INTERFACE ALERTS & CONTROLS | |
| Audible Alarm | Audible alarm indicates UPS startup power-failure warnings and low-battery conditions |
| Front Panel LCD Display | Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data plus configuration of voltage frequency operating mode alarm function and a variety of additional options (see manual) |
| LED Indicators | 2 LEDs indicate AC output status (Green); UPS fault (Solid Red)/ UPS abnormal conditions (Flashing Red). |
| Switches | ON button controls UPS ON Cold-start Self-test and menu functions. OFF button controls unit off fault clearance and menu functions. Alarm/Enter button control audible alarm state and menu confirmation. |
| VOLTAGE REGULATION | |
| Overvoltage Correction | Voltage reduction of 15% applies when input is 139V to 162V (120V) 145V to 162V (127V) 115V to 139V (100v); All voltage setpoints within 5% tolerance |
| Undervoltage Correction | Voltage boost of 15% applies when input is 89V (HI Sensitivity) / 70V (LO sensitivity) to 102V @120V 93V (HI sensitivity) / 70V (LO sensitivity) to 108V @127V 80V (Hi sensitivity)/ 70V @100V; All voltage setpoints within 5% tolerance |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 70V @ 120V/127V/100V (5%). Input voltage range of 70V to 139V @ 100V; 70V to 162V @ 120V / 127V settings |
| Battery | |
| Battery Access | Battery access panel |
| Battery Recharge Rate (Included Batteries) | 6 Hours to 90% |
| Battery Replacement Description | Hot-swappable user replaceable batteries |
| DC System Voltage (VDC) | 36 |
| Expandable Runtime | No |
| Runtime Full Load (min.) | 2 min. (1100W) |
| Runtime Half Load (min.) | 8 min. (550W) |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Details | |
| Category | UPS System |
| Environmental | |
| AC Mode Efficiency Rating (100% Load) | 98% |
| Audible Noise | 40 dBA maximum front side 1m |
| Operating Temperature Range | 32 to 104F (0 to 40C) |
| Relative Humidity | 0-95% non-condensing |
| Storage Temperature Range | 5 to 122F (-15 to 50C) |
| Operating Elevation | 0-3280 ft. (0-1000 m) |
| Input | |
| Input Circuit Breakers | 15A |
| Input Phase | Single-Phase |
| Maximum Input Amps | 12 |
| Nominal Input Voltage(s) Supported | 100V AC; 120V AC; 127V AC |
| Rated input current (Maximum Load) | 11.3A (100V); 12A (120V); 10.8A (127V) |
| Recommended Electrical Service | 15A 120V |
| UPS Input Connection Type | 5-15P |
| UPS Input Cord Length (ft.) | 6 |
| UPS Input Cord Length (m) | 1.8 |
| Output | |
| Frequency Compatibility | 50 / 60 Hz |
| Frequency Compatibility Details | Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal. |
| Individually Controllable Load Banks | No |
| Nominal Output Voltage(s) Supported | 120V |
| Nominal Voltage Details | 120V sinusoidal in line mode and 120V sinusoidal in battery mode |
| Output AC Waveform (AC Mode) | Pure Sine wave |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Output Capacity (kVA) | 1.44 |
| Output Capacity (kW) | 1.1 |
| Output Capacity (VA) | 1440 |
| Output Capacity (Watts) | 1100 |
| Output Capacity Details | 1440 VA @ 120VAC and 127VAC 100VAC: 1080 VA |

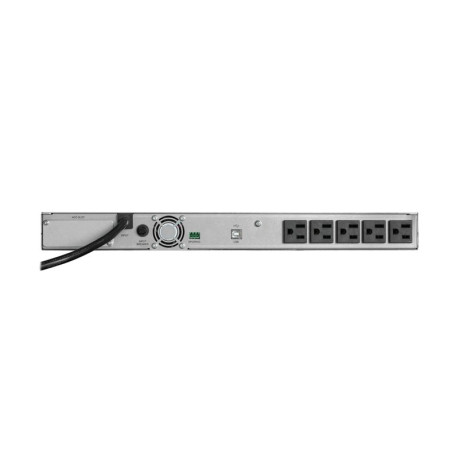

| Output Receptacles | (5) 5-15R |
| Output Voltage Regulation (Battery Mode) | -10% +6% |
| Output Voltage Regulation (Line Mode) | For 100V: 90VAC +/-5% -115VAC +/- 5% (78VAC +/- 5% -115VAC +/- 5%(@70VAC Input)) For 120V: 102VAC +/-5% -139VAC +/- 5% (78VAC +/- 5% -139VAC +/- 5%(@70VAC Input)) For 127V: 108VAC +/- 5% -145VAC +/- 5% (78VAC +/-5% -145VAC +/- 5% (@70VAC Input)) |
| Power Factor | 0.76 |
| Physical | |
| Cooling Method | Fan |
| Installation Form Factors Supported with Included Accessories | 2 post 19 inch rackmount; 2 post front mount; 4 post 19 inch rackmount; Tower |
| Maximum Device Depth (cm) | 55.37 |
| Maximum Device Depth (in.) | 21.8 |
| Maximum Device Depth (mm) | 554 |
| Minimum Required Rack Depth (cm) | 63.50 |
| Minimum Required Rack Depth (inches) | 25 |

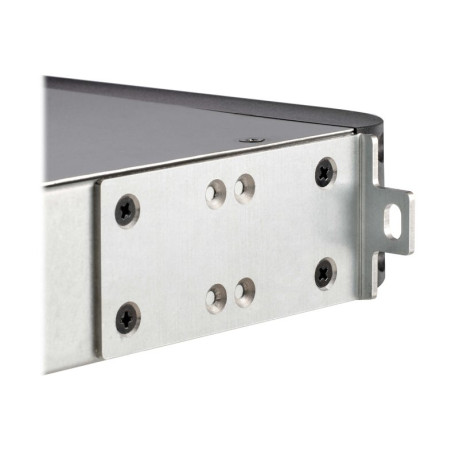

| Mounting Details | Included mounting brackets provide front-rail installation in 2 or 4 post racks plus upright tower configurations |
| Primary Form Factor | Rackmount; Tower |
| Primary UPS Depth (mm) | 554 |
| Primary UPS Height (mm) | 44 |
| Primary UPS Width (mm) | 440 |
| Unit Weight (kg) | 16.80 |
| Unit Weight (lbs.) | 37.037 |
| UPS Housing Material | Steel |
| UPS Power Module Weight (kg) | 16.80 |
| UPS Power Module Weight (lbs.) | 37.037 |
| Rack Height | 1U |
| Warranty | |
| Warranty/Returns | 30 Days |
