Datasheet

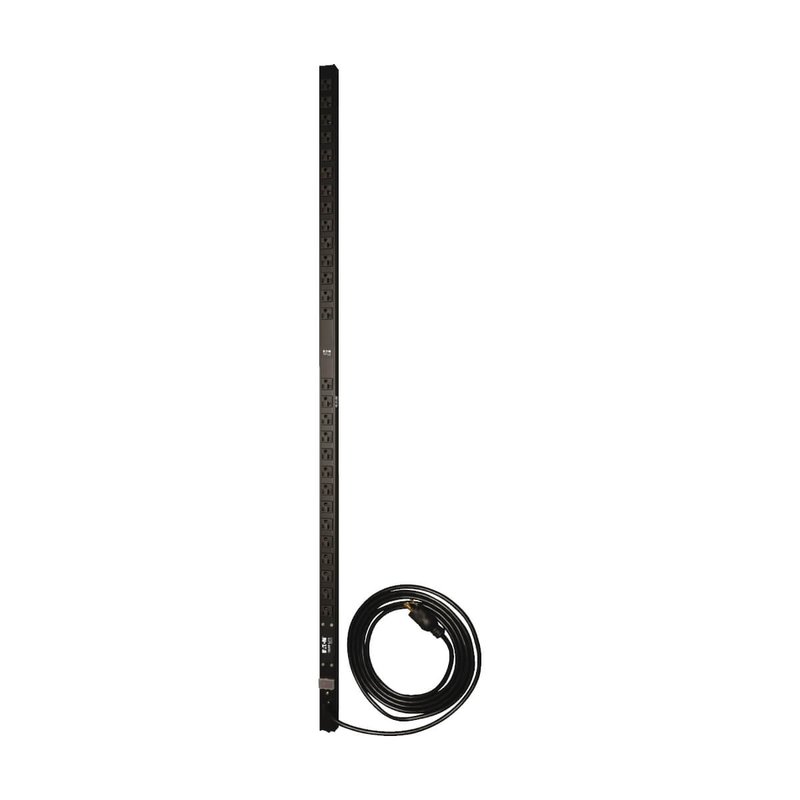

The Tripp Lite PDUV20-60 Basic Power Distribution Unit (PDU) offers 28 NEMA 5-15/20R outlets allowing you to power multiple devices from a single L5-20P input. A convenient included L5-20P to 5-20P adapter expands compatibility with various power sources. With a substantial 1.9kW power capacity this PDU is ideal for data centers network closets and other demanding environments.
Featuring a 15-foot cord and a compact 60-inch form factor the PDUV20-60 provides flexible placement options. This robust PDU simplifies power distribution and ensures reliable operation for your connected equipment.
| DETAIILS |
| Manufacturer |
Tripp Lite |
| Manufacturer Part Number |
PDUV20-60 |
| OVERVIEW |
| PDU Type |
Basic |
| UPC Code |
037332256003 |
| STANDARDS & COMPLIANCE |
| Product Certifications |
CSA (Canada); NOM (Mexico); UL 60950-1 |
| Product Compliance |
RoHS |
| SURGE / NOISE SUPPRESSION |
| Automatic Shut-Off |
No |
| USER INTERFACE ALERTS & CONTROLS |
| Switches |

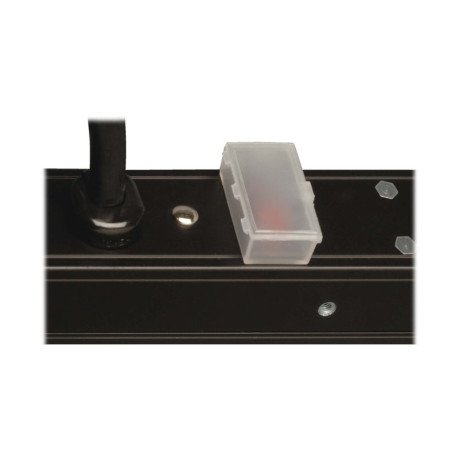

Lighted on/off switch with integrated transparent saftey cover |
| Details |
| Category |
Power Distribution Units (PDUs) |
| Environmental |
| Operating Temperature Range |
32 to 104F (0 to 40C) |
| Relative Humidity |
5% to 95% non-condensing |
| Storage Temperature Range |
-22 to 122F (-30 to 50C) |
| Operating Elevation |
0-10000 ft. (0-3000 m) |
| Input |
| Input Connection Type |
NEMA 5-20P; NEMA L5-20P |
| Input Cord Length (ft.) |
15 |
| Input Cord Length (m) |
4.57 |
| Input Phase |
Single-Phase |
| Maximum Input Amps |
16 |
| Maximum Input Amps Details |
Agency de-rated to 16A continuous |
| PDU Input Voltage |
120 |
| PDU Plug Type |
NEMA 5-20P; NEMA L5-20P |
| Recommended Electrical Service |
Single-phase 20A 120V service |
| Output |
| Frequency Compatibility |
50 / 60 Hz |
| Output Capacity Details |
1.92kW (120V) / 16A total capacity; 16A max per outlet |
| Output Nominal Voltage |
120V |
| Output Receptacles |
(28) 5-15/20R |
| Overload Protection |
20A circuit breaker |
| Physical |
| PDU Form Factor |
Vertical (0U) |
| Shipping Dimensions (hwd / in.) |
2.40 x 3.50 x 63.20 |
| Unit Dimensions (hwd / cm) |
153.59 x 3.81 x 4.17 |
| Unit Dimensions (hwd / in.) |
60.470 x 1.500 x 1.640 |
| Unit Weight (kg) |
2.44 |
| Unit Weight (lbs.) |
5.39 |
| Form Factors Supported |
Vertical |
| Material Of Construction |
Aluminum |
| Rack Height |
0U |
| Shipping Weight (kg) |
3.18 |
| Warranty |
| Warranty/Returns |
30 Days |
