Tripp Lite PDUH32HV 7.7kW Single-Phase 200-240V Basic PDU 10 C13 Outlets IEC 309 32A Blue Input 3.6 m Cord 1U Rack-Mount PDU Series

Tripp Lite PDUH32HV 7.7kW Single-Phase 200-240V Basic PDU 10 C13 Outlets IEC 309 32A Blue Input 3.6 m Cord 1U Rack-Mount

$279.37
Manufacturer:Eaton / Tripp Lite
Model:PDUH32HV
Condition:New
Availability:In Stock

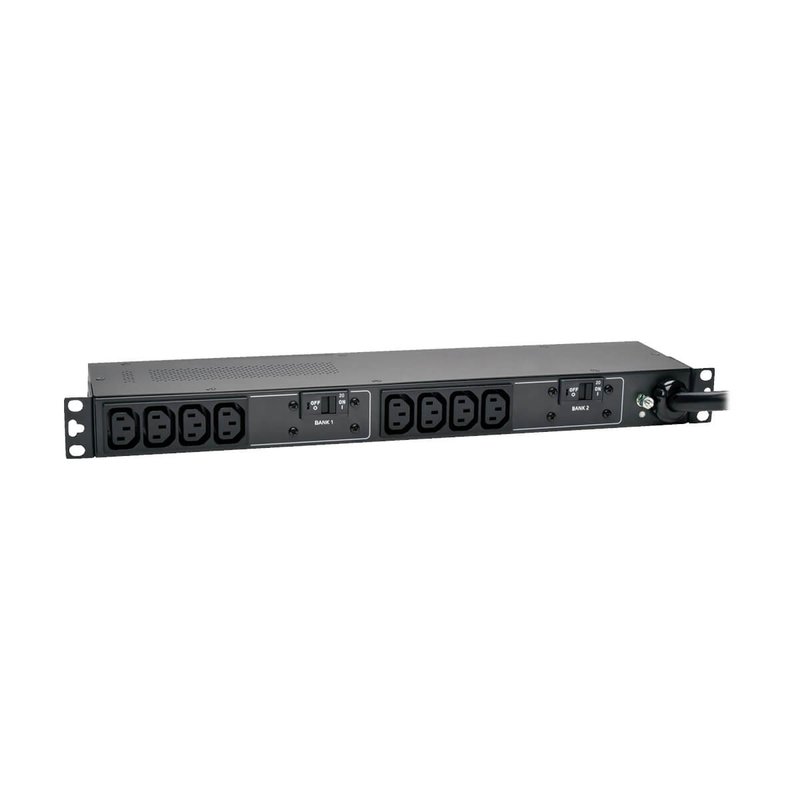

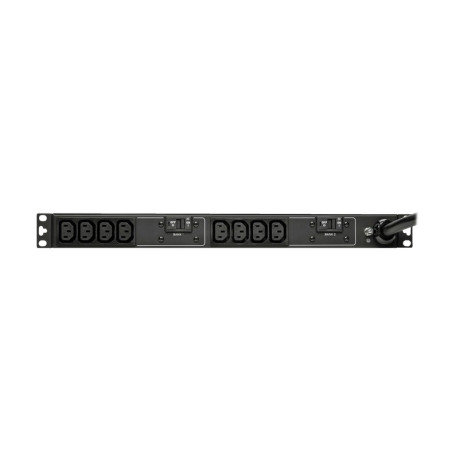

The Tripp Lite PDUH32HV provides 32A at 230V with 10 C13 outlets. This 1U horizontal PDU is ideal for rackmount applications offering basic power distribution in a compact form factor.
Datasheet

The Tripp Lite PDUH32HV Basic PDU distributes 230V power to up to ten devices through its C13 outlets. With a 32A rating and 7.4kW capacity this PDU is ideal for powering multiple devices within a rackmount environment.

Its horizontal 1U design conserves valuable rack space while the blue IEC-309 input connector ensures easy identification and secure connection to your power source. This basic PDU provides a reliable and efficient power solution for data centers and network closets.

DETAIILS
Manufacturer Tripp Lite
Manufacturer Part Number PDUH32HV
FEATURES & SPECIFICATIONS
Grounding Grounding lug
OVERVIEW
PDU Type Basic
UPC Code 037332183224
STANDARDS & COMPLIANCE
Product Certifications IEC 62368-1
Product Compliance RoHS; CE (Europe); EAC (Belarus Kazakhstan Russia); FCC Part 15 Class A (USA)
SURGE / NOISE SUPPRESSION
Automatic Shut-Off No
Details
Category Power Distribution Units (PDUs)
Environmental
Operating Temperature Range 32 to 104F (0 to 40C)
Relative Humidity 5% to 95% non-condensing
Storage Temperature Range -22 to 122F (-30 to 50C)
Operating Elevation 0-10000 ft. (0-3000 m)
Input
Input Connection Type IEC-60309 32A BLUE (2P+E)
Input Cord Length (ft.) 12
Input Cord Length (m) 3.66
Input Phase Single-Phase
Maximum Input Amps 32
PDU Input Voltage 200; 208; 220; 230; 240
PDU Plug Type IEC-60309 32A BLUE (2P+E)
Recommended Electrical Service Single-phase 32A 200-240V service
Output
Frequency Compatibility 50 / 60 Hz
Output Capacity Details 7.7kW (240V) 7.4kW (230V) 7kW (220V) 6.7kW (208V) 6.4kW (200V) / 32A total capacity; 16A max per breakered outlet bank; 10A max per C13 outlet
Output Nominal Voltage 200-240V
Output Receptacles (10) C13
Overload Protection Two 20A circuit breakers protect 5 outlets each
Physical
Minimum Required Rack Depth (cm) 15.24
Minimum Required Rack Depth (inches) 6
PDU Form Factor Horizontal (1U)
Shipping Dimensions (hwd / cm) 7.62 x 51.44 x 28.58
Shipping Dimensions (hwd / in.) 3.00 x 20.25 x 11.25
Unit Dimensions (hwd / cm) 4.5 x 44.5 x 9.53
Unit Dimensions (hwd / in.) 1.700 x 17.300 x 3.750
Unit Weight (kg) 2.87
Unit Weight (lbs.) 6.32
Form Factors Supported 1U rackmount 0U vertical mount wallmount and under-counter
Material Of Construction Metal
Rack Height 1U
Shipping Weight (kg) 3.21
Shipping Weight (lbs.) 7.07
Warranty
Warranty/Returns 30 Days
