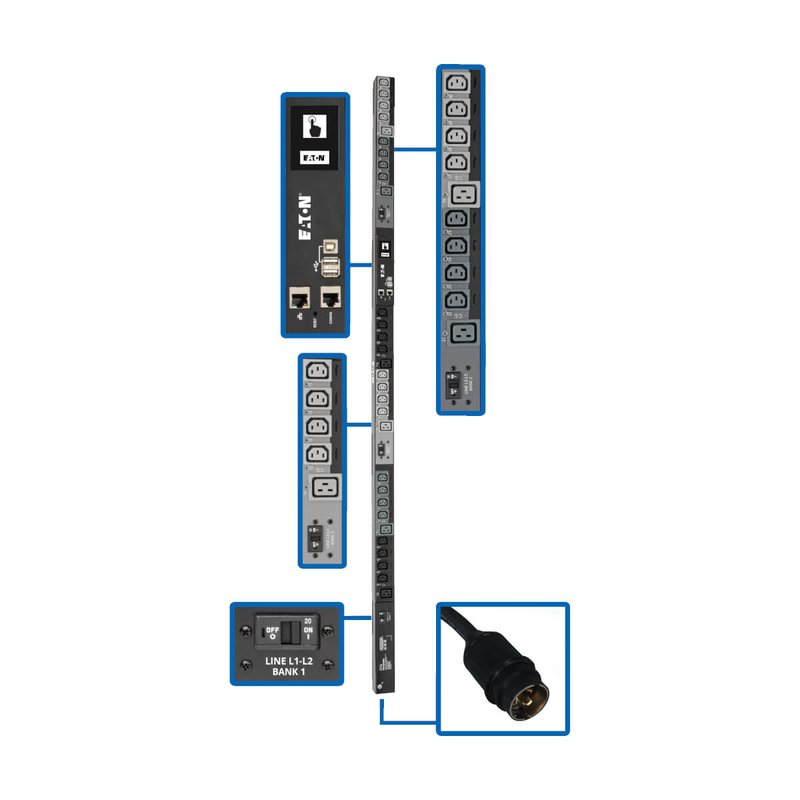

Tripp Lite PDU3EVSR6L2130 Eaton 10kW 200-240V 3PH Switched PDU - LX Interface Gigabit 30 Outlets L21-30P Input LCD 1.8 m Cord 0U 1.8 m Height TAA PDU Series

Tripp Lite PDU3EVSR6L2130 Eaton 10kW 200-240V 3PH Switched PDU - LX Interface Gigabit 30 Outlets L21-30P Input LCD 1.8 m Cord 0U 1.8 m Height TAA

$1,498.99
Manufacturer:Eaton / Tripp Lite
Model:PDU3EVSR6L2130
Condition:New
Availability:In Stock
The Tripp Lite PDU3EVSR6L2130 3-phase switched PDU provides 10kW power distribution via 4 C13 & 6 C19 outlets. Features LX Platform interface touchscreen LCD and L21-30P input for 200/208/240V operation. 0U TAA compliant.
Datasheet

The Tripp Lite PDU3EVSR6L2130 is a 10kW 3-phase switched PDU ideal for high-density data center applications. It features an LX Platform interface for remote monitoring and control a user-friendly touchscreen LCD and offers 4 C13 and 6 C19 outlets distributing 200/208/240V power. The 0U design saves valuable rack space.

Equipped with an L21-30P input plug this TAA-compliant PDU ensures reliable power distribution for critical equipment. The integrated LX Platform offers advanced features for managing power usage and optimizing efficiency in your data center environment.

COMMUNICATIONS
Communications Cable USB B-to-USB A Configuration/Console Access cable
Communications Interface Pre-installed network card; RS-232; USB
Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet); 1 Gbps (Gigabit)
Network Monitoring Port RJ45 Network port RJ45 Config/Console Access port; 2x USB A ports supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules. USB B port (Configuration & Console Access)
PowerAlert Software LX Platform Interface: PowerAlert Device Manager
SNMP Compatibility SNMP V1 V2c V3
DETAIILS
Manufacturer Tripp Lite
Manufacturer Part Number PDU3EVSR6L2130
FEATURES & SPECIFICATIONS
High Availability PDU Features Auto Probe Monitoring and Reboot (included); Auto Load Shedding
OVERVIEW
PDU Type Switched
UPC Code 037332195395
STANDARDS & COMPLIANCE
Product Certifications CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1
Product Compliance RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
SURGE / NOISE SUPPRESSION
Automatic Shut-Off No
USER INTERFACE ALERTS & CONTROLS
Current Measurement Accuracy (Amps) +/-1%

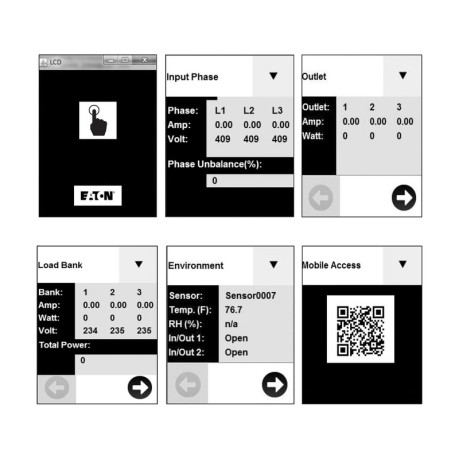

Front Panel LCD Display Touchscreen LCD reports NETWORK DATA (IP address Subnet Mask Gateway MAC Address Device Name Model Serial Number) INPUT PHASE DATA (Amperage Wattage Voltage per phase plus Unbalance percentage) LOAD BANK DATA (Amperage Wattage Voltage per load bank plus total PDU output in watts) OUTLET DATA (Amperage Wattage per outlet) CONFIGURATION DATA (Listing of current configuration settings) ENVIRONMENTAL DATA (Reports data and status of E2 sensor modules; Sensor options are available for temperature and humidity plus input and output dry contacts) MOBILE ACCESS (Generates a unique QR code to view reported PDU details on a mobile device)
LED Indicators One LED for each output receptacle offers power availability information: GREEN (Power ON load bank capacity <80%) YELLOW (Power ON load bank capacity >80%) RED (Power OFF/undervoltage) RED FLASHING (Power OFF/breaker trip) LED OFF (Power OFF)
Power Measurement Accuracy (Watts) +/-1%
Reported Load Segments Reports input current per phase (L1 L2 L3) plus output current for each output load bank (20A balanced max per banks B1-B3) and individual output receptacle (1-30); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds light-gray outlets (B1); L2-L3 feeds black outlets (B2); L3-L1 feeds dark-gray outlets (B3)
Switches LX Platform Interface: Recessed reset switch for interface reboot and factory reset
Voltage Measurement Accuracy (Volts) +/-1%
Details
Category Power Distribution Units (PDUs)
Environmental
Operating Temperature Range 32 to 122F (0 to 50C)
Relative Humidity 5% to 95% non-condensing
Storage Temperature Range -22 to 140F (-30 to 60C)
Operating Elevation 0-10000 ft. (0-3000 m)
Input
Input Cord Length (ft.) 6
Input Cord Length (m) 1.83
Input Phase 3-Phase
Maximum Input Amps 24
Maximum Input Amps Details Agency de-rated to 24A continuous
PDU Input Voltage 200; 208; 220; 230; 240
PDU Plug Type NEMA L21-30P
Recommended Electrical Service Three-phase 30A 200-240V service
Output
Customized Load Management Receptacles Each outlet is individually controllable via remote interface
Frequency Compatibility 50 / 60 Hz
Output Capacity Details 10kW (240V) 9.6kW (230V) 9.1kW (220V) 8.6kW (208V) 8.3kW (200V) total capacity; 13.9A max per breakered outlet bank; 12A max per C13 outlet
Output Nominal Voltage 200-240V

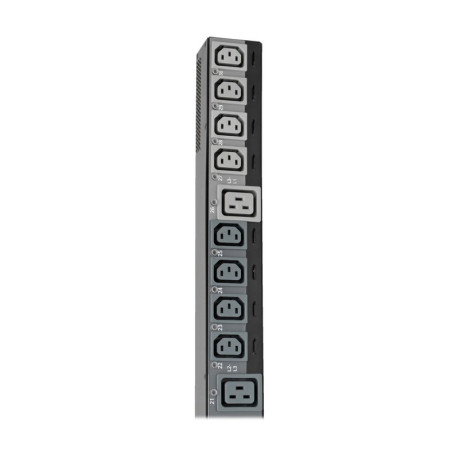

Output Receptacles (24) C13; (6) C19
Overload Protection Three 20A circuit breakers one per output load bank
Physical
PDU Form Factor Vertical (0U)
Shipping Dimensions (hwd / cm) 17.50 x 24.51 x 192.71
Shipping Dimensions (hwd / in.) 6.89 x 9.65 x 75.87
Unit Dimensions (hwd / cm) 177.8 x 5.5 x 7.3
Unit Dimensions (hwd / in.) 70.000 x 2.170 x 2.860
Unit Weight (kg) 7.51
Unit Weight (lbs.) 16.55
Form Factors Supported Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
Material Of Construction Metal
Rack Height 0U
Shipping Weight (kg) 12.28
Shipping Weight (lbs.) 27.08
Warranty
Warranty/Returns 30 Days
