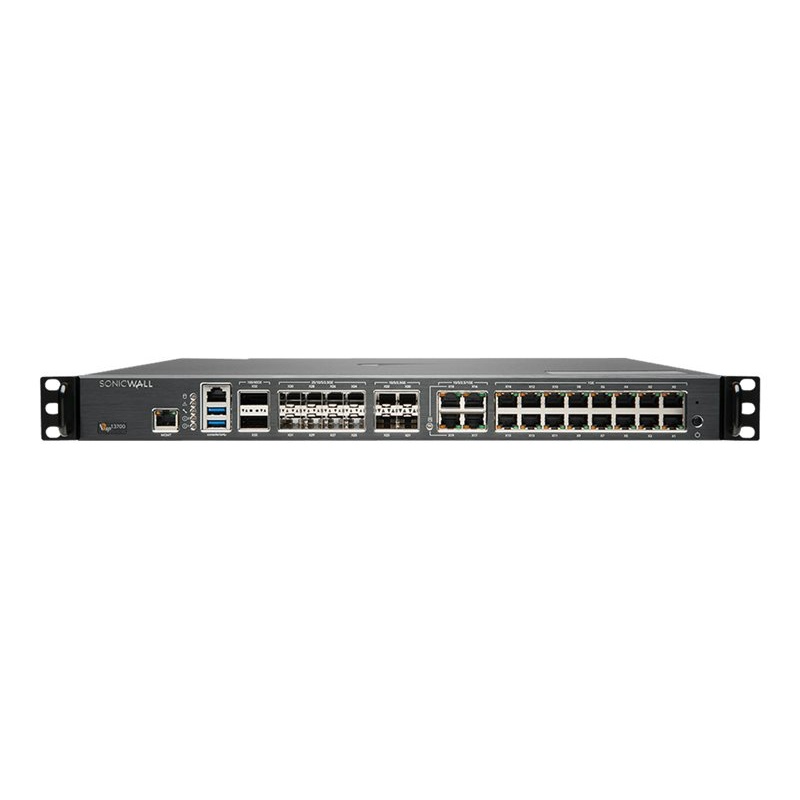

SonicWall NSSP 13700 High Availability Base Appliance (Main Unit Required)
Add to Cart for Price
Condition:New
Availability:In Stock
- Networking
- Network Security
- SonicWall
- NSSP Series
- NSSP 13700
- Appliances
- Search
- SonicWall NSSP 13700 High Availability Base Appliance (Main Unit Required)
The SonicWall NSsp 13700 High Availability (HA) Unit is a dedicated solution designed to ensure seamless failover and uninterrupted security for enterprise networks. Engineered to work in tandem with a primary NSsp 13700 firewall, this 1U rackmount appliance is ideal for large-scale, mission-critical environments. It provides real-time synchronization and redundancy, ensuring continuous protection and business continuity in the event of system or hardware failure. The NSsp 13700 HA supports multiple high-speed interfaces, including 10GbE, 25GbE, and 40GbE, and runs on SonicOS 7.0, offering advanced networking capabilities such as secure SD-WAN, dynamic routing, high-speed VPN, and layer 4?7 availability.
This high-availability unit seamlessly integrates with SonicWall Switches, SonicWave Access Points, and Capture Client, providing a comprehensive security solution. It offers centralized, intuitive management through a single-pane-of-glass interface, making it easy to monitor and control network security. Designed to be deployed alongside a primary NSsp 13700, the HA unit does not operate as a standalone firewall but enhances the resilience and reliability of your network infrastructure. With its robust features and integration capabilities, the SonicWall NSsp 13700 HA Unit is a critical component for maintaining the security and performance of enterprise networks.
| Additional Features | |
| Features | Deep Packet Inspection (DPI), firewall protection, web threat protection, URL filtering, Intrusion Prevention System (IPS), VPN support, Dead Peer Detection (DPD), DHCP relay, DHCP server, DSCP Marking, IPSec NAT-Traversal (NAT-T), LDAP support, NAT support, PAT support, Quality of Service (QoS), RADIUS support, routing, Stateful Packet Inspection (SPI), DDos attack prevention, IPv6 support, IPv4 support, DNS proxy, Jumbo Frames support, VLAN trunking, port mirroring, Inbound Load Balancing, Outbound Load Balancing, bandwidth control, Syslog support, IPFIX, NetFlow, Stateful switchover (SSO), anti-malware protection, 3 fans, Real-Time Deep Memory Inspection (RTDMI), Zero-touch provisioning (ZTP), anti-virus protection, Common Access Card (CAC) reader support |
| Capacity | |
| DPI connections | 22000000 |
| DPI SSL connections | 2000000 |
| IPSec VPN clients | 2000 (maximum 6000) |
| Single Sign-On (SSO) users | 100000 |
| SPI connections | 25000000 |
| SSL VPN licenses | 2 (maximum 3000) |
| Virtual interfaces (VLANs) | 1024 |
| VPN tunnels (site-to-site) | 12000 |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 32.85 lbs |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Max Operating Temperature | 104 ??F |
| Min Operating Temperature | 32 ??F |
| Expansion / Connectivity | |
| Interfaces | 2 x 40Gb Ethernet/100Gb Ethernet - QSFP28 ; 8 x 2.5/5/10/25 Gigabit Ethernet - SFP28 ; 4 x 2.5/5/10 Gigabit Ethernet - SFP+ ; 4 x 1/2.5/5/10Gbase-T - RJ-45 ; 16 x 1000Base-T - RJ-45 ; 1 x console - RJ-45 ; 1 x management - RJ-45 ; 2 x USB 3.0 - Type A |
| IP Telephony | |
| IP Telephony Features | VoIP gatekeeper support, VoIP outbound bandwidth management |
| VoIP Protocols | SIP, H.323 v1, H.323 v2, H.323 v3, H.323 v4, H.323 v5 |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, LVD, RoHS, C-Tick, VCCI Class A, MSIP Class A, KCC Class A, UL, cUL, TUV GS, CB, WEEE, REACH, ANATEL, BSMI, EMC, FIPS 140-2 Level 2, ICSA Antivirus, ICSA Firewall certified, VPNC certified, Mexico CoC, Common Criteria, UC APL |
| Networking and Systems | |
| Authentication Method | LDAP, XAUTH authentication, RADIUS, internal user database |
| Processor / Memory / Storage | |
| Hard Drive | SSD 1 TB x 1 |
| Hard Drive (2nd) | SSD - 512 GB x 1 - M.2 |
| Security & Encryption | |
| Encryption Algorithm | DES, Triple DES, 128-bit AES, 192-bit AES, 256-bit AES, SHA-1, MD5, ISAKMP, IKE, TLS 1.3 |
| Software / System Requirements | |
| OS Provided | SonicOS 7.0.1 |
| Details | |
| Series | NSSP Series |
| Warranty/Returns | 30 Days |
| Manufacturer | SonicWall |
| General | |
| Depth | 12.8 in |
| Device Type | Security appliance |
| Height | 1.8 in |
| Height (Rack Units) | 1U |
| Weight | 20.06 lbs |
| Width | 16.9 in |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet |
| Form Factor | Rack-mountable |
| Network / Transport Protocol | TCP/IP, ICMP/IP, IPSec, PPPoE, L2TP, DHCP, PPTP, UDP/IP |
| Remote Management Protocol | HTTP, HTTPS, SNMP 2, SNMP 3, CLI, SSH |
| Routing Protocol | BGP, OSPF, RIP-1, RIP-2, static IP routing, policy-based routing (PBR) |
| Performance | |
| Application throughput | 57 Gbps |
| Connection rate | 280000 connections per second |
| Firewall throughput | 60 Gbps |
| IPS throughput | 48 Gbps |
| Threat prevention throughput | 45.5 Gbps |
| TLS/SSL inspection and decryption throughput | 16.5 Gbps |
| VPN throughput | 29 Gbps |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 181.2 Watt |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 350 Watt |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
