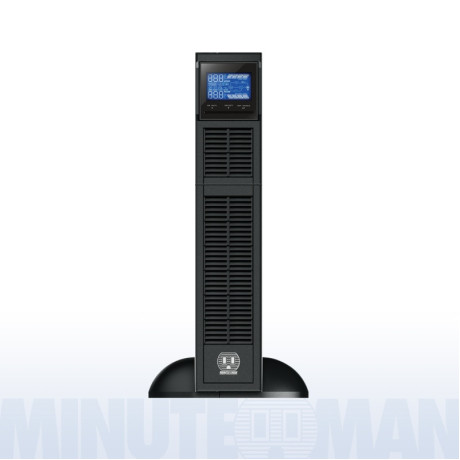

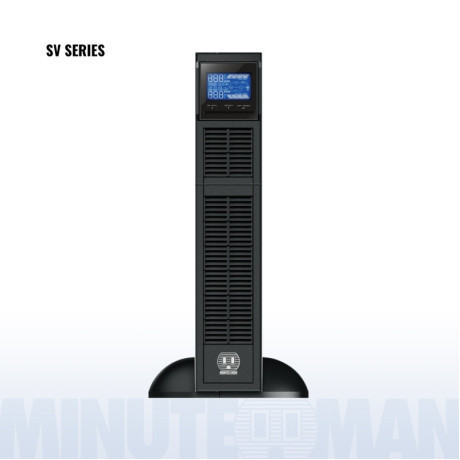

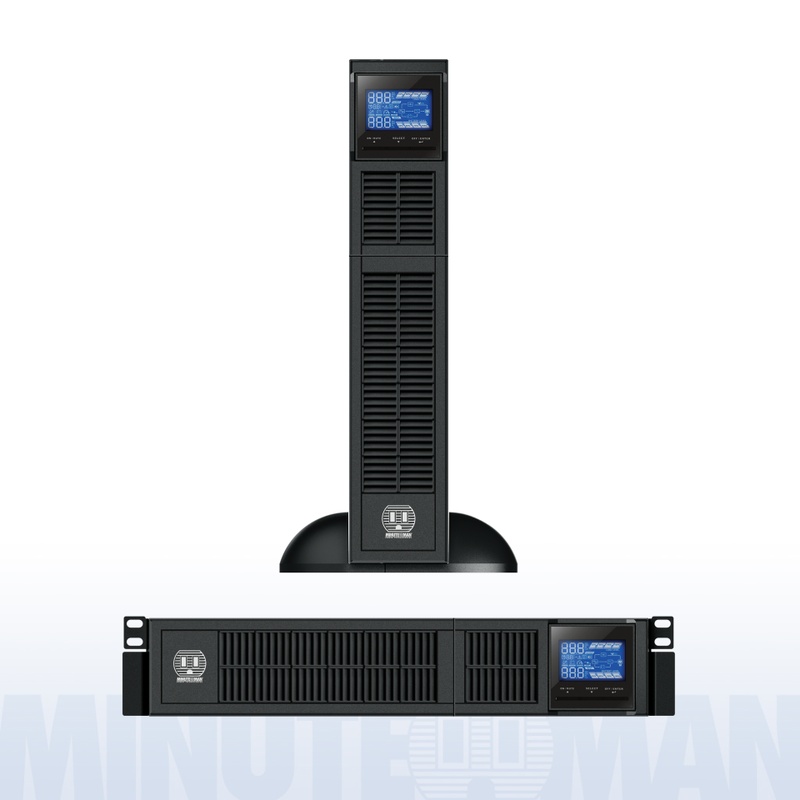

The Minuteman SV1500RT230 UPS Online System 3kVA/2700W 230VAC 2U Rack/Tower provides robust, uninterruptible power protection for critical applications, ensuring consistent, high-quality power delivery even during outages. Its true online double conversion technology isolates equipment from all power disturbances, delivering pure sine wave output.
This system is engineered for exceptional reliability, featuring hot-swappable batteries for easy maintenance without disrupting connected loads. It offers flexible rack/tower installation and includes advanced communication options like RS-232, USB, and optional SNMP, alongside a dedicated remote Emergency Power Off (EPO) port for enhanced safety. Comprehensive RJ45 surge protection further ensures network integrity.
| Capacity |
| VA |
3000VA |
| Watts |
2700W |
| Output Receptacles |
| Battery & Surge-protected |
(6) IEC320 C13 and (1) IEC320-C19 |
| Runtime |
| Full Load |
4 min |
| Warranty & Compliance Information |
| Country of Origin |
Vietnam |
| UL/CSA Approved |
cTUVus, (conforms to UL1778) |
| Warranty/Returns |
30 Days |
| Electrical |
| Power Factor |
0.9 |
| Voltage |
230V |
| General Information |
| Manufacturer |
Minuteman |
| Manufacturer Model Number |
SV1500RT230 |
| Manufacturer Part Number |
90010104 |
| Product Name |
Minuteman SV1500RT230 UPS Online System 3kVA/2700W 230VAC 2U Rack/Tower |
| Product Series |
SV Series Series |
| Product Type |
UPS Online System |
| Input |
| Connector |
IEC320 C20 |
| Physical |
| Master Pack Quantity |
1 |
| Pallet Quantity |
55 |
| Shipping Dimensions LxWxH (in) |
8.7" x 74.4" x 4.3" |
| Unit Dimensions LxWxH (in) |
2.2" x 70.0" x 1.7" |
| Unit Weight (lbs) |
20 lbs. |
