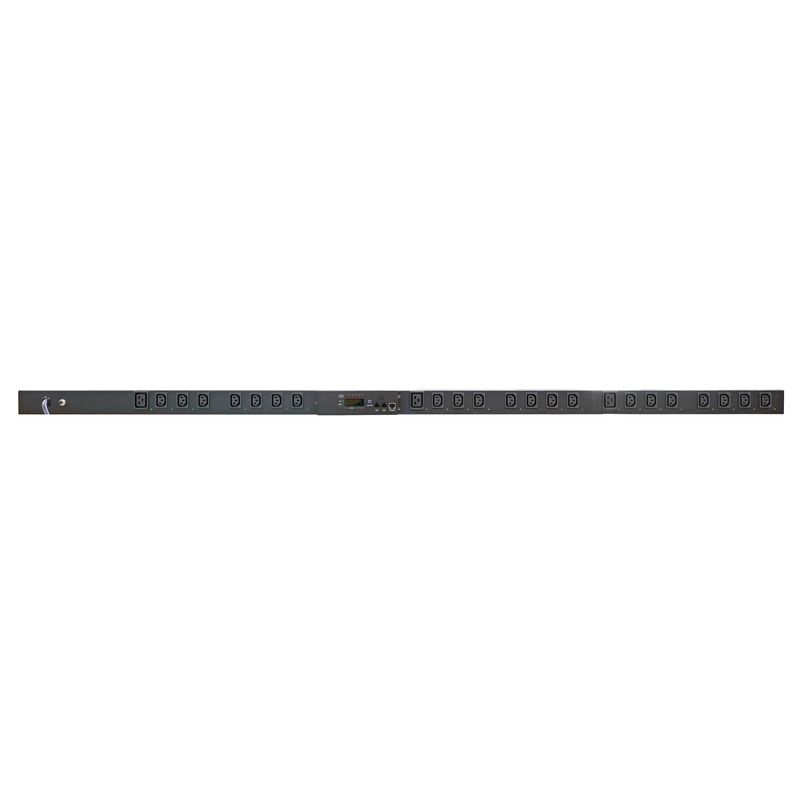

The Minuteman RPM2024N1LCD-L20P RPM Switched PDU 24-outlet 120V 20A IPv6 is an advanced IP-addressable Remote Power Manager from the RPM Series. Designed for 0U vertical mounting, this unit provides comprehensive power distribution and control for critical equipment across 24 NEMA 5-15/20 receptacles.
This system ensures robust power management and reliability with remote on/off/reset capabilities for each individual receptacle, complemented by a local LCD display for immediate status updates. It supports IPv4, IPv6, and SNMPv3, offering secure management and alarm notifications, while RADIUS authentication enhances network security. With a 20-amp breaker and a 16-amp maximum load, it reliably distributes power and includes optional support for temperature and humidity probes to monitor environmental conditions.
| Connectivity |
| Power Cord |
10-ft with IEC320 C20 plug |
| Monitoring |
| Optional Support |
Temp/humidity probe |
| Network |
| Protocols |
IPv4, IPv6, SNMPv3 |
| Outlets |
| Receptacle Type |
(24) NEMA 5-15/20 |
| Total Outlets |
24 |
| Power Management |
| Control |
Remote on/off/reset of individual receptacles |
| User Interface |
| Display |
Local LCD |
| Warranty & Compliance Information |
| Country of Origin |
Taiwan |
| UL/CSA Approved |
ETL, CE Certified |
| Warranty/Returns |
30 Days |
| Electrical |
| Breaker |
20-amp |
| Input Voltage |
100-120VAC |
| Max Load |
16-amp |
| Features |
| Alerts |
Alarm notification |
| General |
| Features |
IP-addressable |
| Type |
Remote Power Manager (RPM) |
| General Information |
| Manufacturer |
Minuteman |
| Manufacturer Model Number |
RPM2024N1LCD-IEC |
| Manufacturer Part Number |
90001057 |
| Product Name |
Minuteman RPM2024N1LCD-IEC RPM Switched PDU 24-outlet 120V 20A IPv6 |
| Product Series |
RPM Series |
| Product Type |
Remote Power Manager |
| Physical |
| Master Pack Quantity |
1 |
| Mounting |
0U vertical |
| Pallet Quantity |
1 |
| Shipping Dimensions LxWxH (in) |
36" x 36" x 30.1" |
| Unit Dimensions LxWxH (in) |
28.7" x 17.2" x 12.0" |
| Unit Weight (lbs) |
344 lbs. |
| Security |
| Authentication |
RADIUS |
